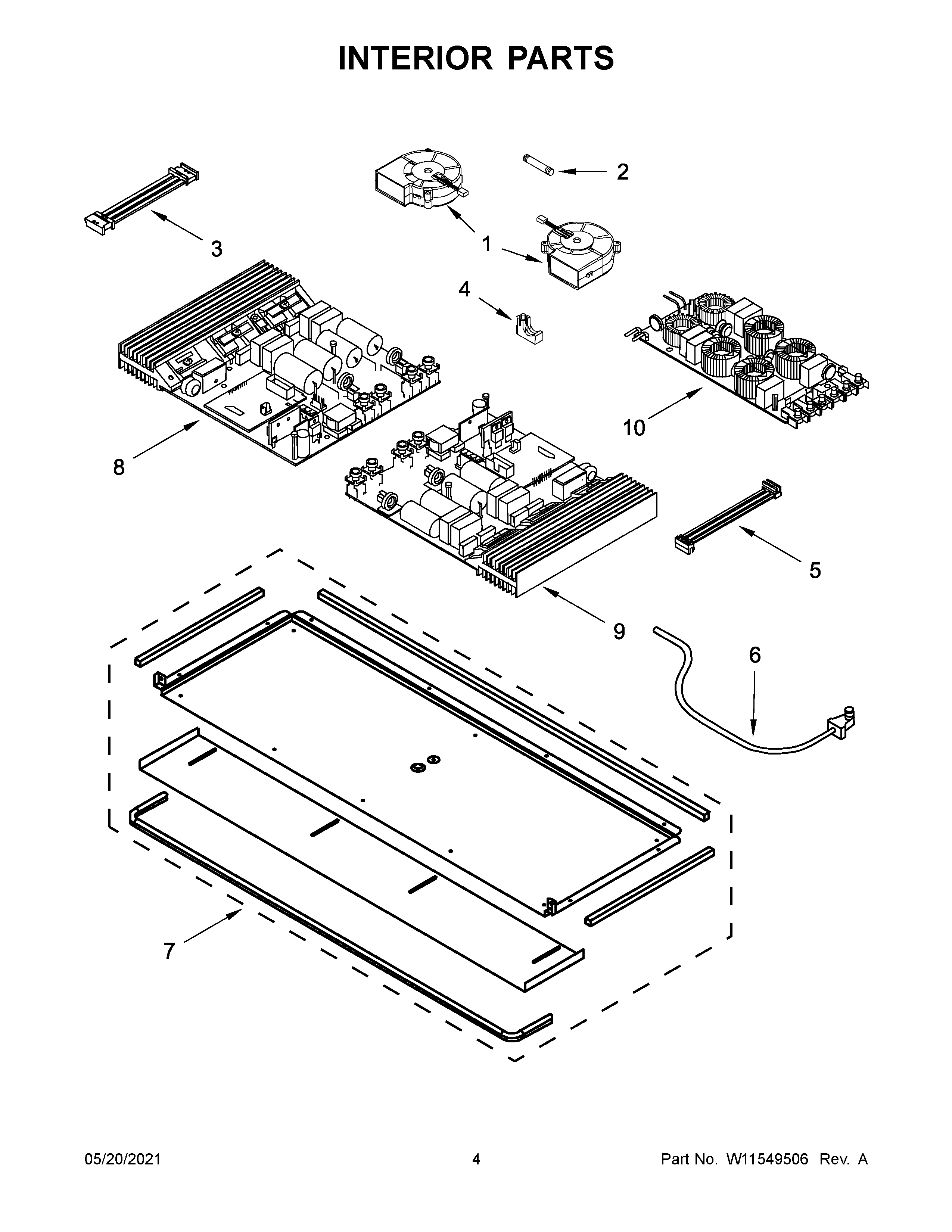

KICU509XBL01 03 – INTERIOR PARTS

KICU509XBL01 03 – INTERIOR PARTS

Written by

in

KICU509XBL01 03 – INTERIOR PARTS

Products

PositionProduct
1W10328381 Whirlpool Fan Blower Assembly
1AW10328378 Whirlpool Blower Fan Assembly
2WPW10328492 Whirlpool Thermal Fuse
3W11428265 Whirlpool Wire Harness
4W10328401 Whirlpool Mounting Bracket
5W10396610 Whirlpool Wire Harness
6W10396611 Whirlpool Wire Harness
7BOX, BURNER
8UNIT, POWER (LEFT)
9UNIT, POWER (RIGHT)
10POWER SUPPLY / FILTER CONTROL
