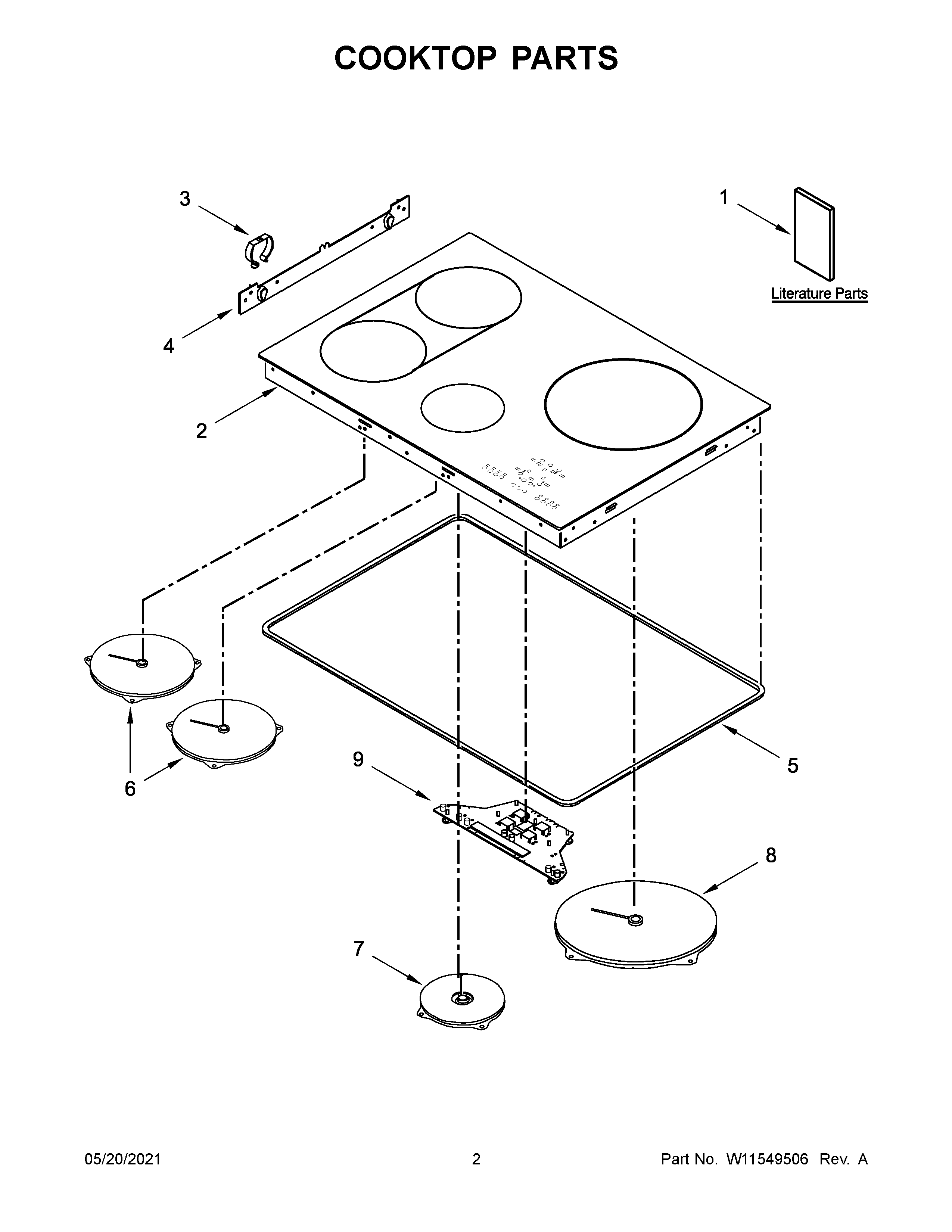

KICU509XSS01 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10328499 Whirlpool Bracket Mounting
1ATECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10396824 Whirlpool Cooktop
2AWPW10396826 Whirlpool Cooktop Support
3W10810497 Whirlpool Spring
4WPW10328377 Whirlpool Bracket Support
5WPW10237005 Whirlpool Cooktop Gasket
6WPW10396548 Whirlpool Hot Plate
7W11672508 Whirlpool Hotplate Assembly
8WPW10396549 Whirlpool Hot Plate
9WPW10396615 Whirlpool Display Assembly
