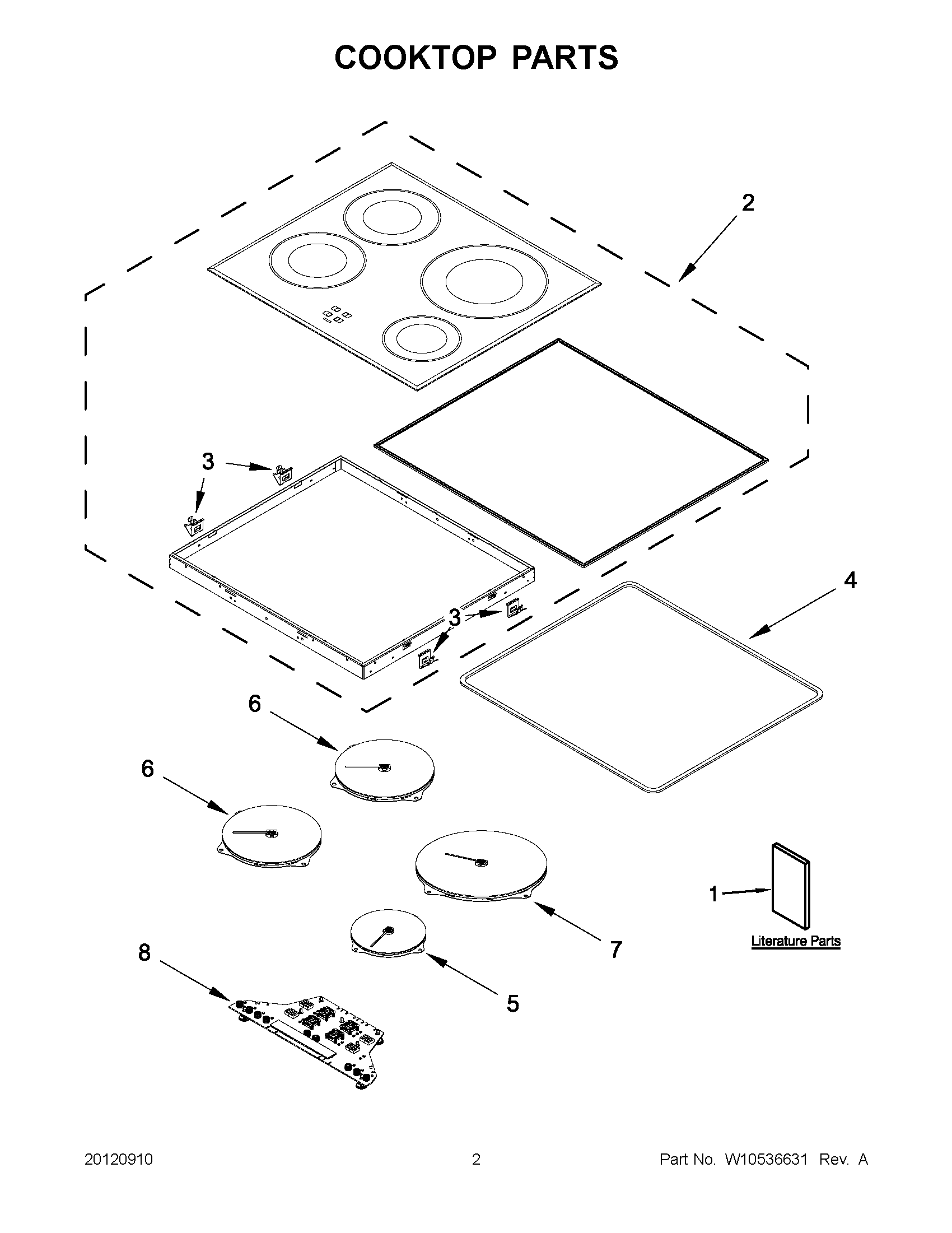

KICU540BSS0 01 – COOKTOP PARTS

Written by

Products

Position	Product
1	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	COOKTOP, GLASS (STAINLESS)
3	SPRING, CLAMPING
4	WPW10237005 Whirlpool Cooktop Gasket
5	W11672508 Whirlpool Hotplate Assembly
6	HOTPLATE, LEFT FRONT AND LEFT REAR (HOTPLATE 180MM 2500/1800 WATTS)
7	WPW10328391 Whirlpool Hot Plate
8	USER INTERFACE BOARD
