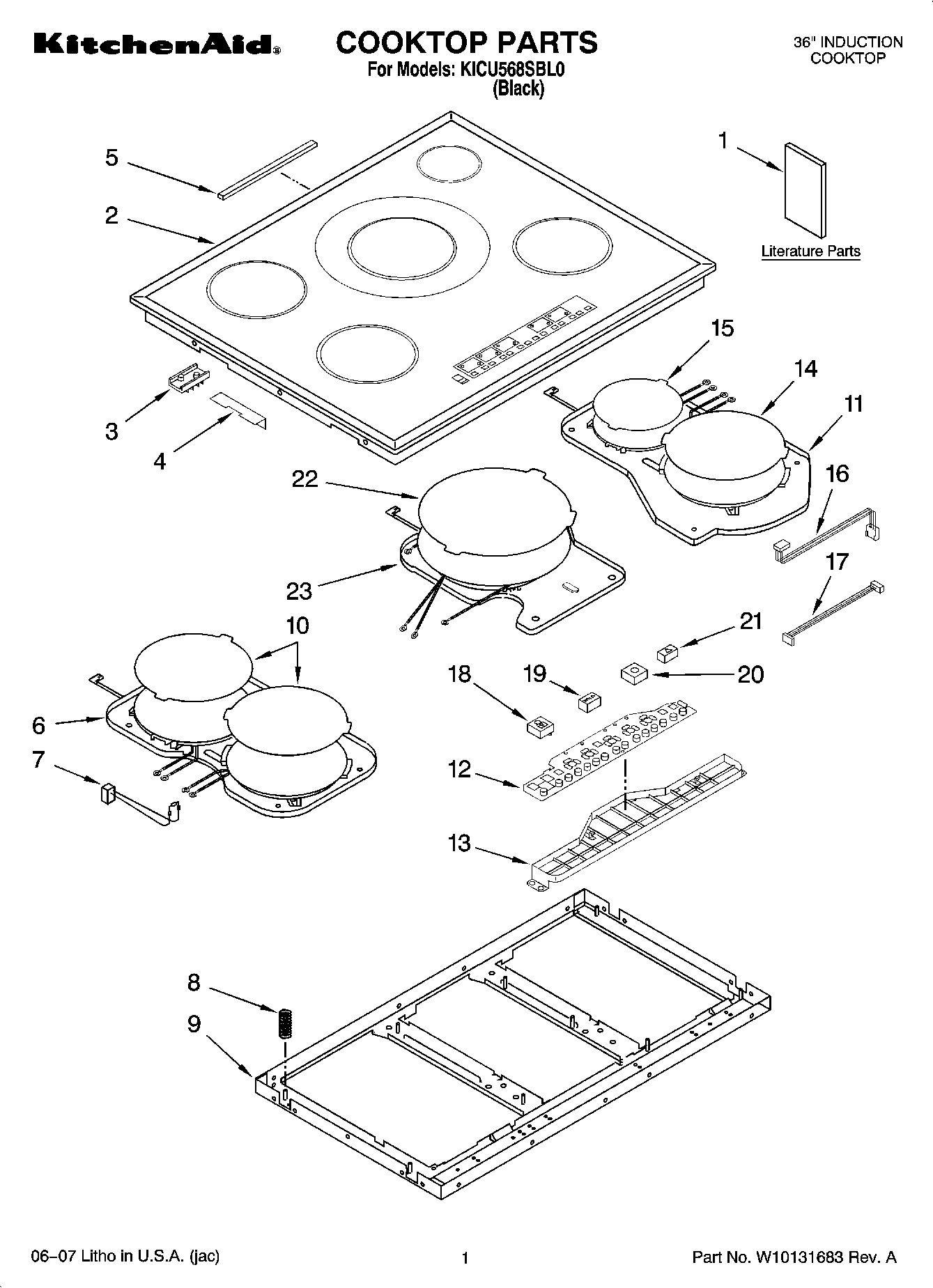

KICU568SBL0 01 – COOKTOP PARTS

Products

Position	Product
1	Owners Manual
1	Instruct, Install
2	Cooktop, Glass
3	Bracket, Mntg (Kit)
4	Bracket, Mntg (Kit)
5	Seal
6	Hotplate (180-180)
7	Harness, Wire
8	Spring
9	Box, Burner
10	Cover (Mica 180)
11	Hotplate (210-150)
12	Display
13	Bracket, Mounting
14	Cover (Mica 210)
15	Cover (Mica 80)
16	Harness, Wire
17	Harness, Wire
18	Display (Lock)
19	W10122344 Whirlpool Display Assembly
20	W10122343 Whirlpool Display
21	Display (Power ON)
22	Cover (Mica 280)
23	Hotplate (280)
