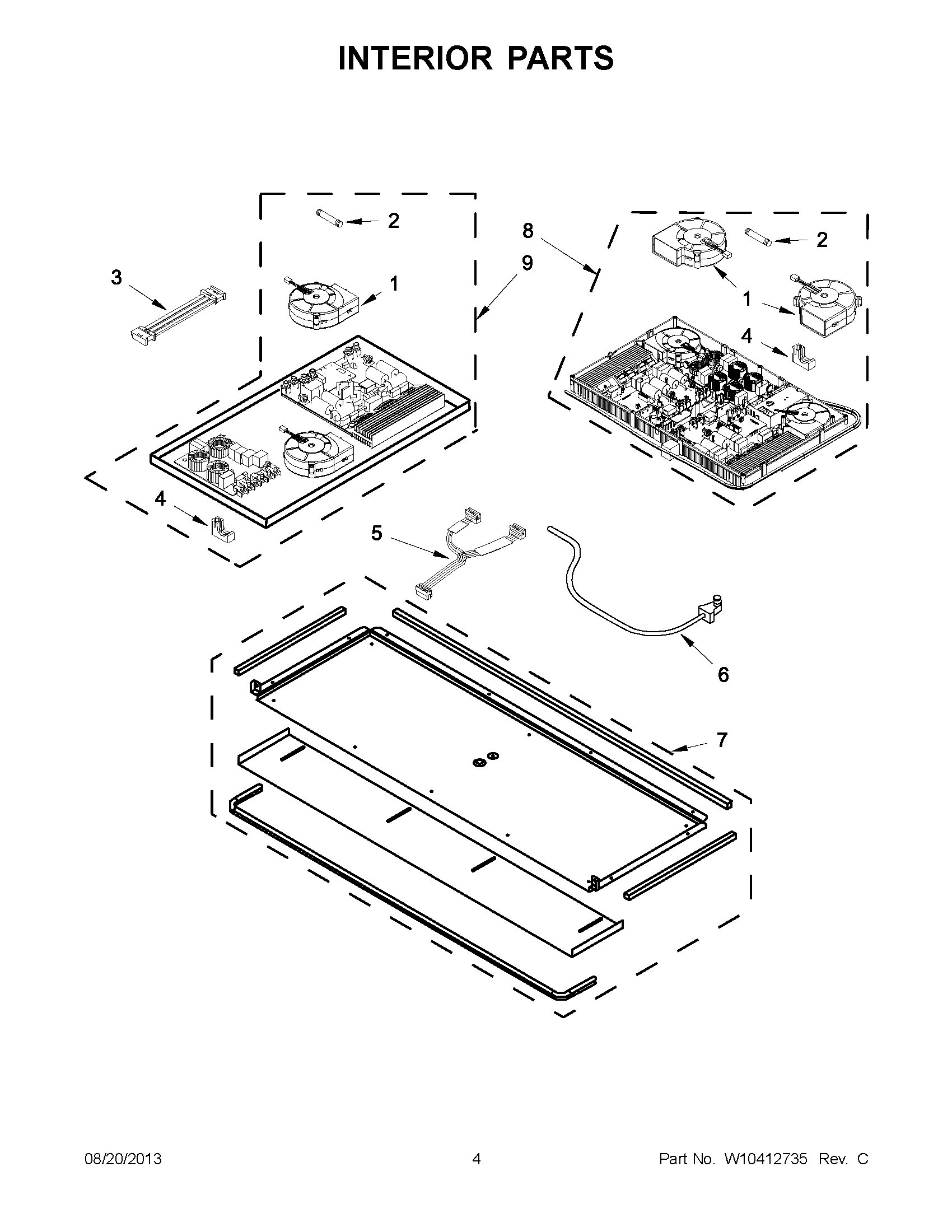

KICU569XSS00 03 – INTERIOR PARTS

KICU569XSS00 03 – INTERIOR PARTS

Written by

in

KICU569XSS00 03 – INTERIOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10310006A Whirlpool Cooktop Adhesive, Marble Countertop
NIW10328499 Whirlpool Bracket Mounting
1W10328381 Whirlpool Fan Blower Assembly
1W10328378 Whirlpool Blower Fan Assembly
2WPW10328492 Whirlpool Thermal Fuse
3W11428265 Whirlpool Wire Harness
4W10328401 Whirlpool Mounting Bracket
5W11676565 Whirlpool Wire Harness
6WPW10396788 Whirlpool Wire Harness Assembly
7W10432828 Whirlpool Burner Box
8MODULE, SSX
9MODULE, SS
