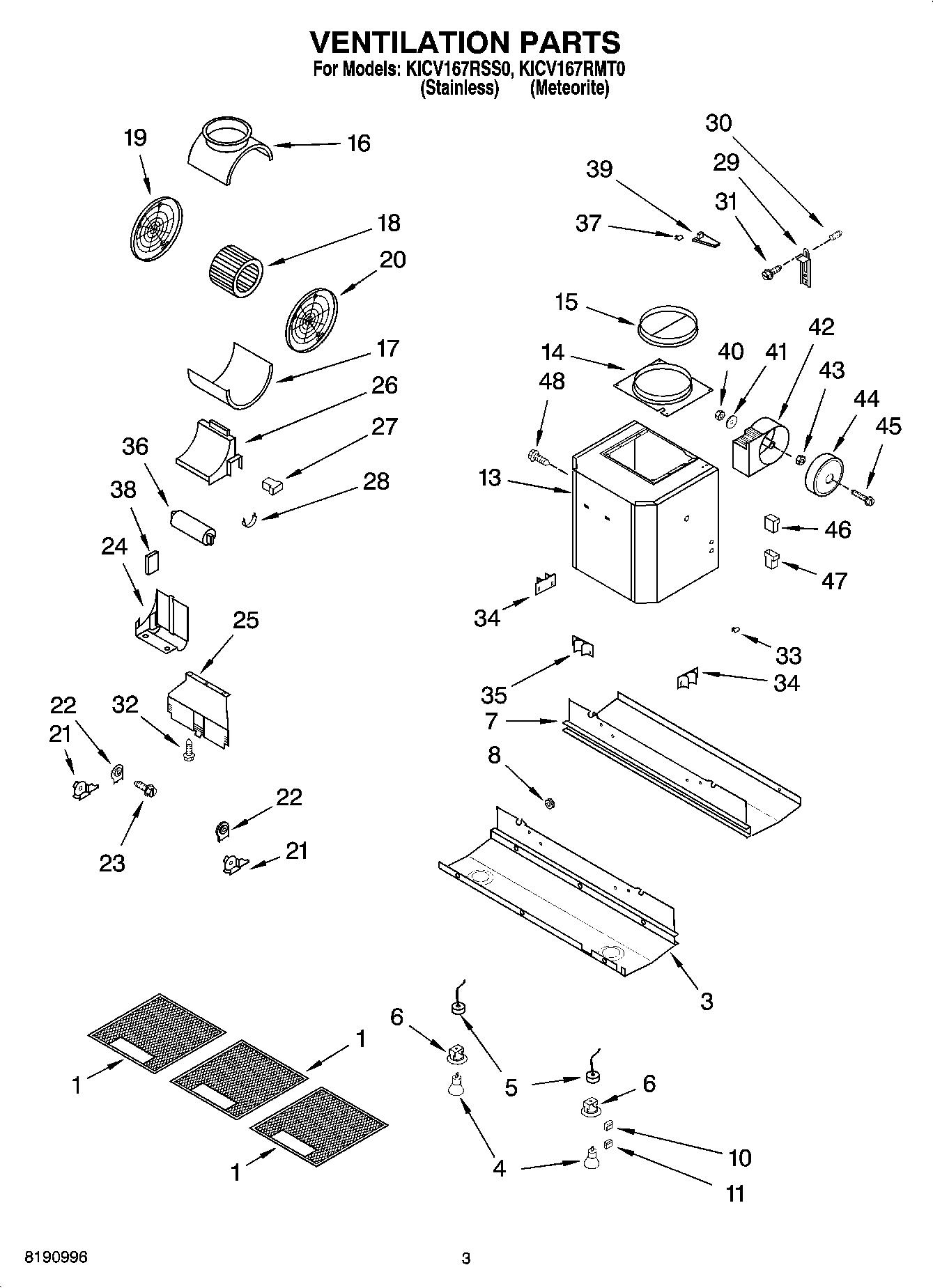

KICV167RMT0 02 – VENTILATION PARTS

Products

Position	Product
1	WPW10252087 Whirlpool Range Hood Grease Filter
3	Support, Light (Stainless)
3	Support, Light (Meteorite)
4	WPW10252088 Whirlpool Light Bulb
5	Holder, Bulb (6)
6	Support, Bulb (6)
7	Support, Filter (Meteorite)
7	Support, Filter (Stainless)
8	Spacer (Cable Sleeve)
10	Connector, Male
11	Connector, Female
13	Housing
14	Extension, Flange
15	Damper
16	Housing, Upper
17	Housing, Lower
18	Motor, Blower
19	Support, Motor-SX
20	Support, Motor-DX
21	Bracket, Diffuser (Right)
21	Bracket, Diffuser (Left)
22	Bracket, Flexible (Left-SX)
22	Bracket, Flexible (Right-DX)
23	Screw
24	Cover, Wire
25	Bracket, Mounting
26	Cover, Wire
27	Connector
28	Cover, Wire
29	Bracket, Mount (2)
30	Plug
31	Screw
32	SCREW
33	Clamp, Cable (2)
34	Cover
35	Cover
36	Capacitor
37	Clamp, Cable
38	Cover, Wire
39	Cover, Wire
40	NUT
41	WASHER
42	Blower
43	NUT
44	Transformer
45	SCREW
46	Connector, Female
47	Connector, Male
48	Pin, Securing
