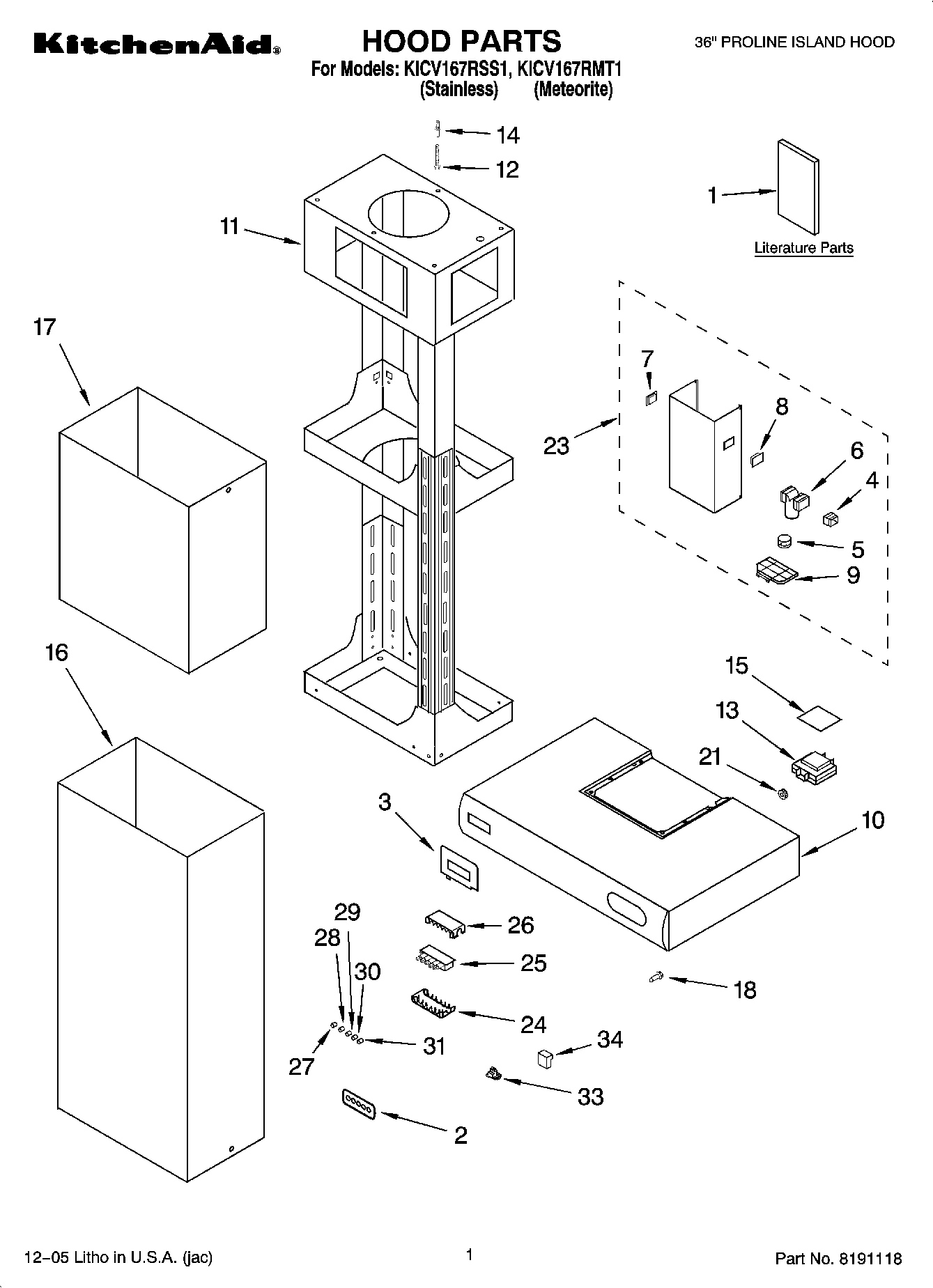

KICV167RSS1 01 – HOOD PARTS

Products

Position	Product
1	Instructions, Installation
1	Wiring Diagram
2	Bezel (Stainless)
2	Bezel (Meteorite)
3	Panel, Control
4	Duct, Air - Spacer
5	Duct, Air-Extnsion
6	Duct, Air
7	Air - Outlet (Left) (Stainless Model)
8	Air - Outlet (Right) (Stainless Model)
9	8285507 Whirlpool Range Hood Charcoal Filter
10	Casing Assembly (Stainless)
10	Casing Assembly (Meteorite)
11	Frame, Telescopic
12	Screw (4)
13	Box, Control
14	Anchor (4)
15	Cover, Wiring
16	Chimney, Lower Ducted (Meteorite)
16	Chimney, Lower Ducted (Stainless)
17	Chimney, Upper (Meteorite)
17	Chimney, Upper (Stainless)
18	Pin
21	Strain Relief
23	Ductless Kit (Not Included) (Meteorite)
23	Ductless Kit (Not Included) (Stainless)
24	Housing, Control
25	Control, Motor
26	Housing, Control
27	Button
28	Button
29	Button
30	Button
31	Button
33	Connector
34	40`` Stainless
34	Chimney Ext Kit
34	Connector, Wire
34	ACCESSORY PARTS
34	40`` Meterorite
