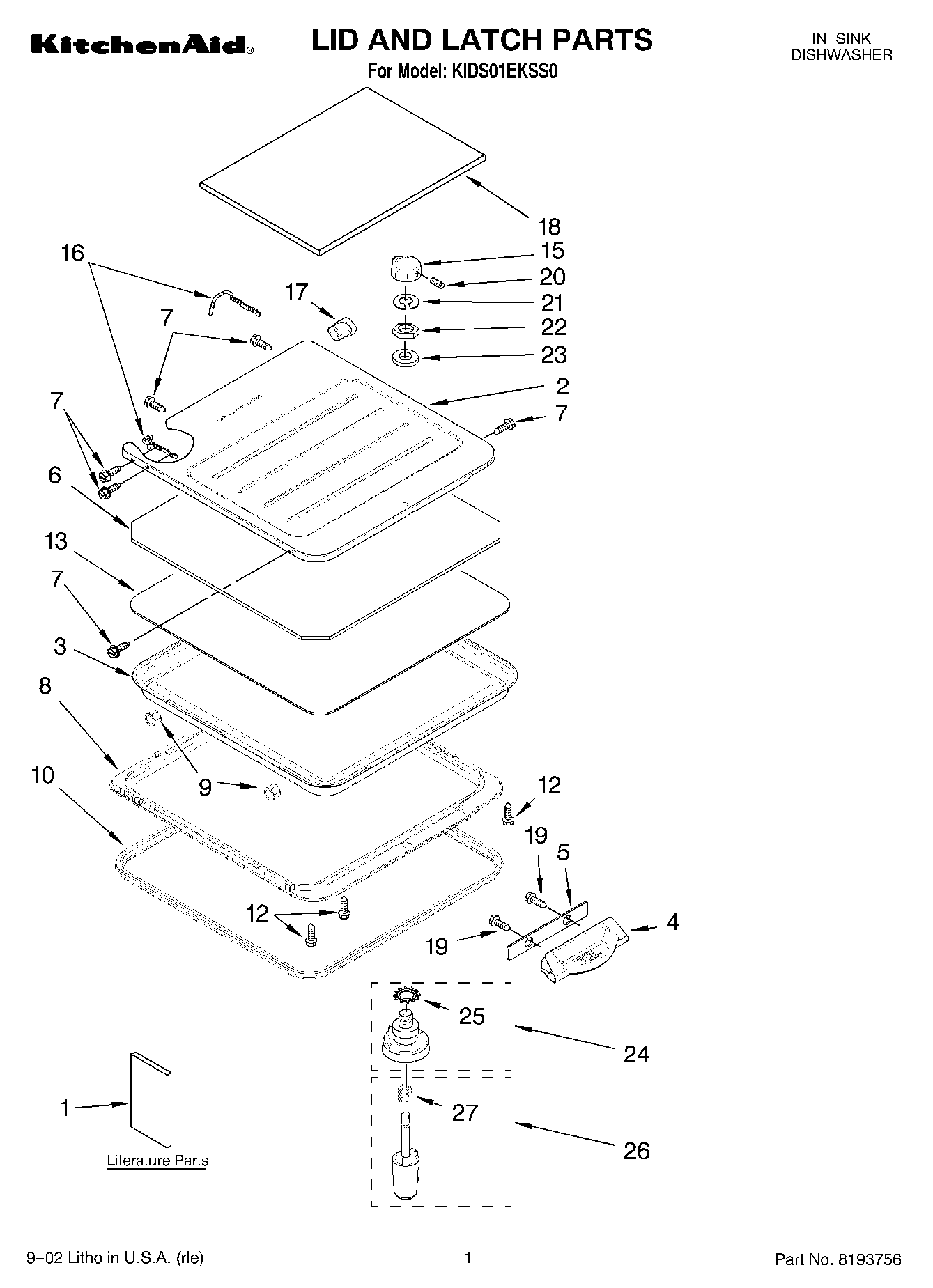

KIDS01EKSS0 01 – LID AND LATCH, LITERATUREadmin2025-04-26T11:57:05+00:00KIDS01EKSS0 01 – LID AND LATCH, LITERATURE
Products
| Position | Product |
|---|
| 1 | Literature Parts (Guide, Use & Care) |
| 1 | Literature PartsTech Sheet (English/French) |
| 1 | Literature Parts (Energy Guide) |
| 1 | Literature Parts (Instructions, Installation) |
| 2 | Lid, Outer |
| 3 | Lid, Inner |
| 4 | Cup, Detergent |
| 5 | Seal, Detergent Cup |
| 6 | Insulator, Sound Lid |
| 7 | SCREW |
| 8 | Retainer, Gasket |
| 9 | NUT |
| 10 | Gasket, Lid |
| 12 | SCREW |
| 13 | Mastic, Lid |
| 15 | Knob, Latch (Also Order Item 20) |
| 16 | Pin, Hinge (Left Hand) |
| 16 | Pin, Hinge (Right Hand) |
| 17 | Bearing, Lid Hinge (2) |
| 18 | Board, Cutting |
| 19 | W11631670 Whirlpool Screw |
| 20 | Screw, Set |
| 21 | E-Ring |
| 22 | WP33001443 Whirlpool Hex Nut |
| 23 | WASHER |
| 24 | Collar Assembly |
| 25 | WASHER |
| 26 | Cam Assembly |
| 27 | Spring, Torsion |
