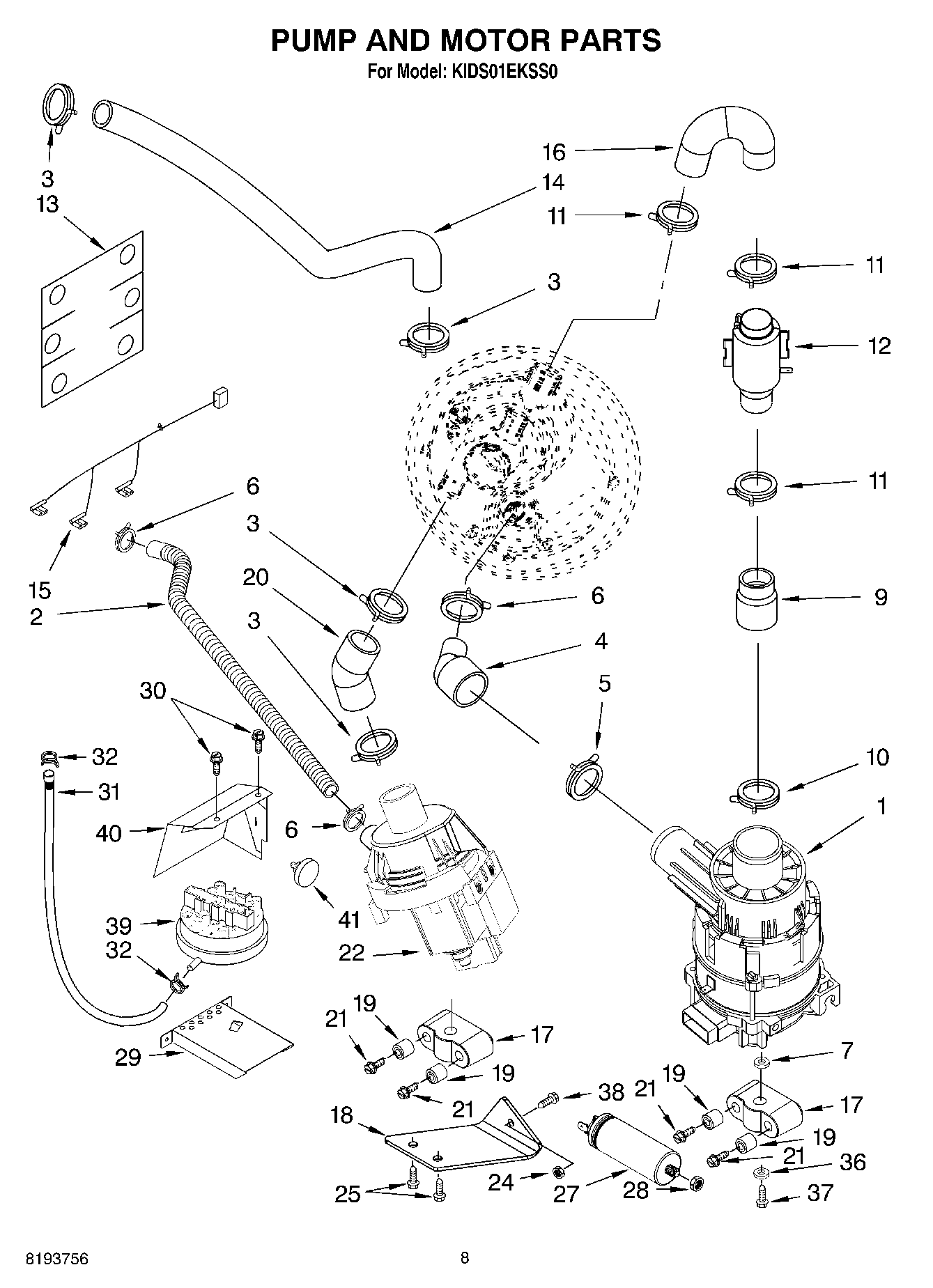

KIDS01EKSS0 05 – PUMP AND MOTORadmin2025-04-26T11:58:32+00:00KIDS01EKSS0 05 – PUMP AND MOTOR
Products
| Position | Product |
|---|
| 1 | Pump & Motor (Also Order Item 7) |
| 2 | Hose, Drain W/Check Valve |
| 3 | WP8269146 Whirlpool Dishwasher Clamp |
| 4 | Hose, Sump Wash Pump |
| 5 | Clamp, Hose |
| 6 | CLAMP, HOSE |
| 7 | Grommet, Bushing |
| 9 | Hose, Heater Wash Pump |
| 10 | W11622908 Whirlpool Dishwasher Clamp |
| 11 | WP285655 Whirlpool Hose Clamp |
| 12 | HEATER |
| 13 | Shield, Heater |
| 14 | Hose, Drain Air Gap |
| 15 | Wire Harness Heater |
| 16 | Hose Sump/Heater |
| 17 | Grommet, Motor |
| 18 | Bracket, Drain Pump |
| 19 | Sleeve, Grommet |
| 20 | Hose, Sump/Drain Motor |
| 21 | SCREW |
| 22 | Pump, Drain |
| 24 | WP3400029 Whirlpool Dishwasher Nut |
| 25 | Screw |
| 27 | CAPACITOR |
| 28 | Nut |
| 29 | Bracket, Pressure Switch |
| 30 | WP489069 Whirlpool Compactor Screw |
| 31 | Hose, Pressure Switch |
| 32 | Clamp, Hose (2) |
| 36 | W10903204 Whirlpool Refrigerator Washer |
| 37 | SCREW |
| 38 | SCREW |
| 39 | Switch, Pressure |
| 40 | Shield, Assembly |
| 41 | Spacer, Cabinet |
