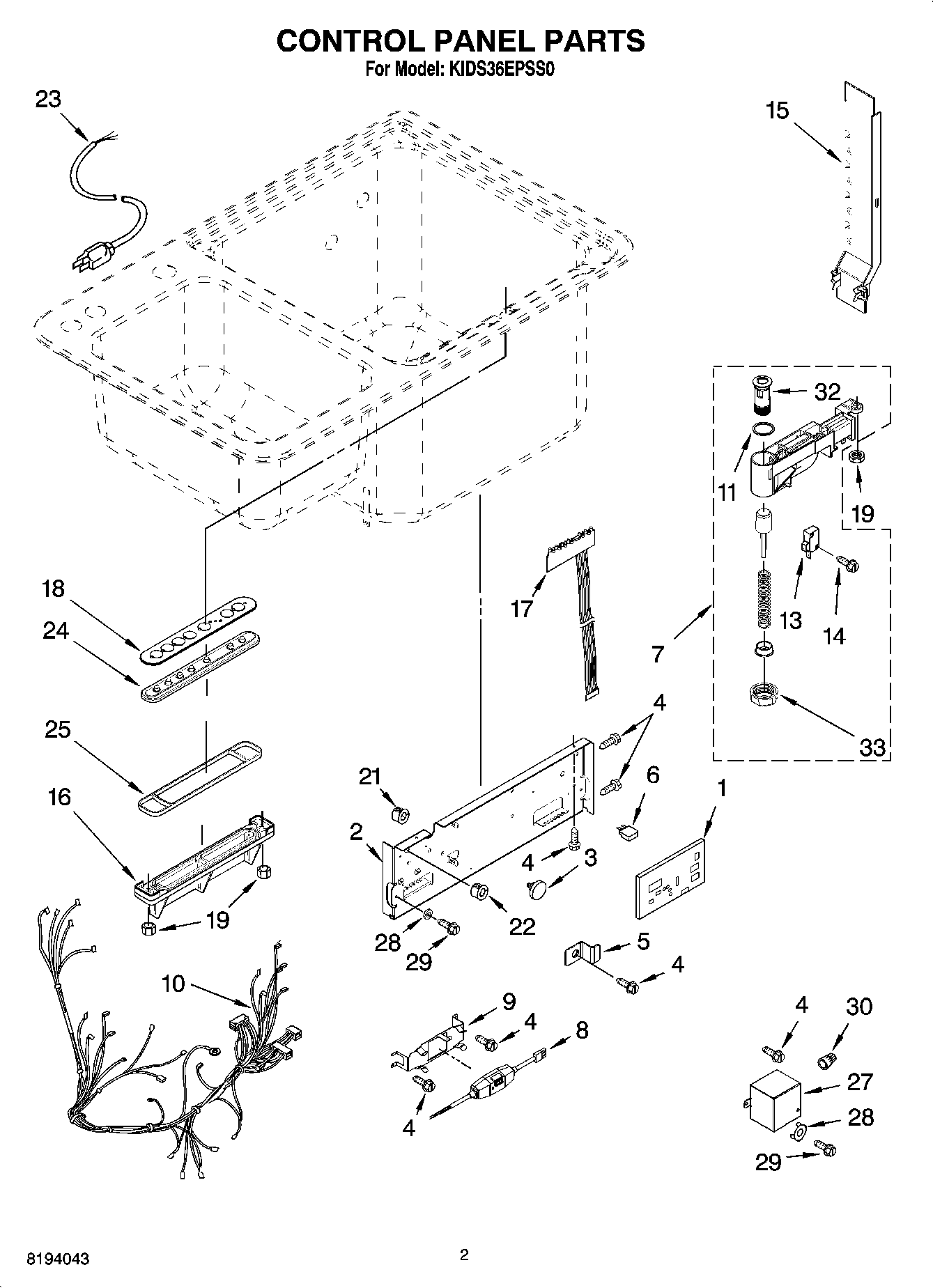

KIDS36EPSS0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:59:15+00:00KIDS36EPSS0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Control, Electronic (Also Order Item 6) |
| 2 | Brace, Cross |
| 3 | Spacer, Cabinet |
| 4 | WP489069 Whirlpool Compactor Screw |
| 5 | Bracket, Control |
| 6 | 675813 Whirlpool Thermal Fuse Kit |
| 7 | Latch Assembly |
| 8 | Ground Fault |
| 9 | Bracket, Ground Fault |
| 10 | Harness, Main |
| 11 | GASKET |
| 13 | Shield, Switch |
| 14 | WP3400412 Whirlpool Dishwasher Screw |
| 15 | Protector, Harness |
| 16 | Bracket, User Interface |
| 17 | Board, Interface |
| 18 | Insert |
| 19 | W10080180 Whirlpool Nut |
| 21 | BUSHING |
| 22 | BUSHING |
| 23 | 4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit |
| 24 | Spacer, User Interface |
| 25 | Gasket, User Interface |
| 27 | Cover, Terminal |
| 28 | WP3378128 Whirlpool Dishwasher Washer |
| 29 | WP3400014 Whirlpool Dishwasher Screw |
| 30 | Nut, Wire |
| 32 | Housing, Plunger Latch |
| 33 | Nut, Latch |
