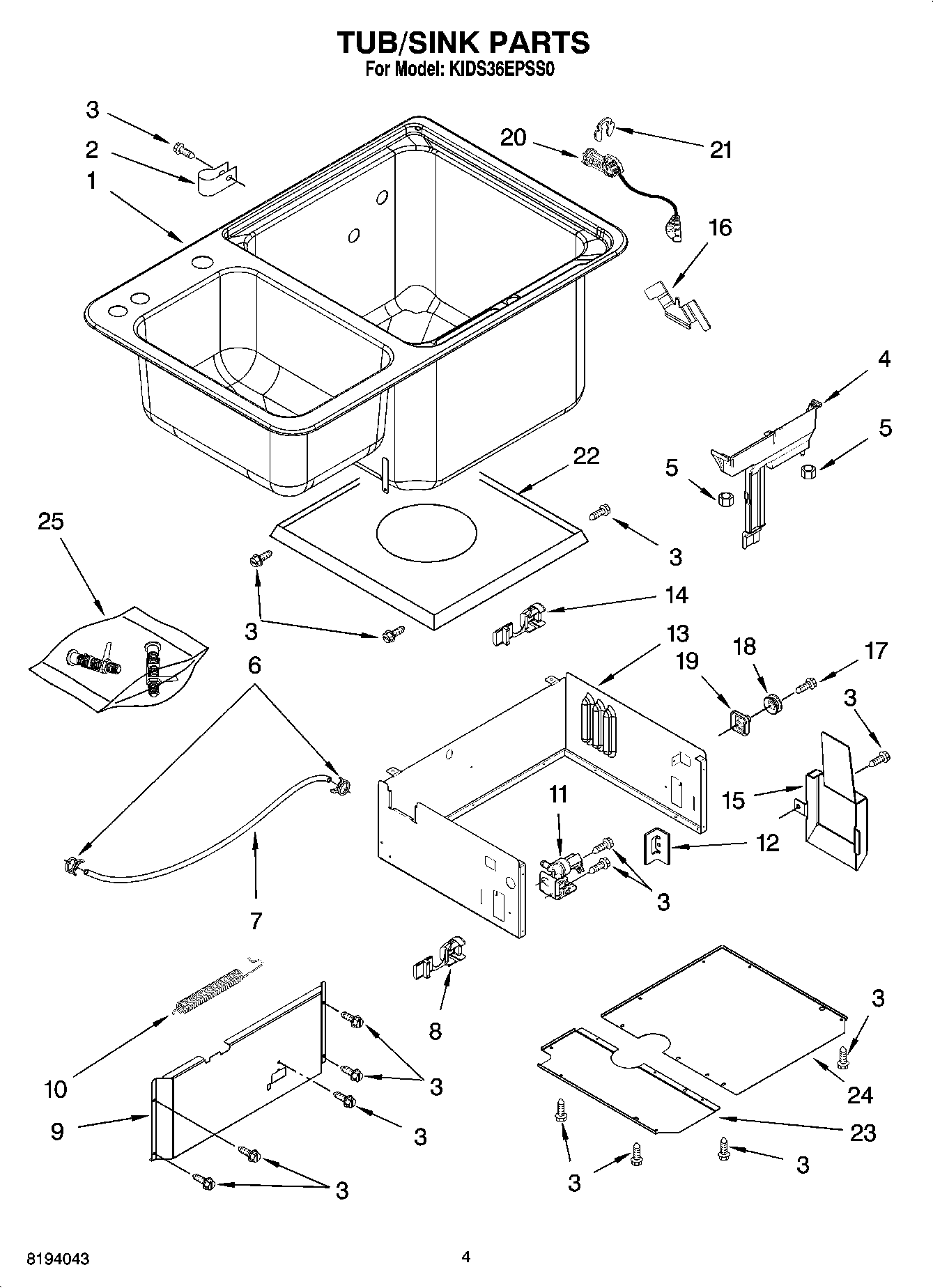

KIDS36EPSS0 03 – TUB/SINK PARTSadmin2025-04-26T11:57:03+00:00KIDS36EPSS0 03 – TUB/SINK PARTS
Products
| Position | Product |
|---|
| 1 | Tub/Sink Assembly |
| 2 | Clamp, Cable |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Cover, Enclosure |
| 5 | W10080180 Whirlpool Nut |
| 6 | WP596669 Whirlpool Hose Clamp |
| 7 | Hose, Water Inlet |
| 8 | Strain Relief |
| 9 | Cover, Access |
| 10 | Spring, Lid |
| 11 | Inlet, Water |
| 12 | Plate, Lid Counter Balance |
| 13 | Wrapper, U-Shape |
| 14 | Strain Relief |
| 15 | Cover, Lid Counter Balance |
| 16 | Guide, Rope Upper |
| 17 | WP3400074 Whirlpool Dishwasher Screw |
| 18 | Wheel |
| 19 | Mount, Wheel |
| 20 | Link, Lid Balance (Also Order Item 21) |
| 21 | C-Ring |
| 22 | Base Plate |
| 23 | Cover, Bottom Plumbing |
| 24 | Cover, Bottom Components |
| 25 | Miscellaneous Parts Bag (Includes 8 Each, Mounting Clips, Fasteners & Clamps) |
