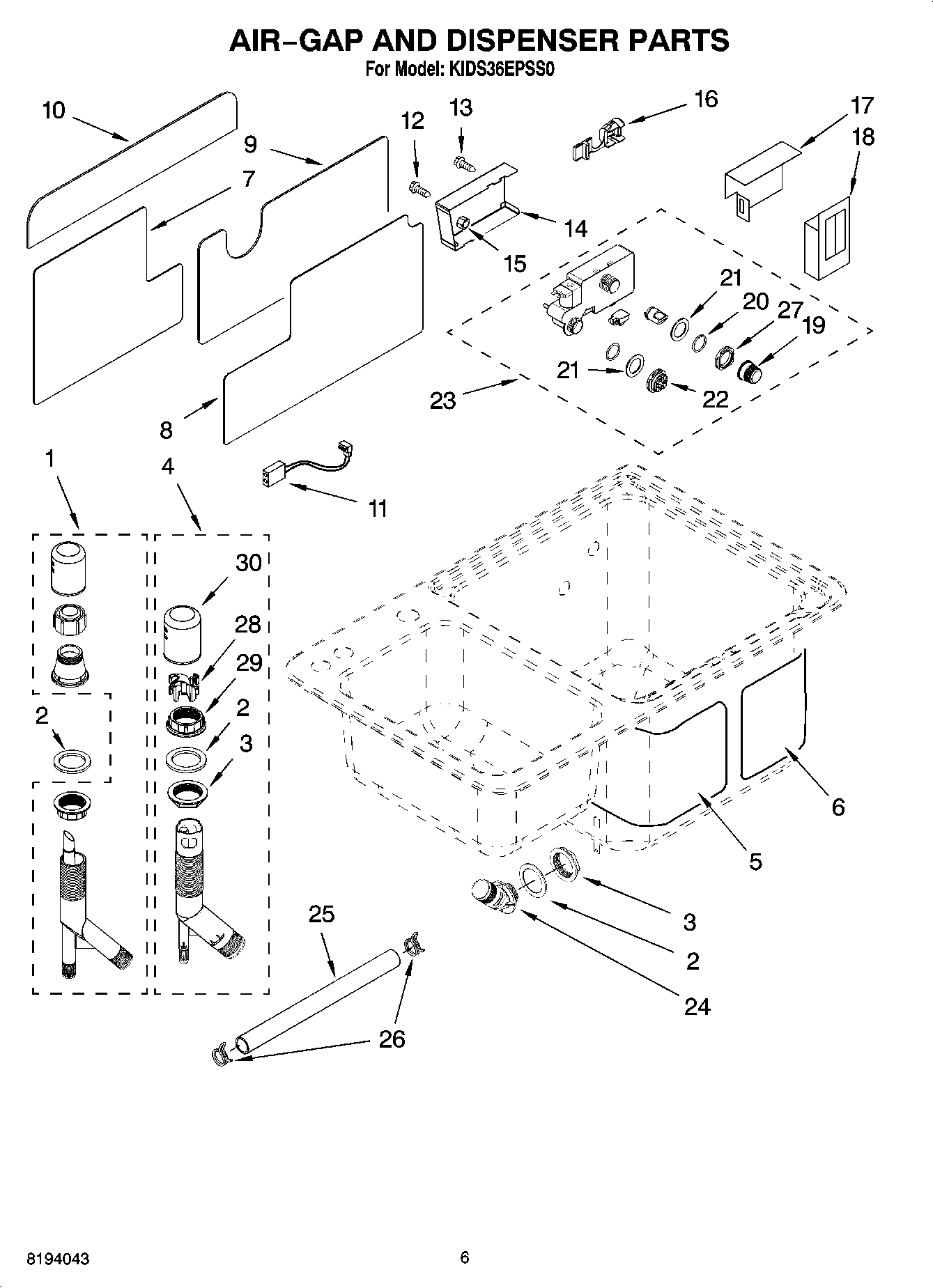

KIDS36EPSS0 04 – AIR-GAP AND DISPENSER PARTS

Products

Position	Product
1	Air-Gap Drain (Also Order Item 2)
2	Gasket, Fittings
3	Nut, Air-Gap
4	Air-Gap, Fill
5	Mastic, Front Left Side
6	Mastic, Front Right Side
7	Mastic, Back Left Side
8	Mastic, Back Right Side
9	Mastic, Left Side
10	Mastic, Bottom Rear
11	Harness, Dispenser
12	WPW10068250 Whirlpool Dishwasher Screw
13	WPW10348409 Whirlpool Screw
14	Cover, Rinse Aid Dispenser
15	WP488130 Whirlpool Air Conditioner Nut
16	Strain Relief
17	Shield, Coil
18	Shield, Switch
19	Cap, Fill Rinse Aid
20	“O“ Ring Dispenser
21	Gasket, Fill Cup
22	Cap, Dispenser
23	Dispenser, Rinse Aid
24	Fitting, Water Inlet
25	Hose, Fill Large
26	Clamp, Hose
27	Nut, Fill Rinse Aid
28	Insert, Air-Gap
29	Nut, Air Gap-Top
30	Cap, Air-Gap
