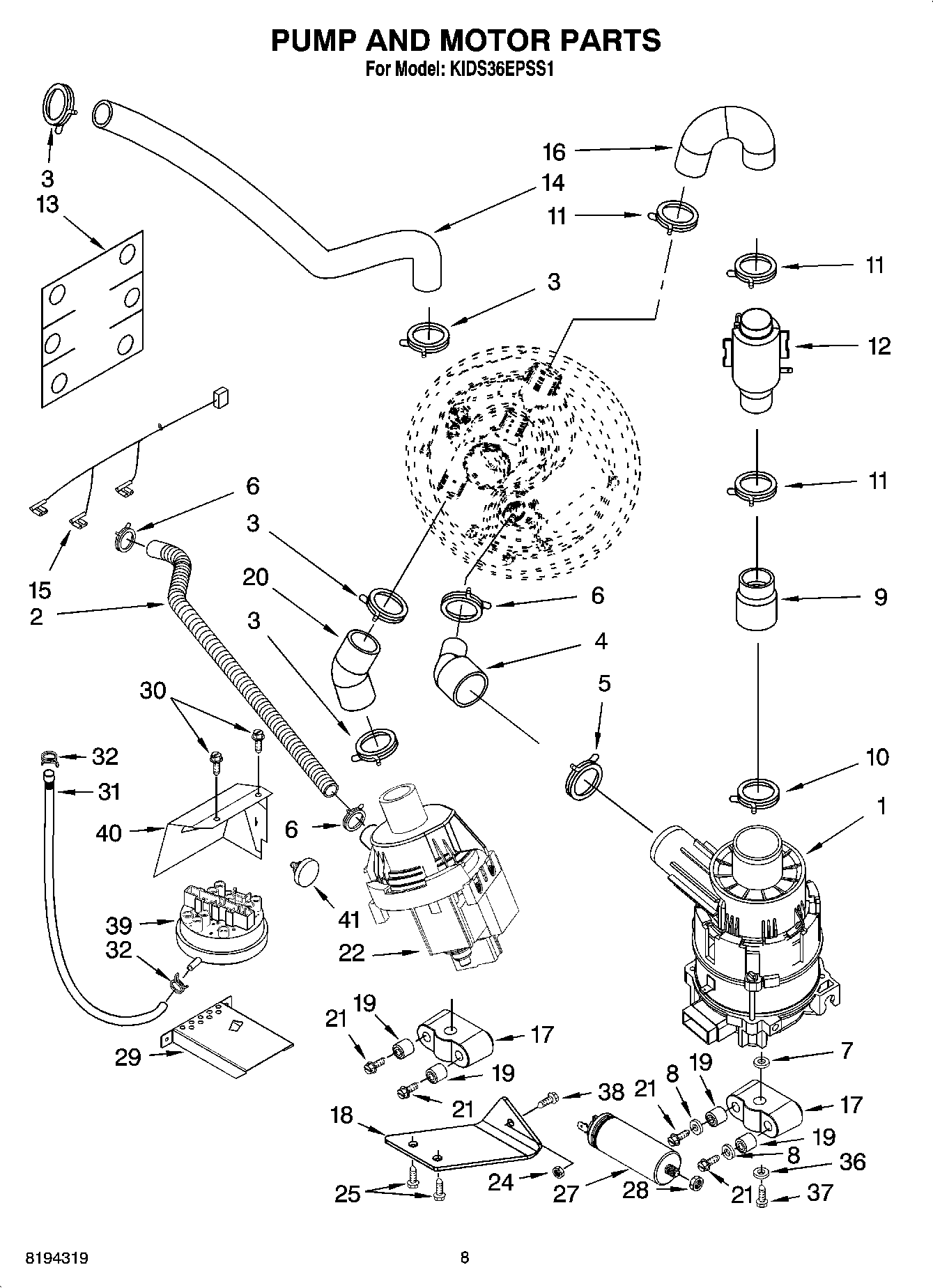

KIDS36EPSS1 05 – PUMP AND MOTOR PARTS

Products

Position	Product
1	Pump & Motor (Also Order Item 7)
2	Hose, Drain W/Check Valve
3	WP8269146 Whirlpool Dishwasher Clamp
4	Hose, Sump Wash Pump
5	Clamp, Hose
6	W11316607 Whirlpool Clamp Assembly
7	Grommet, Bushing
8	Washer
9	Hose, Heater Wash Pump
10	W11622908 Whirlpool Dishwasher Clamp
11	WP285655 Whirlpool Hose Clamp
12	HEATER
13	Shield, Heater
14	Hose, Drain Air Gap
15	Wire Harness Heater
16	Hose Sump/Heater
17	Grommet, Motor
18	Bracket, Drain Pump
19	Sleeve, Grommet
20	Hose, Sump/Drain Motor
21	SCREW
22	Pump, Drain
24	WP3400029 Whirlpool Dishwasher Nut
25	Screw
27	CAPACITOR
28	Nut
29	Bracket, Pressure Switch
30	WP489069 Whirlpool Compactor Screw
31	Hose, Pressure Switch
32	Clamp, Hose (2)
36	W10903204 Whirlpool Refrigerator Washer
38	SCREW
39	Switch, Pressure
40	Shield, Assembly
41	Spacer, Cabinet
