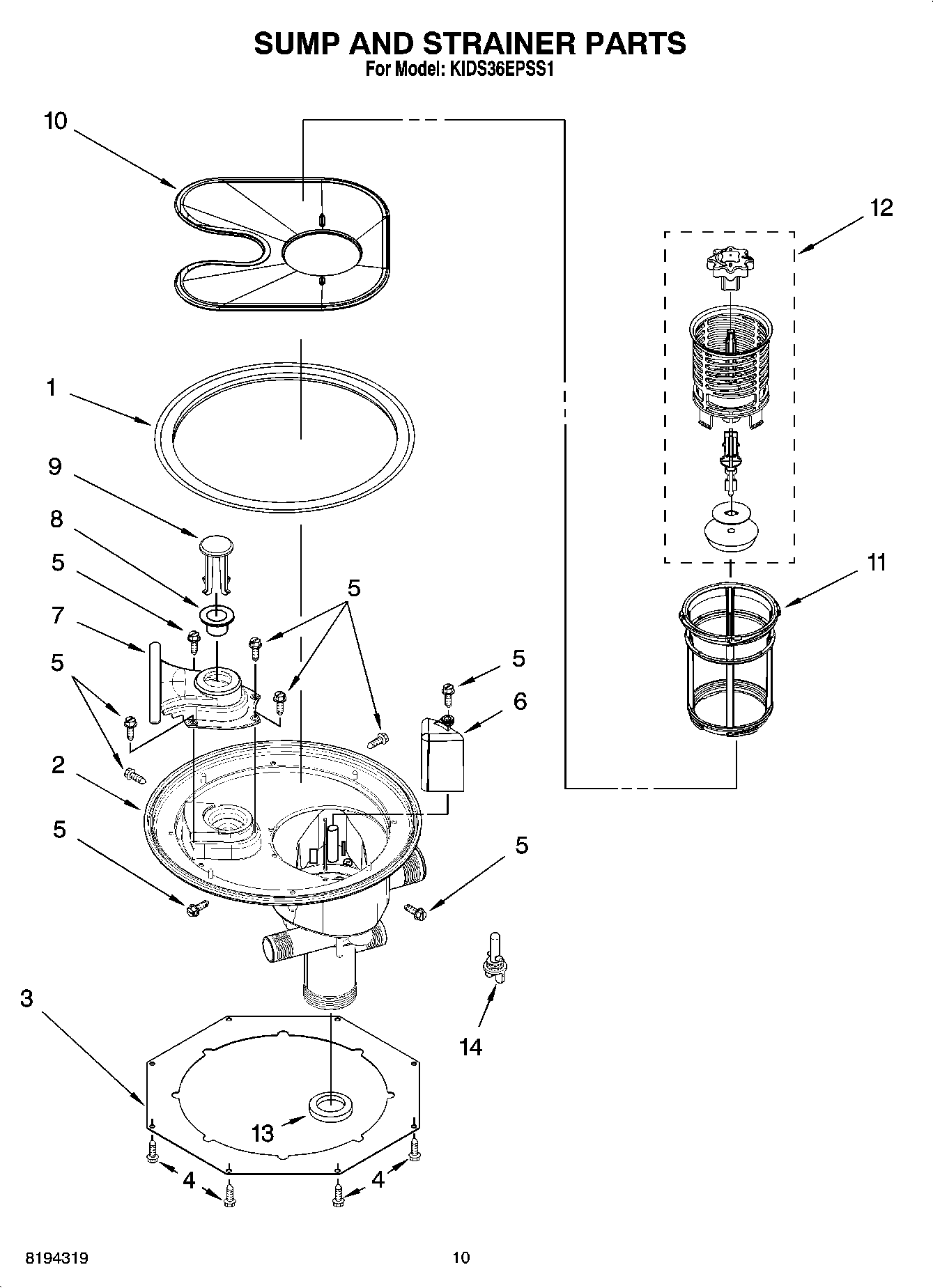

KIDS36EPSS1 06 – SUMP AND STRAINER PARTS

Written by

Products

Position	Product
1	Gasket, Sump
2	SUMP
3	Ring, Sump
4	WP489069 Whirlpool Compactor Screw
5	WP9741232 Whirlpool Dishwasher Screw
6	Dome, Pressure
7	Retainer, Feed Tube
8	Tube, Feed
9	Poppet, Valve
10	Sieve, Stainless
11	Microfilter
12	Filter, Drain Stem Assembly
13	Grommet
14	Thermister
