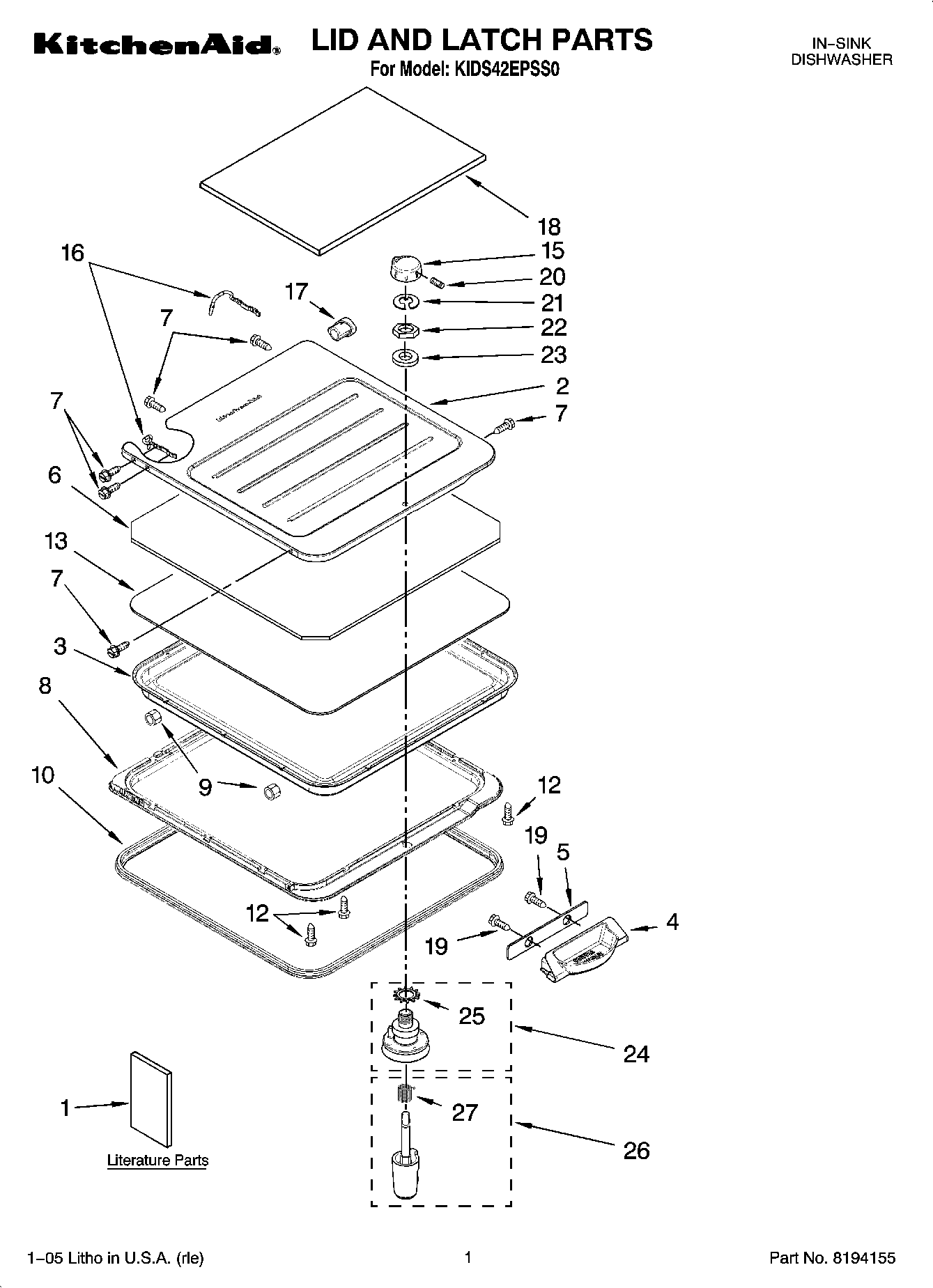

KIDS42EPSS0 01 – LID AND LATCH PARTS

KIDS42EPSS0 01 – LID AND LATCH PARTS

Written by

in

KIDS42EPSS0 01 – LID AND LATCH PARTS

Products

PositionProduct
1Energy Guide
1English/French
1Instructions, Installation
1Guide, Use & Care Tech Sheet
2Lid, Outer
3Lid, Inner
4Cup, Detergent
5Seal, Detergent Cup
6Insulator, Sound Lid
7SCREW
8Retainer, Gasket
9NUT
10Gasket, Lid
12SCREW
13Mastic, Lid
15Knob, Latch (Also Order Item 20)
16Pin, Hinge (Left Hand)
16Pin, Hinge (Right Hand)
17Bearing, Lid Hinge (2)
18Board, Cutting
19W11631670 Whirlpool Screw
20Screw, Set
21E-Ring
22WP33001443 Whirlpool Hex Nut
23WASHER
24Collar Assembly
25WASHER
26Cam Assembly
27Spring, Torsion
