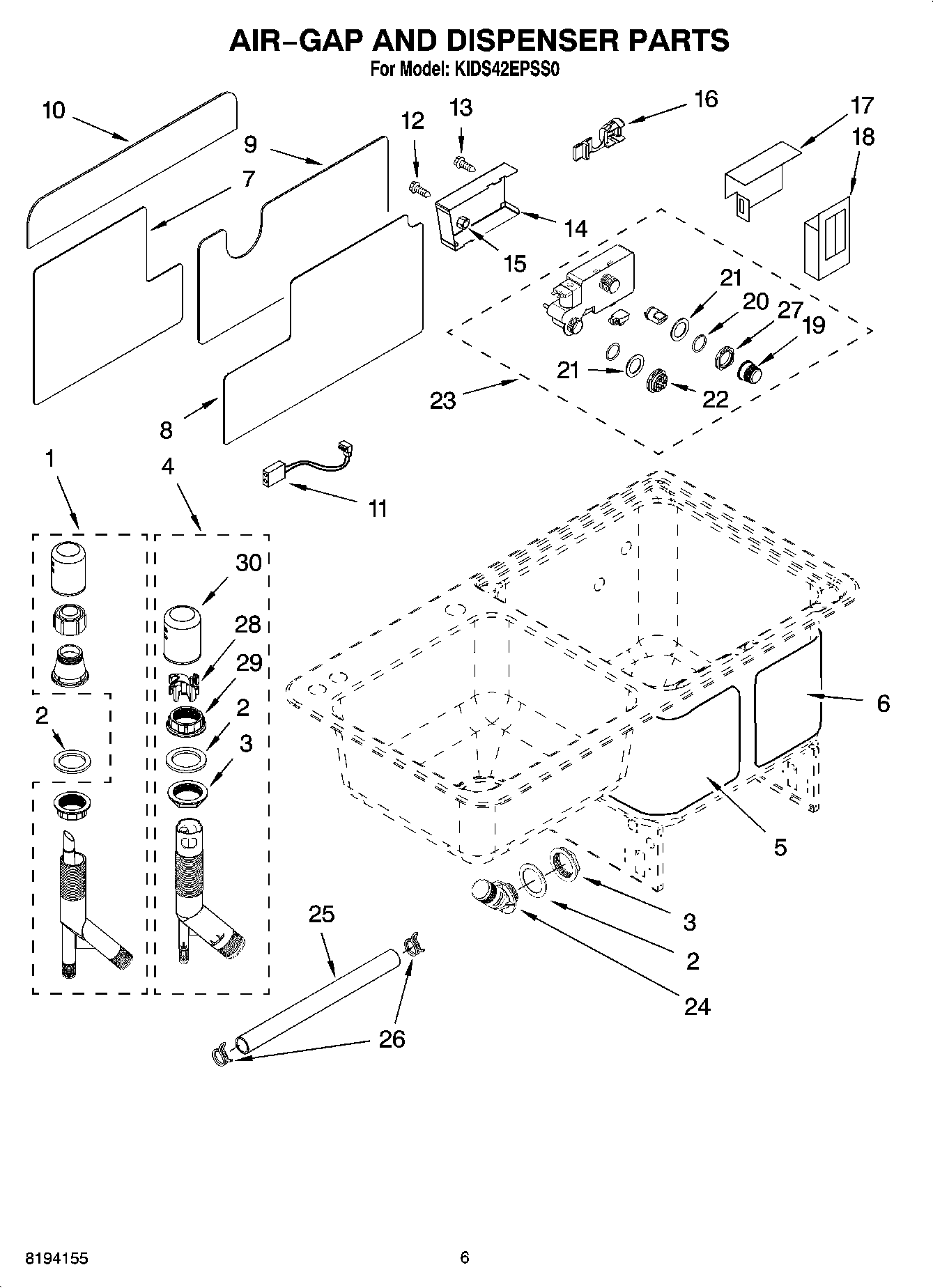

KIDS42EPSS0 04 – AIR-GAP AND DISPENSER PARTSadmin2025-04-26T11:58:50+00:00KIDS42EPSS0 04 – AIR-GAP AND DISPENSER PARTS
Products
| Position | Product |
|---|
| 1 | Air-Gap Drain (Also Order Item 2) |
| 2 | Gasket, Fittings |
| 3 | Nut, Air-Gap |
| 4 | Air-Gap, Fill |
| 5 | Mastic, Front Left Side |
| 6 | Mastic, Front Right Side |
| 7 | Mastic, Back Left Side |
| 8 | Mastic, Back Right Side |
| 9 | Mastic, Left Side |
| 10 | Mastic, Bottom Rear |
| 11 | Harness, Dispenser |
| 12 | WPW10068250 Whirlpool Dishwasher Screw |
| 13 | WPW10348409 Whirlpool Screw |
| 14 | Cover, Rinse Aid Dispenser |
| 15 | WP488130 Whirlpool Air Conditioner Nut |
| 16 | Strain Relief |
| 17 | Shield, Coil |
| 18 | Shield, Switch |
| 19 | Cap, Fill Rinse Aid |
| 20 | ``O`` Ring Dispenser |
| 21 | Gasket, Fill Cup |
| 22 | Cap, Dispenser |
| 23 | Dispenser, Rinse Aid |
| 24 | Fitting, Water Inlet |
| 25 | Hose, Fill Large |
| 26 | Clamp, Hose |
| 27 | Nut, Fill Rinse Aid |
| 28 | Insert, Air-Gap |
| 29 | Nut, Air Gap-Top |
| 30 | Cap, Air-Gap |
