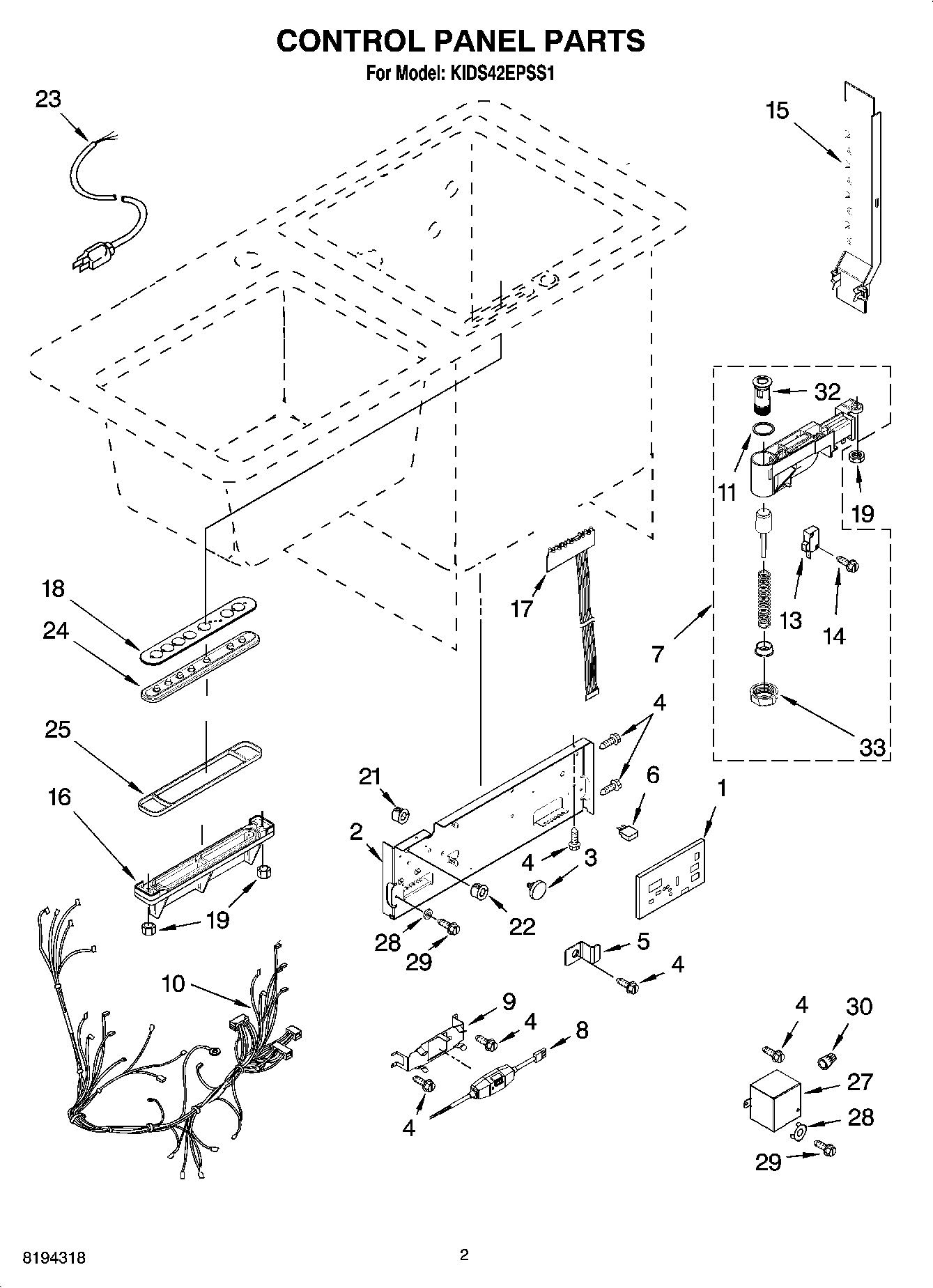

KIDS42EPSS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control, Electronic (Also Order Item 6)
2	Brace, Cross
3	Spacer, Cabinet
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Control
6	675813 Whirlpool Thermal Fuse Kit
7	Latch Assembly
8	Ground Fault
9	Bracket, Ground Fault
10	Harness, Main
11	GASKET
13	Shield, Switch
14	WP3400412 Whirlpool Dishwasher Screw
15	Protector, Harness
16	Bracket, User Interface
17	Board, Interface
18	Insert
19	W10080180 Whirlpool Nut
21	BUSHING
22	BUSHING
23	4317824 Whirlpool Dishwasher 5' 3 Wire Prong Power Cord Kit
24	Spacer, User Interface
25	Gasket, User Interface
27	Cover, Terminal
28	WP3378128 Whirlpool Dishwasher Washer
29	WP3400014 Whirlpool Dishwasher Screw
30	Nut, Wire
32	Housing, Plunger Latch
33	Nut, Latch
