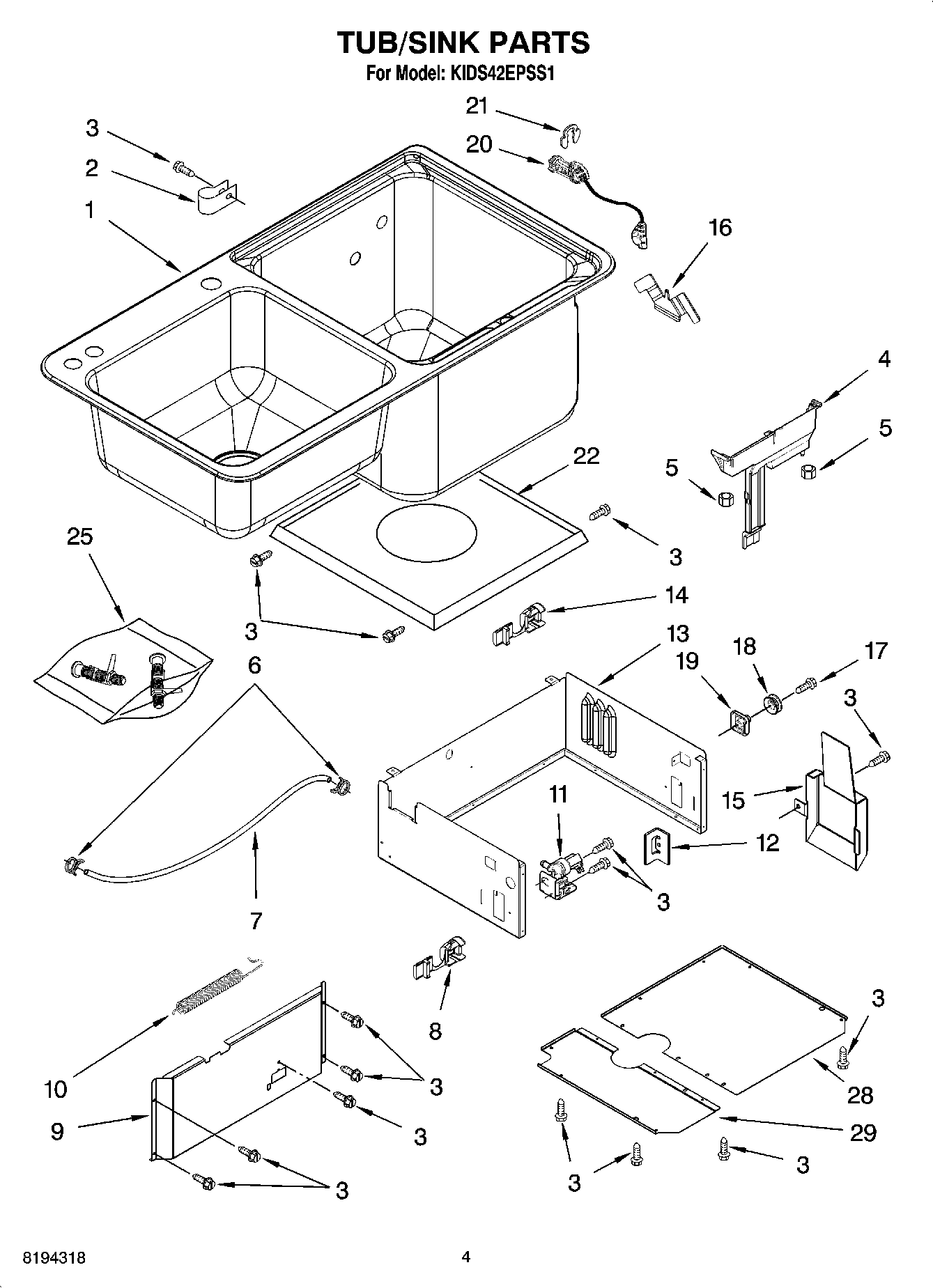

KIDS42EPSS1 03 – TUB/SINK PARTS

Products

PositionProduct
1Tub/Sink Assembly
2Clamp, Cable
3WP489069 Whirlpool Compactor Screw
4Cover, Enclosure
5W10080180 Whirlpool Nut
6WP596669 Whirlpool Hose Clamp
7Hose, Water Inlet
8Strain Relief
9Cover, Access
10Spring, Lid
11Inlet, Water
12Plate, Lid Counter Balance
13Wrapper, U-Shape
14Strain Relief
15Cover, Lid Counter Balance
16Guide, Rope Upper
17WP3400074 Whirlpool Dishwasher Screw
18Wheel
19Mount, Wheel
20Link, Lid Balance (Also Order Item 21)
21C-Ring
22Base Plate
25Miscellaneous Parts Bag (Includes 8 Each, Mounting Clips, Fasteners & Clamps)
28Cover, Bottom Components
29Cover, Bottom Plumbing
