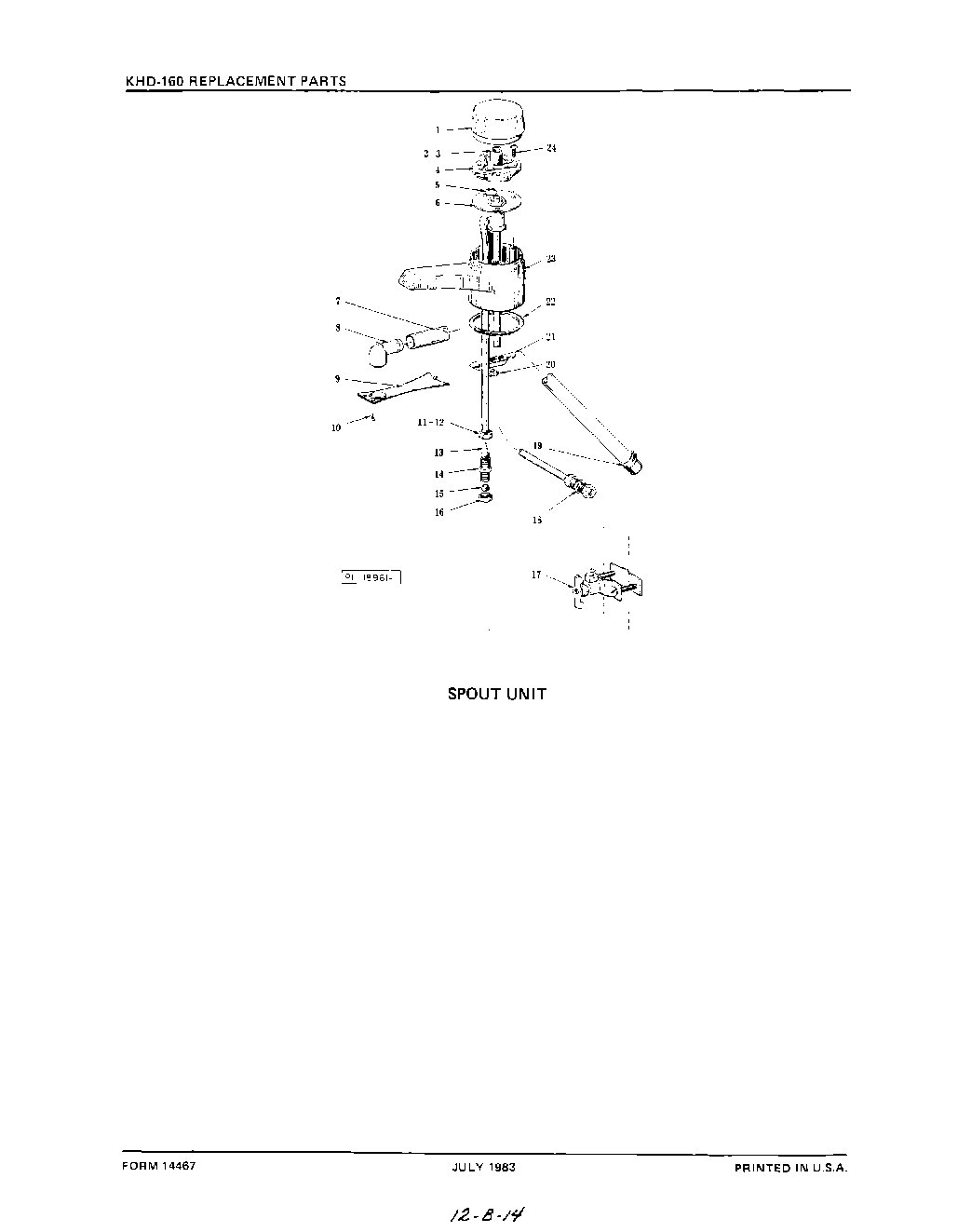

KIH160 03 – SECTION

Products

Position	Product
1	Cap Assy
2	Hub – Valve Drive
3	Spring – Compression
4	Hub – Cam
5	Cap Screw – 1/4“-20 x 5“ Rd. Hd
6	Mechanical Valve Assy. (Incls. items No.13 & 14)
7	Tube (3/8“ I.D.)
8	Spout & Screen Assy
9	Plate – Spout
10	Self-Tapping Screw – No.4-20 x 5/16“ Phil. Flat Undercut Hd. “Plastite“
13	Screen – Inlet
15	Sleeve – 1/4“ Compression Union
16	Nut – 1/4“ Compression Union
17	Self-Drilling Valve Assy
18	Union – Compression (1/4“ Tube to 1/4“ Tube)
19	Clamp (1/2“ O.D. Tubing)
20	Mach. Nut – 1/4“-20 Sq
21	Bracket – Spout
22	Seal – Sink
23	Body – Spout
24	Self-Tapping Screw – No.6-20 x 1/2“ Rd. Hd. Type BT
