| Instruction Booklet |
| Modular Icemaker Service Sheet |

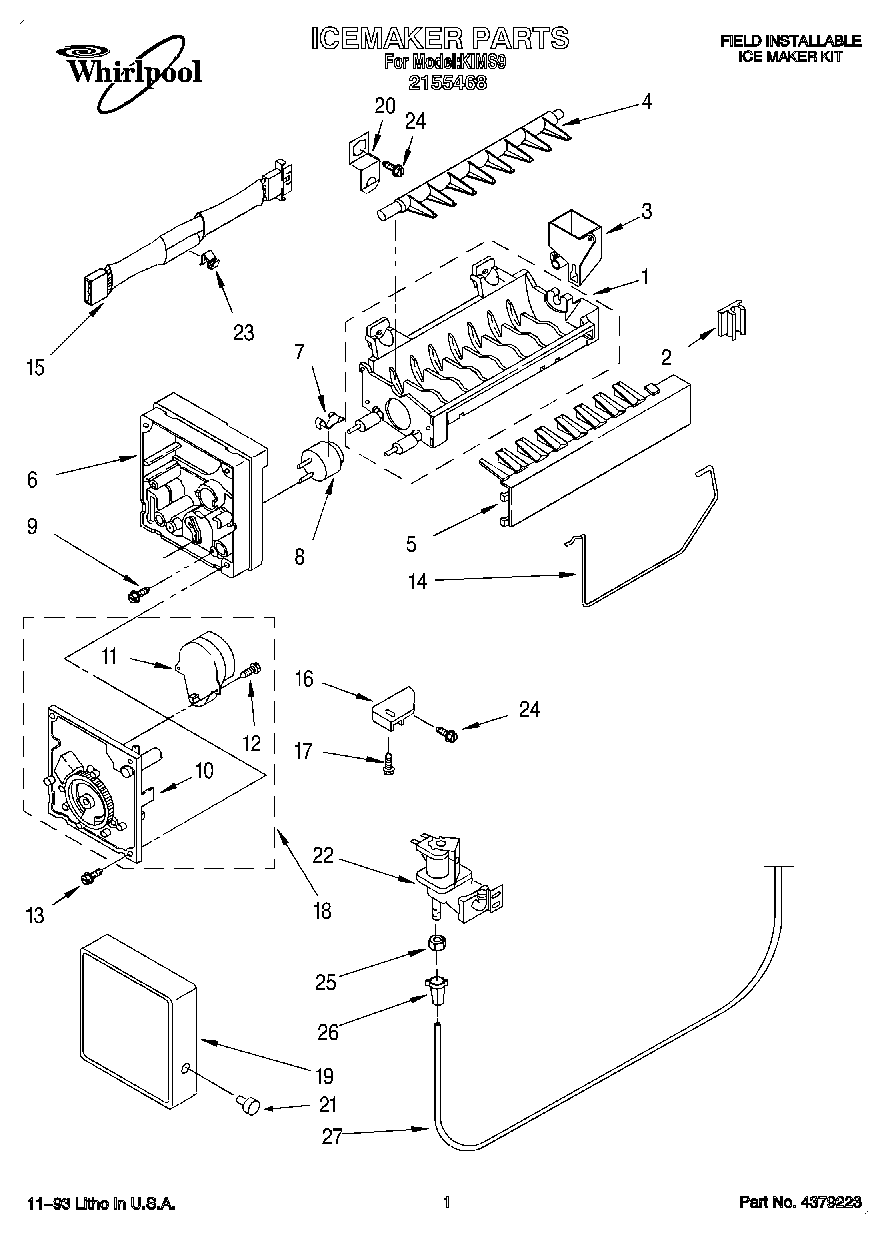

| 1 | WPW10190929 Whirlpool Refrigerator Ice Maker Mold |
| 2 | W11501419 Whirlpool Refrigerator Clip |
| 3 | WP628356 Whirlpool Refrigerator Fill Cup |
| 4 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 5 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 6 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 7 | WP2315522 Whirlpool Refrigerator Clip |
| 8 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 9 | 8533917 Whirlpool Refrigerator Screw |
| 11 | W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly |
| 12 | 489136 Whirlpool Refrigerator Screw |
| 13 | WP681249 Whirlpool Screw Assembly |
| 14 | WP627792 Whirlpool Refrigerator Shut Off Arm |
| 15 | WP2187464 Whirlpool Refrigerator Wire Harness |
| 16 | W11500948 Whirlpool Refrigerator Bracket |
| 17 | Screw, 8-32 x 27/64 |
| 19 | WPW10289690 Whirlpool Ice Maker Cover |
| 20 | Clip, Support (2) |
| 21 | Knob, Water Adjust |
| 22 | VALVE-INLT |
| 23 | WP628379 Whirlpool Refrigerator Clip |
| 25 | WP627018 Whirlpool Refrigerator Nut |
| 27 | Accessory Bag, Inside Parts |
| 27 | Tube, Water Inlet |
| 27 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 27 | WP2196157 Whirlpool Fill Tube |
| 27 | PAN-ICE |
| 27 | W10823511 Whirlpool Refrigerator Water Tube |
| 27 | 4387491 Whirlpool Refrigerator Insert |
| 27 | WP488878 Whirlpool Refrigerator Tube Clamp |
| 27 | WP488163 Whirlpool Refrigerator Screw |
| 27 | WP1106508 Whirlpool Refrigerator Gasket |
| 27 | WP489478 Whirlpool Refrigerator Screw |
