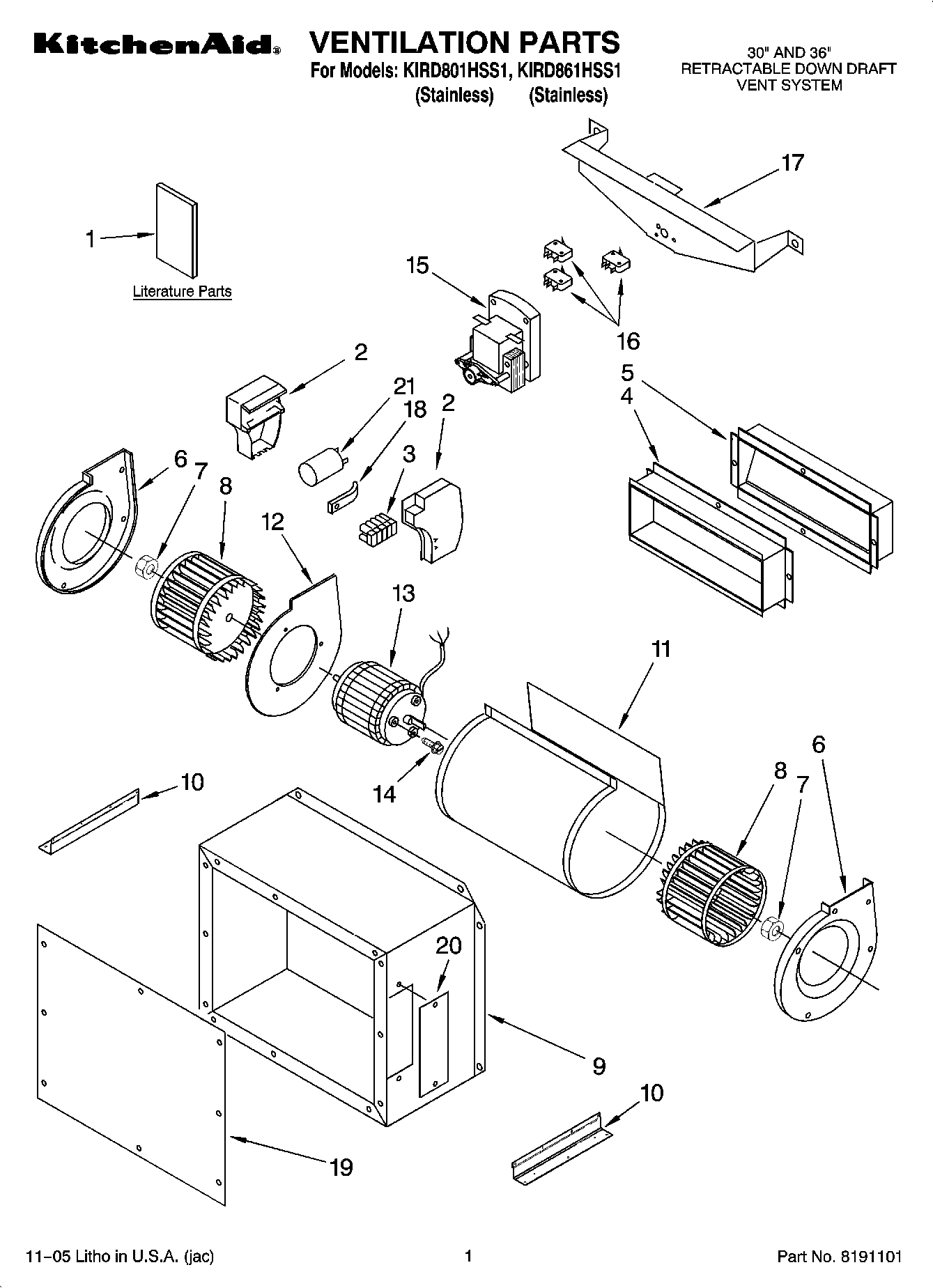

KIRD801HSS1 01 – VENTILATION PARTS

Products

Position	Product
1	Use & Care Guide/ Install Instruct
2	Cover, Box
2	Box, Electric
3	Terminal
4	Guide, Exhaust
5	Damper
6	Cover, Blower
6	Cover, Blower
7	Nut
8	Impeller
8	Impeller
9	Box, Blower
10	Support, Blower (2)
11	Housing, Motor
12	Motor Mount
13	Motor
14	Screw
15	Motor, Gear
16	WPW10240604 Whirlpool Fan Switch
17	Bracket, Motor Gear
18	Block, Capacitor
19	Cover, Blower Box
20	Cover, Exhaust Outlet
21	Capacitor
