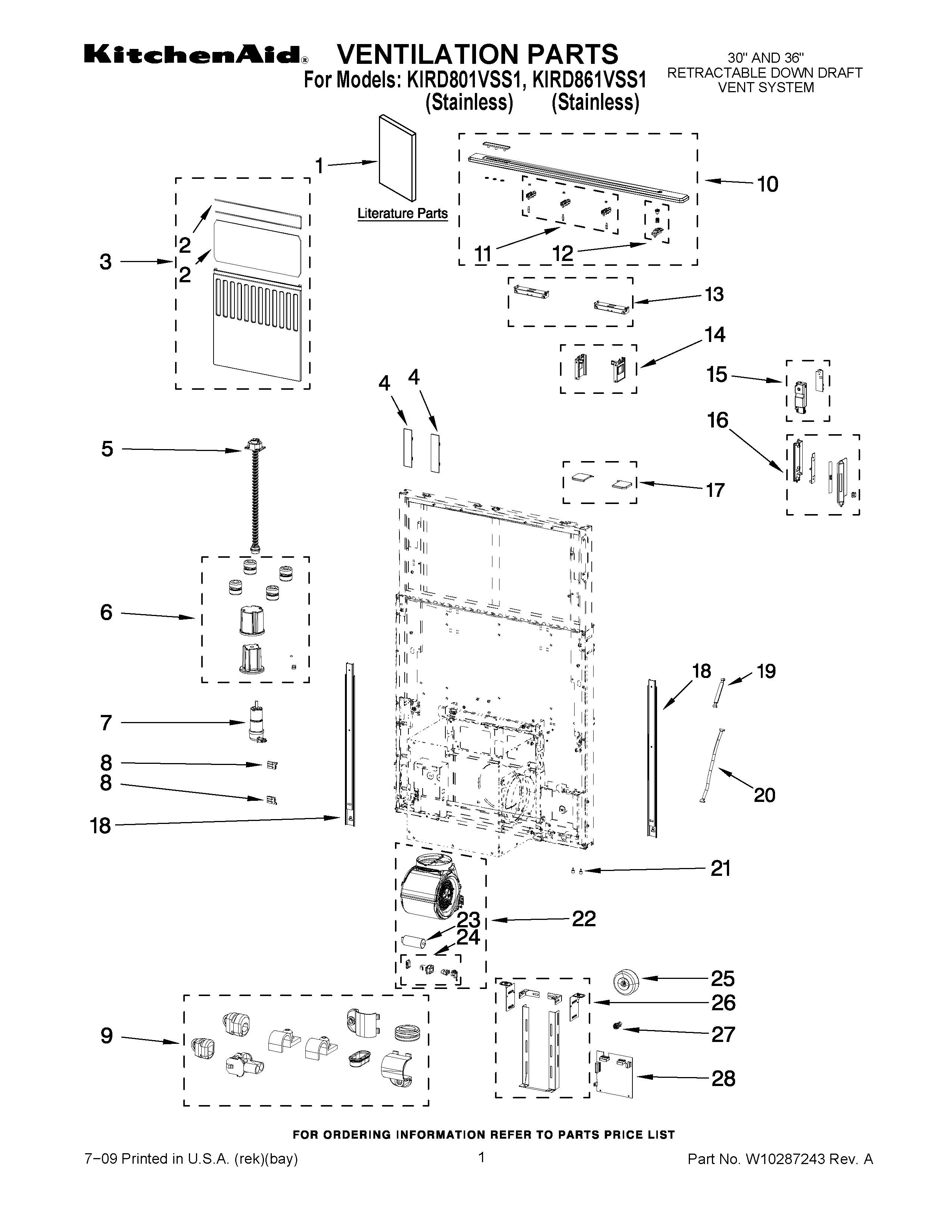

KIRD801VSS1 01 – VENTILATION PARTS

Products

Position	Product
1	Wiring Diagram
1	USE & CARE GUIDE/INSTALL INSTRUCTS
2	Filter, Grease (36“ Mdl (2))
2	Filter, Grease (30“ Mdl (2))
3	FILTER/FRAME (36“ MDL (2))
3	FILTER/FRAME (30“ MDL (2))
4	Guide, Housing (Back)
5	Screw, Elevator
6	Housing Components
7	Motor, Gear
8	WPW10240604 Whirlpool Fan Switch
9	Clamp Kit
10	Cover, Control (36“ Mdl)
10	Cover, Control (30“ Mdl)
11	Connector Kit
12	W10235663 Whirlpool Range Vent Hood Push Button Switch
13	W10235643 Whirlpool Switch
14	Plate, Guide Kit
15	W10235661 Whirlpool Downdraft Control Motor
16	Housing, Control
17	Endcap, Trim Kit
18	Guides, Kit of 2
19	Harness 270mm
20	Harness 1250mm
21	Knob, Control
22	MOTOR-FAN
23	CAPACITOR
24	Connectors
25	Transformer
26	Hardware, Install
27	WPW10235651 Whirlpool Fuse
28	Control, Elctronic
