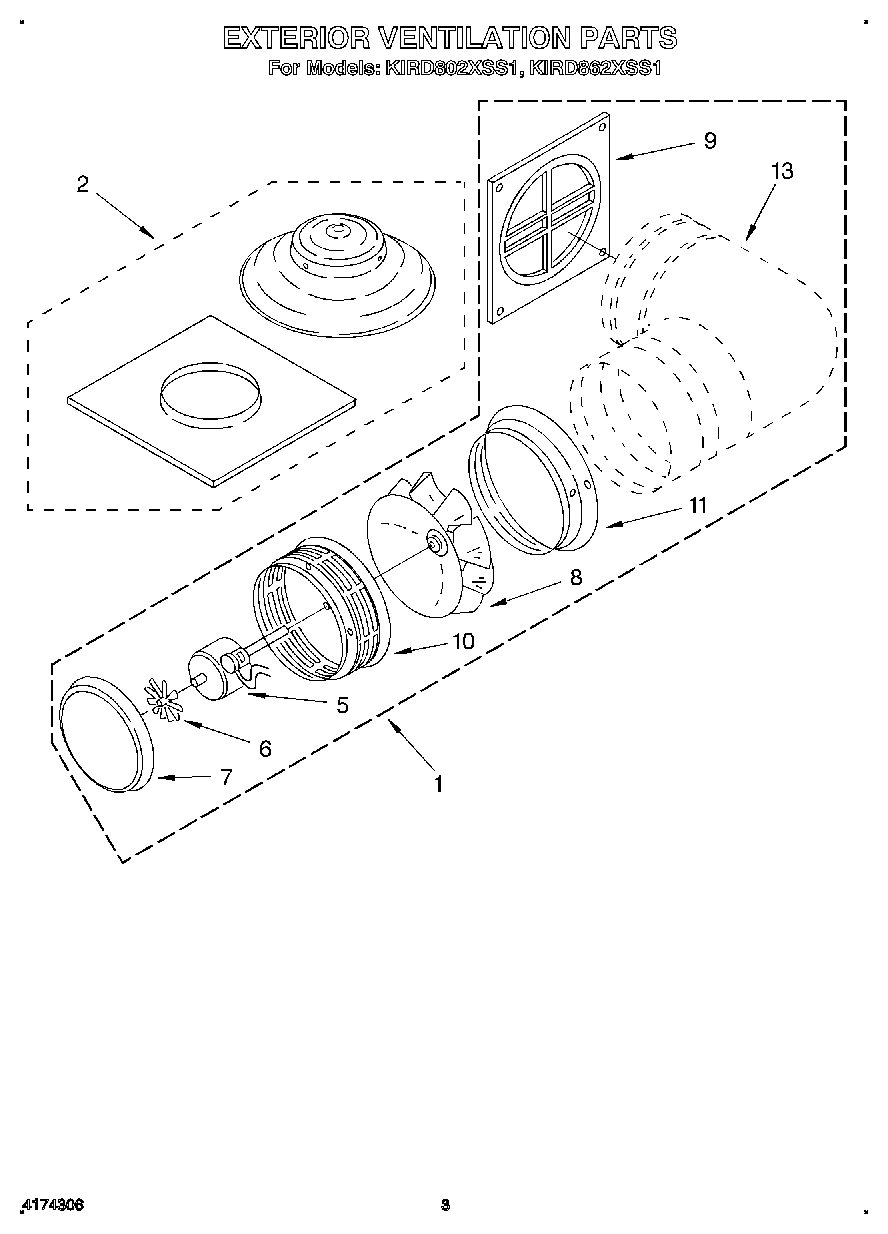

KIRD802XSS1 03 – SECTION

KIRD802XSS1 03 – SECTION

Written by

in

KIRD802XSS1 03 – SECTION

Products

PositionProduct
1Power Unit Complete Model KPED890T
2Roof Mounting Kit (Dome Cover And Flashing)
5Motor (Includes Capacitor & Cap)
6Blade, Fan
7Cover, Motor (Wall Mount)
8Impeller
9Plate, Adaptor (With Damper)
10Housing, (Not Serviceable)
11Housing, Ring (Not Serviceable)
139“ Elbow (Not Included, Purchase Locally)
13Trim Kit-Black (KIRD802)
13Trim Kit-White (KIRD862)
13Trim Kit-White (KIRD802)
13Trim Kit-Black (KIRD862)
