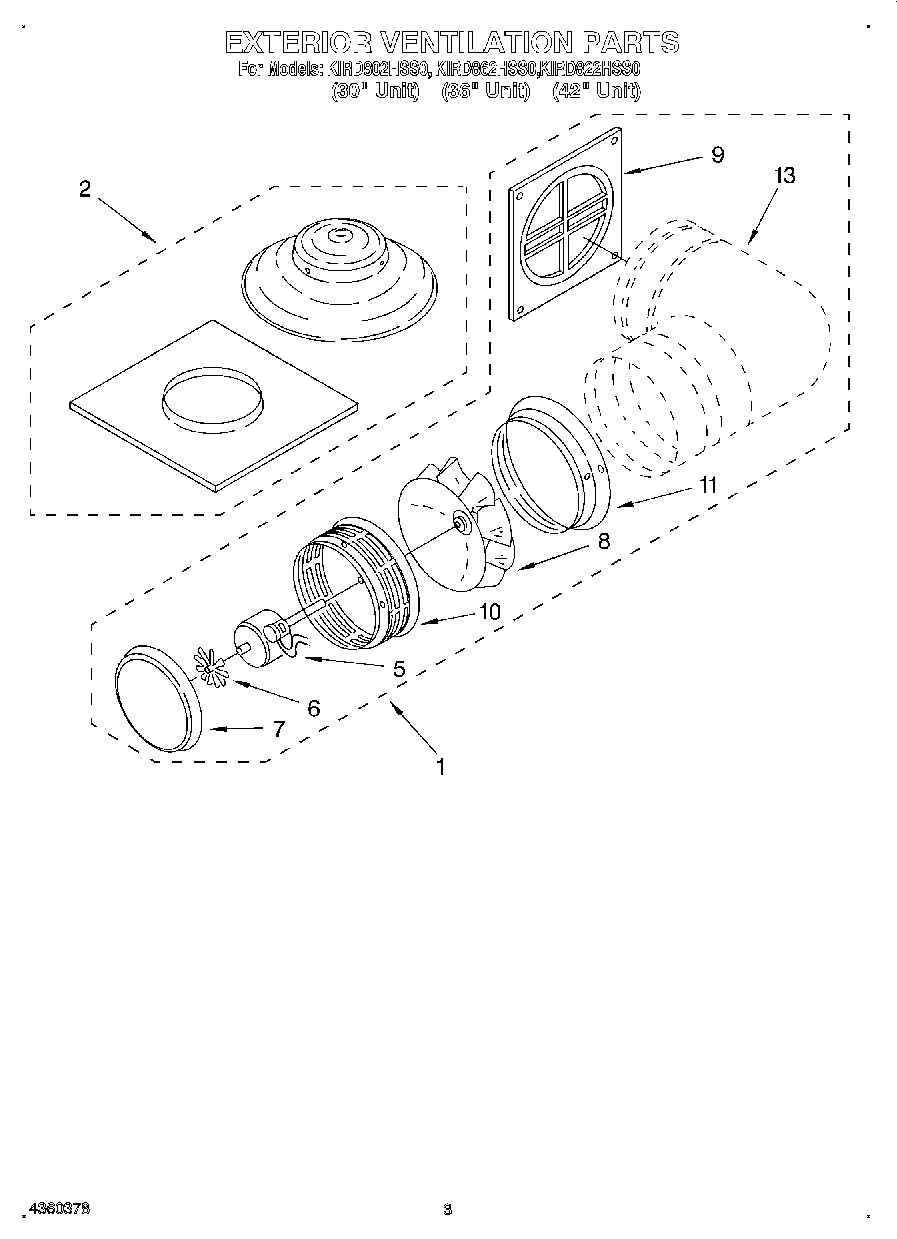

| 1 | Power Unit Complete Model KPED890T |
| 2 | Roof Mounting Kit (Dome Cover And Flashing) |
| 5 | Motor (Includes Capacitor & Cap) |
| 6 | Blade, Fan |
| 7 | Cover, Motor (Wall Mount) |
| 8 | Impeller |
| 9 | Plate, Adaptor (With Damper) |
| 10 | Housing, (Not Serviceable) |
| 11 | Housing, Ring (Not Serviceable) |
| 13 | WPL 8171317 |
| 13 | WPL 8171316 |
| 13 | WPL 8171312 |
| 13 | WPL 8171311 |
| 13 | WPL 8171310 |
| 13 | WPL 8171306 |
| 13 | WPL 8171305 |
| 13 | Trim Kit-White (KIRD801) |
| 13 | 9`` Elbow (Not Included, Purchase Locally) |
| 13 | WPL 8171318 |
