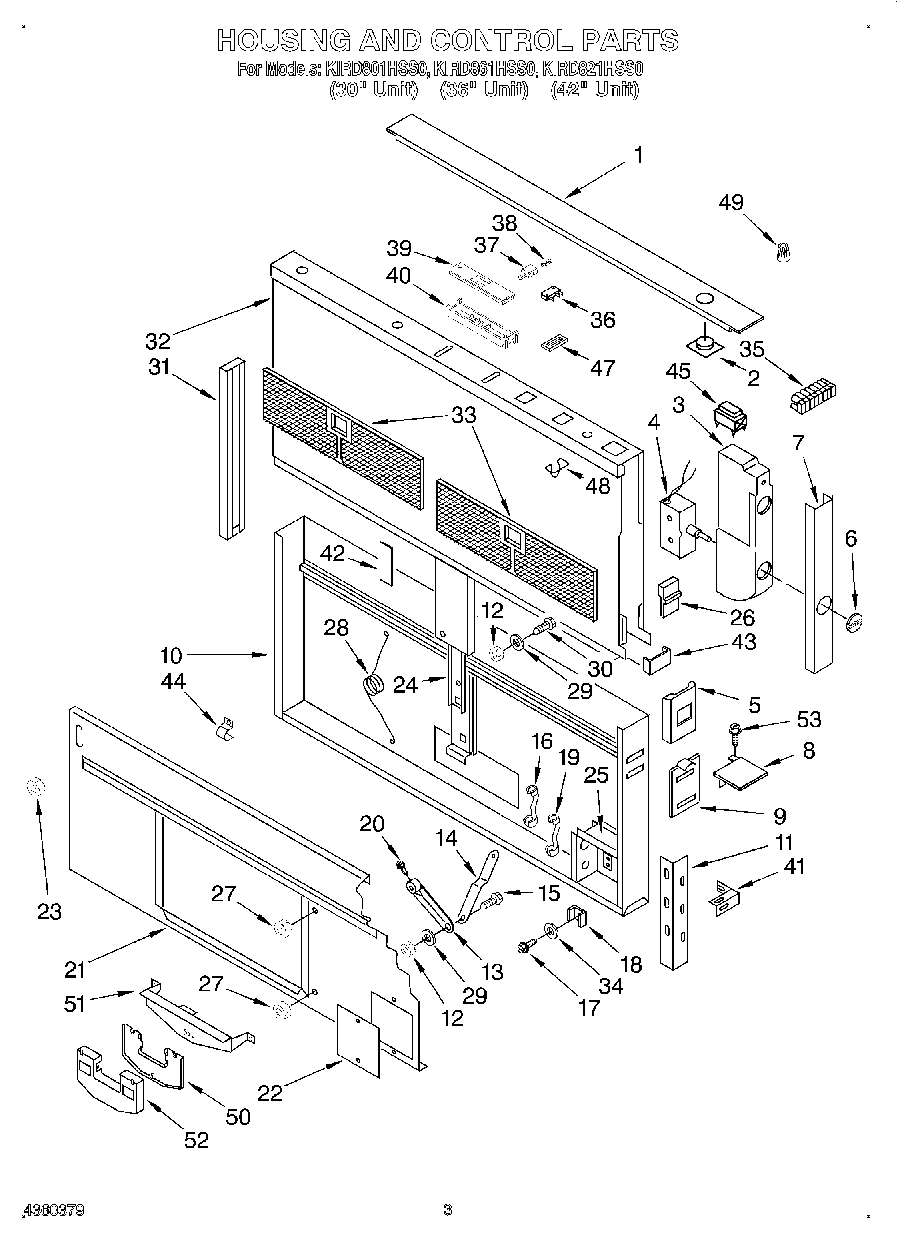

KIRD861HSS0 02 – SECTION

Products

Position	Product
	WPL 8171306
	WPL 8171310
	WPL 8171305
	Trim Kit-White (KIRD801)
	Cooktop Strip
	WPL LIT4360363
	WPL 8171312
	WPL 8171311
	WPL 8171316
	WPL 8171317
	WPL 8171318
1	Cover, Controls (Top) (KIRD801)
1	Cover, Controls (Top) (KIRD861)
1	Cover, Controls (Top) (KIRD821)
2	Button, Push
3	Housing, Switch
4	Switch, Fan
5	Bracket, Support (Right Hand)
5	Bracket, Support (Left Hand)
6	Knob
7	Panel, Control
8	End Cap (Right)
8	End Cap (Left)
9	Plate, Support (Upper) (2)
10	Housing, (Not Serviceable)
11	Bracket, Support (Lower L.H.)
11	Bracket, Support (Lower R.H.)
12	Nut
13	Arm, Gear Motor
14	Arm, Cavity
15	Bolt
16	Relief, Strain
17	Screw
18	Guide, Ground
19	Strain Relief
20	Screw, Set
21	Cover, Housing (Not Serviceable)
22	Cover, Wiring Box
23	Nut In Guide (2)
24	Guide, Housing (Not Serviceable)
25	Box, Wiring
26	Clamp
27	WP776338 Whirlpool Compactor Nut
28	Spring
29	98007193 Whirlpool Oven Washer
30	Bolt
31	Trim, R.H.
32	Cavity (Not Serviceable)
33	WPW10381779 Whirlpool Grease Filter
33	WPW10396091 Whirlpool Grease Filter
34	Washer
35	Terminal
37	W10235643 Whirlpool Switch
41	Support (R.H.)
41	Support (L.H.)
42	Guide, Housing (Back)
43	Spacer, Cavity (2)
44	Clamp, Wiring
45	Switch
47	Connector (3)
48	Spring (3)
49	Wire Nut
50	Cover, Box
51	Bracket, Motor Gear
52	Box, Microswitch
53	Installation Kit
53	WPL 814380
53	Screw, En
