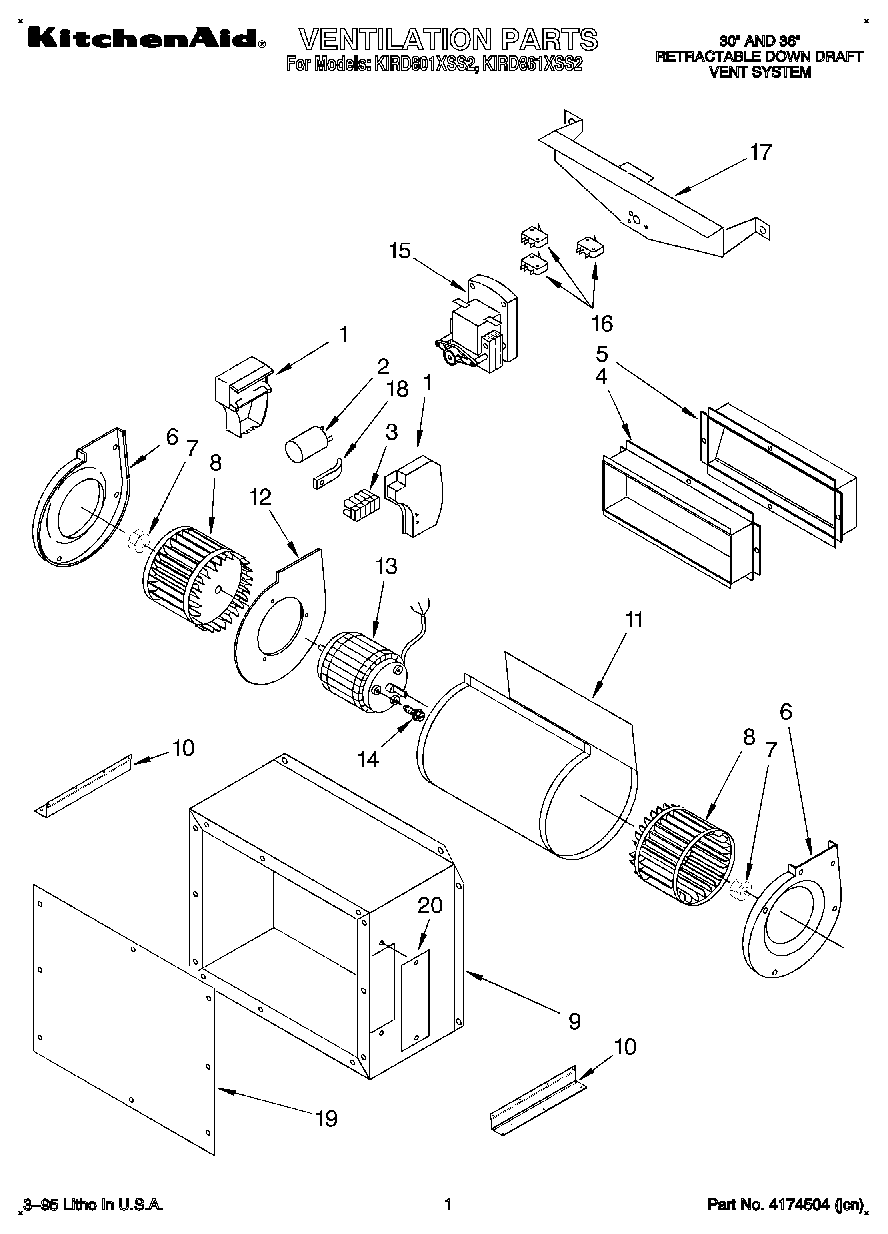

KIRD861XSS2 01 – SECTION – Aparts

KIRD861XSS2 01 – SECTION

Products

Position	Product
1	Cover, Box
1	Box, Electric
2	Capacitor
3	Terminal
4	Guide, Exhaust
5	Damper
6	Cover, Blower
6	Cover, Blower
7	Nut
8	Impeller
8	Impeller
9	Box, Blower
10	Support, Blower (2)
11	Housing, Motor
12	Motor Mount
13	Motor
14	Screw
15	Motor, Gear
16	WPW10240604 Whirlpool Fan Switch
17	Bracket, Motor Gear
18	Block, Capacitor
19	Cover, Blower Box
20	Cover, Exhaust Outlet
