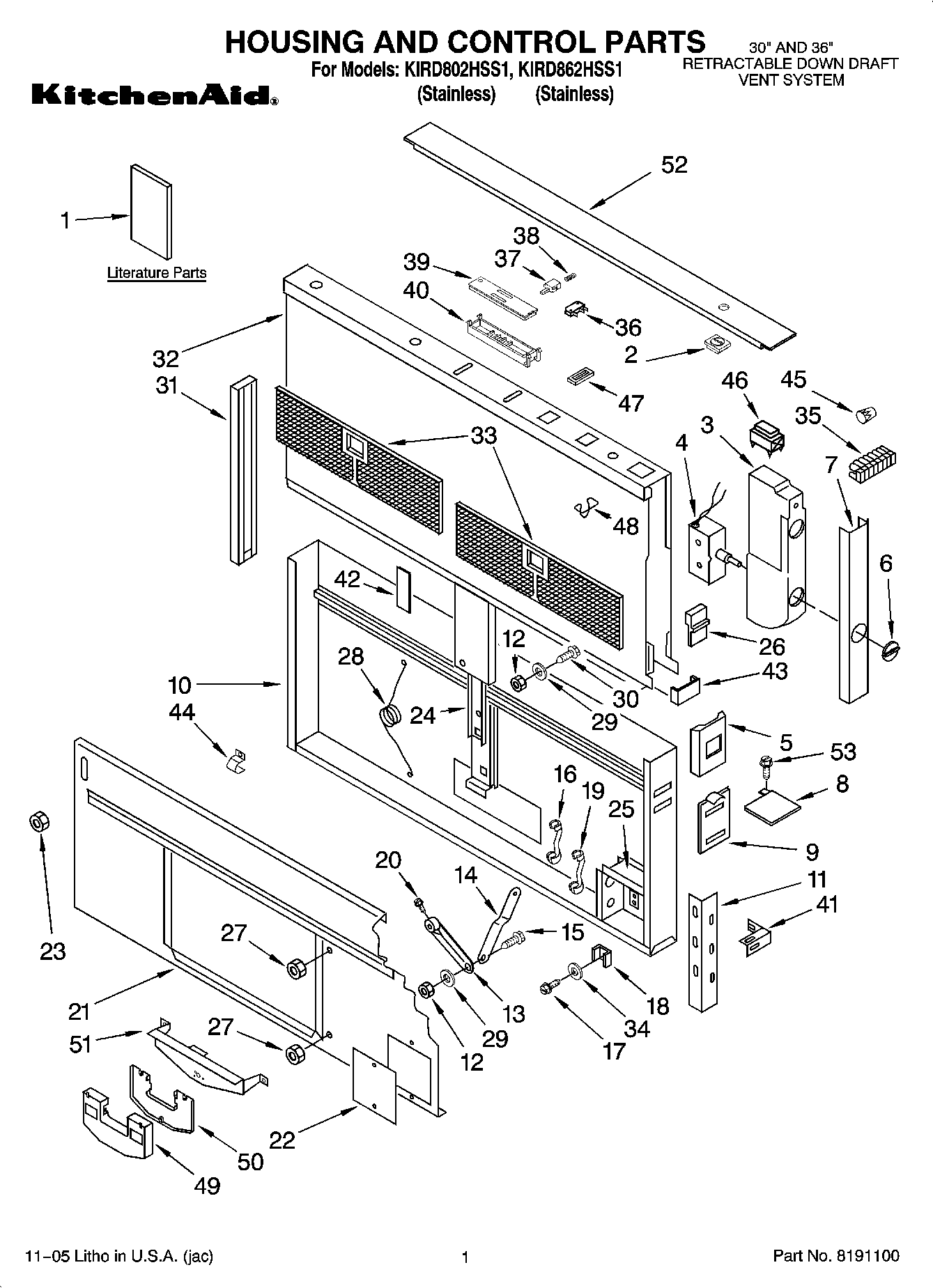

KIRD862HSS1 01 – HOUSING AND CONTROL PARTS

Products

Position	Product
1	Use & Care Guide/ Install Instruct
2	Button, Push
3	Housing, Switch
4	Switch, Fan
5	Bracket, Support (Right Hand)
5	Bracket, Support (Left Hand)
6	Knob
7	Panel, Control
8	End Cap (Right)
8	End Cap (Left)
9	Plate, Support (Upper) (2)
10	Housing, Non-Serviceable
11	Bracket, Support (Lower R.H.)
11	Bracket, Support (Lower L.H.)
12	Nut
13	Arm, Gear Motor
14	Arm, Cavity
15	Bolt
16	Relief, Strain
17	Screw
18	Guide, Ground
19	Strain Relief
20	Screw, Set
21	Cover, Housing Non-Serviceable
22	Cover, Wiring Box
23	Nut In Guide (2)
24	Guide, Housing Non-Serviceable
25	Box, Wiring
26	Clamp
27	WP776338 Whirlpool Compactor Nut
28	Spring
29	98007193 Whirlpool Oven Washer
30	Bolt
31	Trim, R.H.
32	Cavity Non-Serviceable
33	WPW10381779 Whirlpool Grease Filter
33	WPW10396091 Whirlpool Grease Filter
34	Washer
35	Terminal
37	W10235643 Whirlpool Switch
41	Support (R.H.)
41	Support (L.H.)
42	Guide, Housing (Back)
43	Spacer, Cavity (2)
44	Clamp, Wiring
45	Wire Nut
46	Switch
47	Connector (3)
48	Spring (3)
49	Box, Microswitch
50	Cover, Box
51	Bracket, Motor Gear
52	Cover, Controls (Top) (KIRD801)
52	Cover, Controls (Top) (KIRD861)
53	WPL ARI88866A8
53	Screw, En
53	WPL 8171318
53	WPL 8171317
53	WPL 8171316
53	WPL 8171312
53	WPL 8171311
53	WPL 8171310
53	WPL 8171306
53	WPL 8171305
53	WPL 814380
53	Trim Kit-White (KIRD801)
53	Installation Kit
