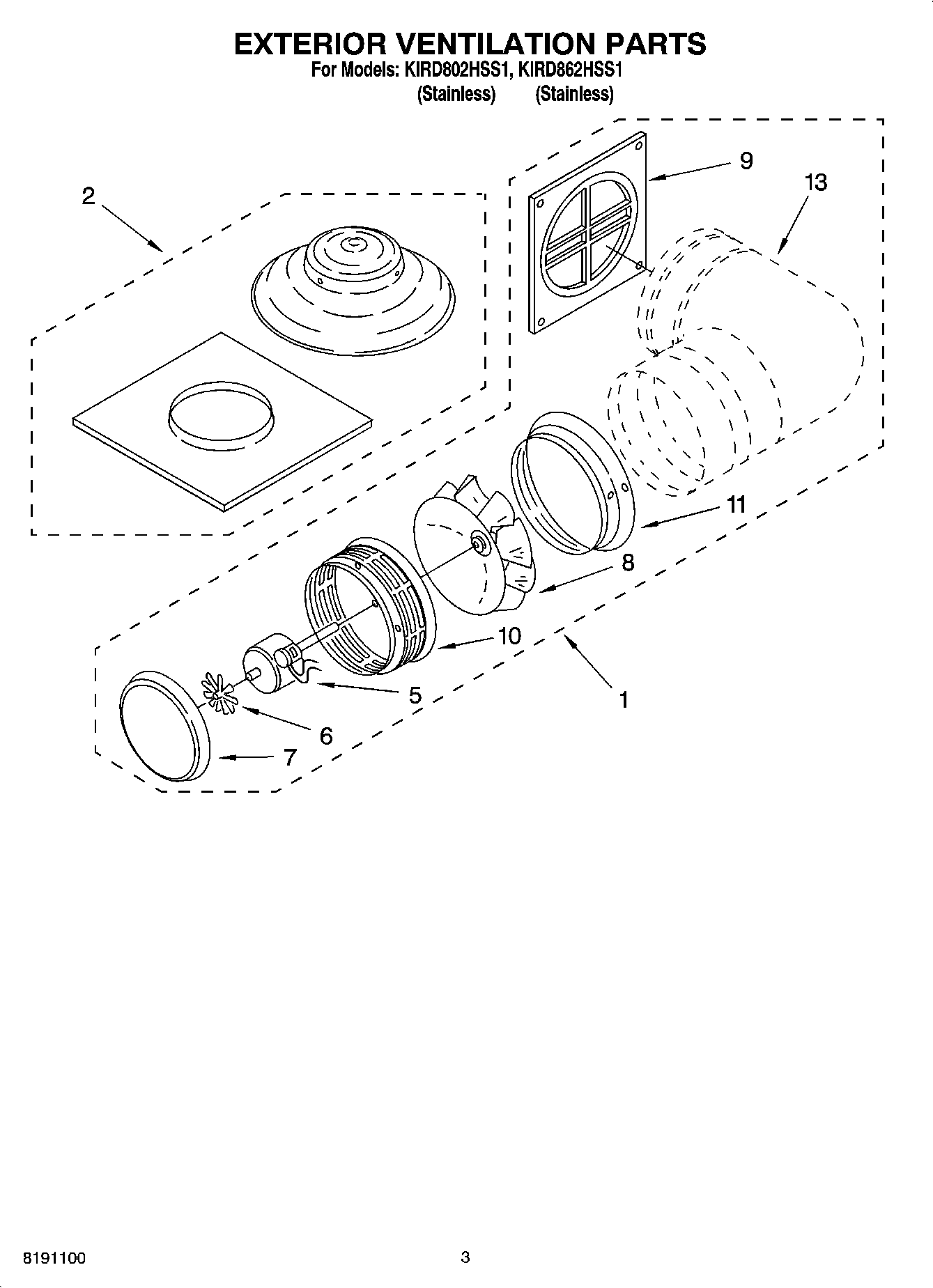

KIRD862HSS1 02 – EXTERIOR VENTILATION PARTS

Written by

Products

Position	Product
1	Power Unit Complete Model KPED890T
2	Roof Mounting Kit (Not Serviced)
5	Motor (Includes Capacitor & Cap)
6	Blade, Fan
7	Cover, Motor (Wall Mount)
8	Impeller (Not Serviced)
9	Plate, Adaptor (Not Serviced)
10	Housing, (Non-Serviceable)
11	Housing, Ring (Non-Serviceable)
13	9“ Elbow (Not Included, Purchase Locally)
