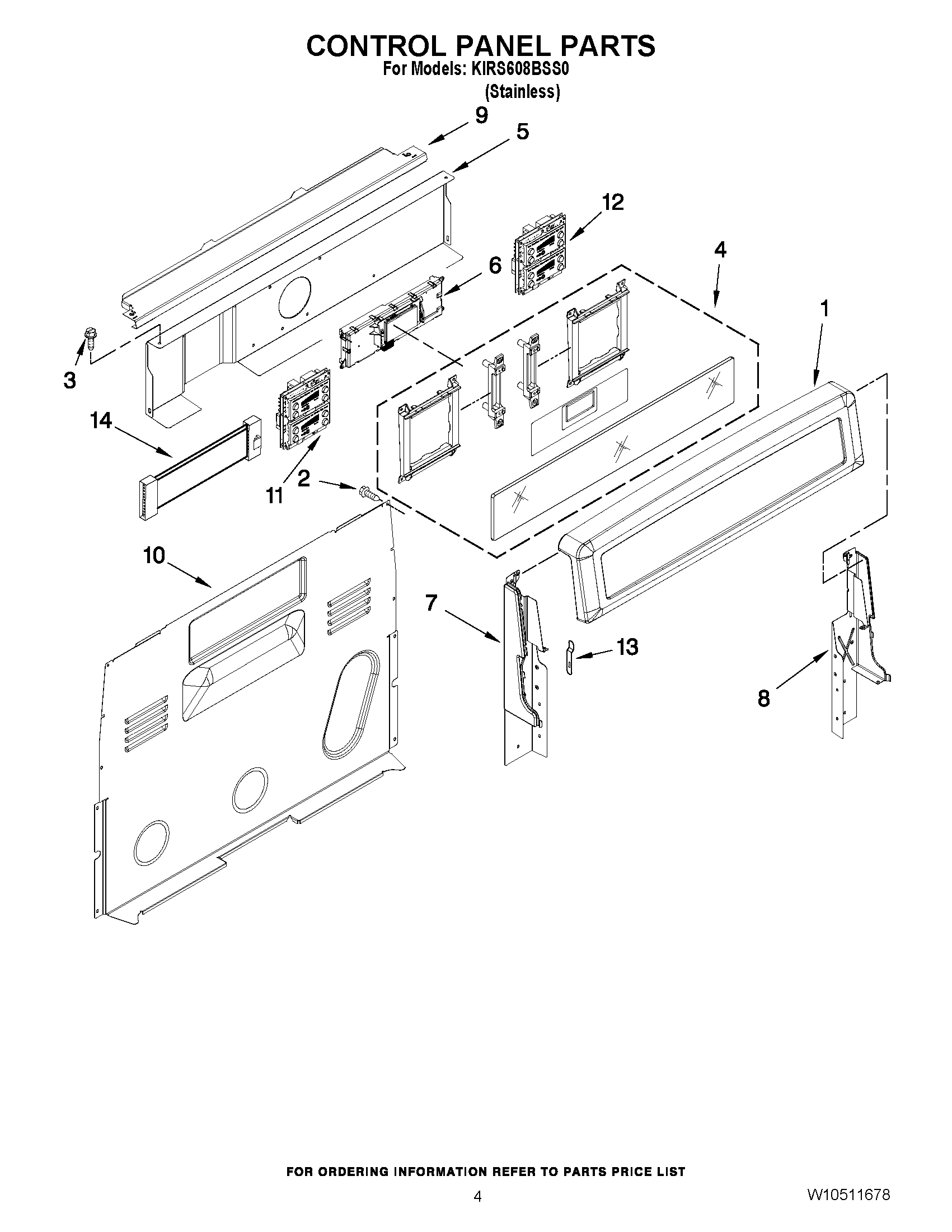

KIRS608BSS0 03 – CONTROL PANEL PARTS

KIRS608BSS0 03 – CONTROL PANEL PARTS

Written by

in

KIRS608BSS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (STAINLESS)
2WP3196557 Whirlpool Screw
3SCREW
4WPW10726780 Whirlpool Membrane Switch
5W10134247 Whirlpool Heat Shield
6WPW10686475-includeCORE Whirlpool WPW10686475 Refrigerator Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8W10409003 Whirlpool Endcap Panel
9W10525121 Whirlpool Control Bracket
10WP8272473 Whirlpool Rear Cover
11WPW10341840-includeCORE Whirlpool WPW10341840 Washer Electronic Control Board + Core
12WPW10553763-includeCORE Whirlpool WPW10553763 Refrigerator Electronic Control Board
133196200 Whirlpool Clip
14WPW10318787 Whirlpool Wire Harness
