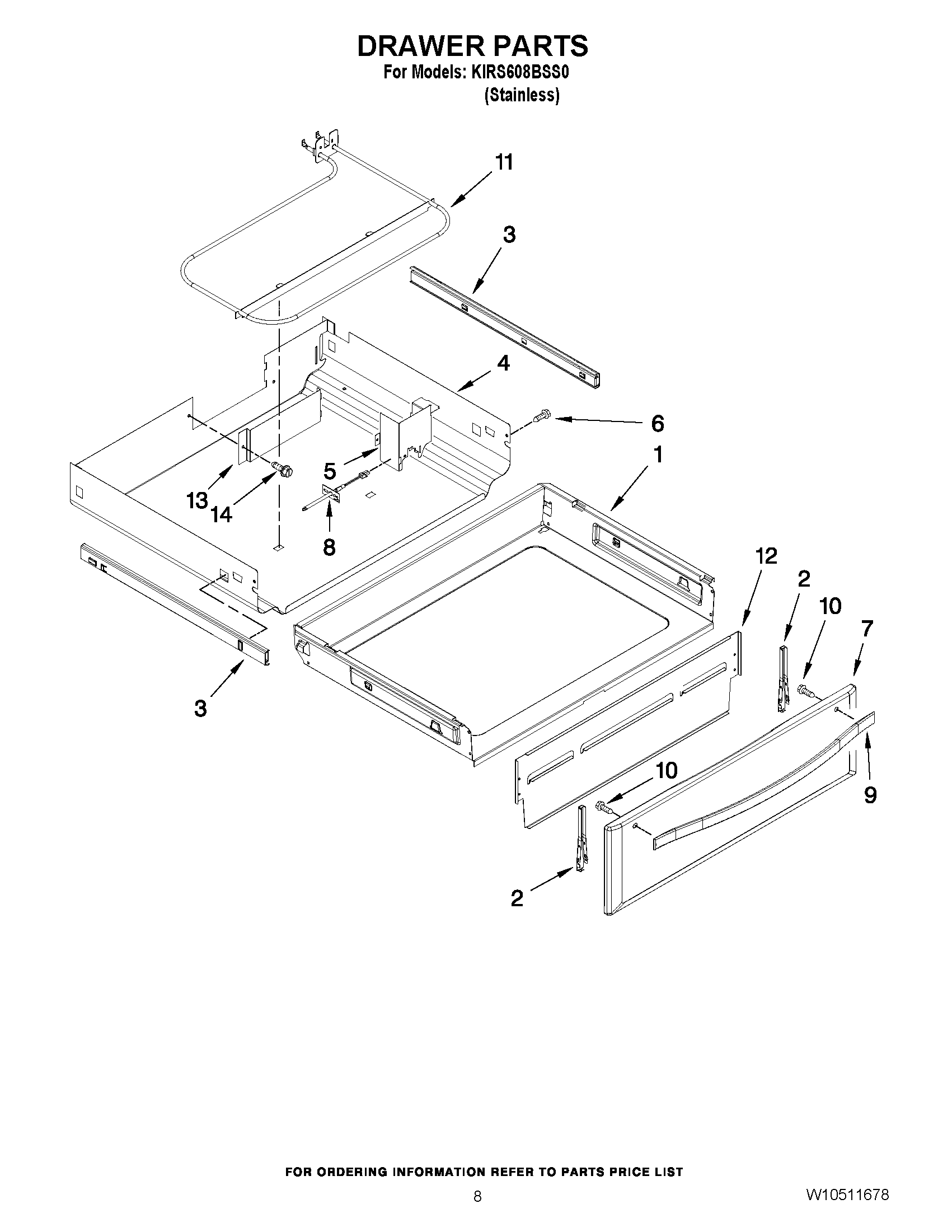

KIRS608BSS0 06 – DRAWER PARTS

KIRS608BSS0 06 – DRAWER PARTS

Written by

in

KIRS608BSS0 06 – DRAWER PARTS

Products

PositionProduct
1W10813962 Whirlpool Utility Drawer
2WPW10318027 Whirlpool Mounting Bracket
3WPW10441804 Whirlpool Drawer Slide
3WPW10441805 Whirlpool Slide Drawer
4W10634260 Whirlpool Utility Drawer
5W10634259 Whirlpool Wire Cover
6WP3196557 Whirlpool Screw
7W11334144 Whirlpool Drawer Panel
8WPW10131827 Whirlpool Sensor
9WPW10289076 Whirlpool Door Handle
10WP3400882 Whirlpool Screw
11WPW10323181 Whirlpool Surface Element
12W10324878 Whirlpool Panel Drawer
13W10325438 Whirlpool Cover Panel
14SCREW
