KIVD800TAL 01 – SECTION

Products

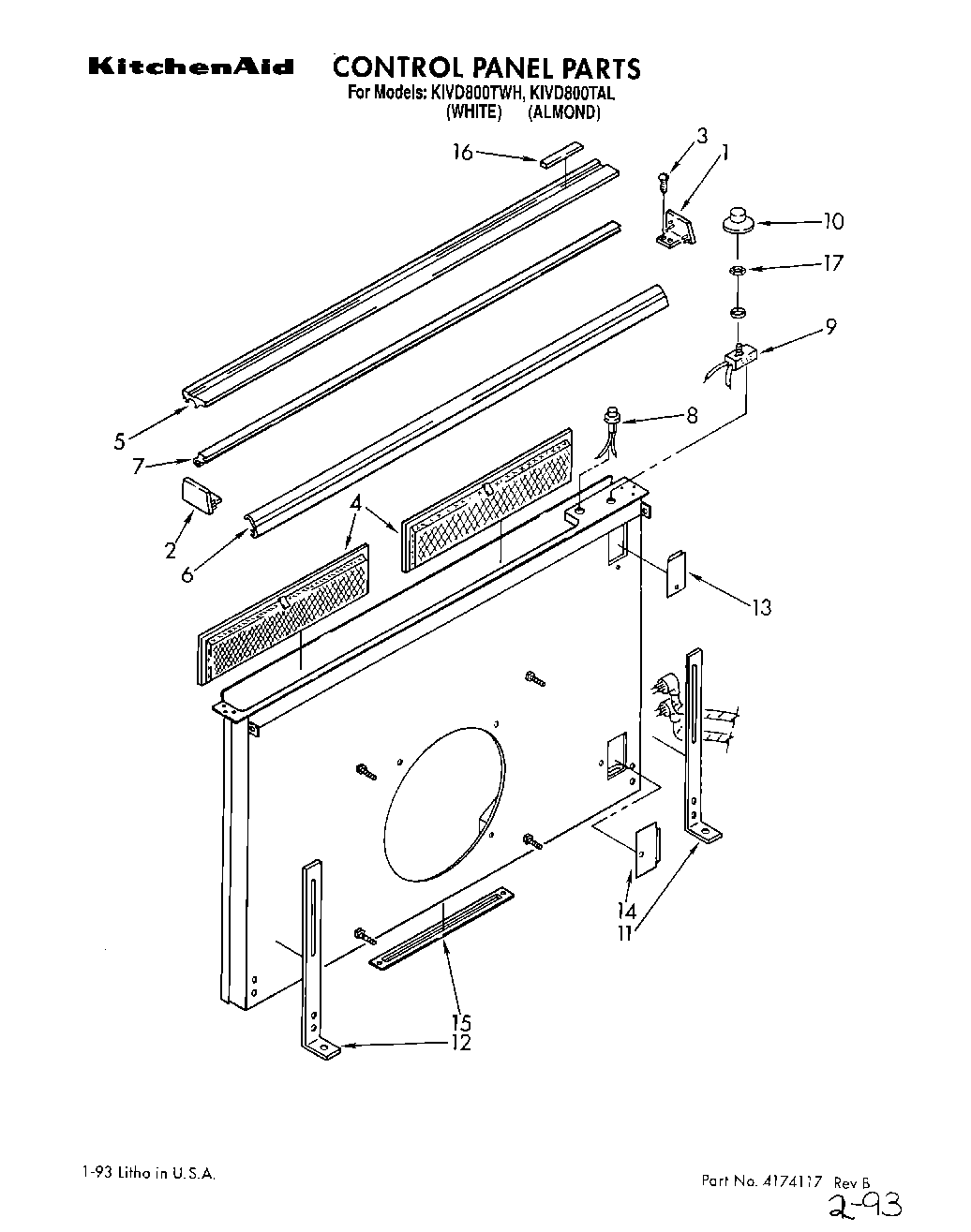

PositionProduct
Instructions, Installation
List, Repair Parts
Grease Filter Kit (Contains 2)
1End Cap – RH (Almond)
1End Cap – RH (White)
2End Cap – LH (White)
2End Cap – LH (Almond)
3Screw, End Cap No.8-32 x 1/2 (4)
4Filter, Grease (2 Required)
5Cover, Vent (Top) (Incl. No.16) (White)
5Cover, Vent (Top) (Incl. No.16) (Almond)
6Cover, Vent (Front) (Almond)
6Cover, Vent (Front) (White)
7Cover, Vent (Rear) (White)
7Cover, Vent (Rear) (Almond)
8Light, Indicator
9Switch, Control
10Knob, Control
11Leg – RH
12Leg – LH
13Plate, Cover (Control Switch)
14Plate, Cover (Junction Box)
15Trap, Grease
16Nameplate
17Nut (Control Switch)
