| Instructions, Installation |

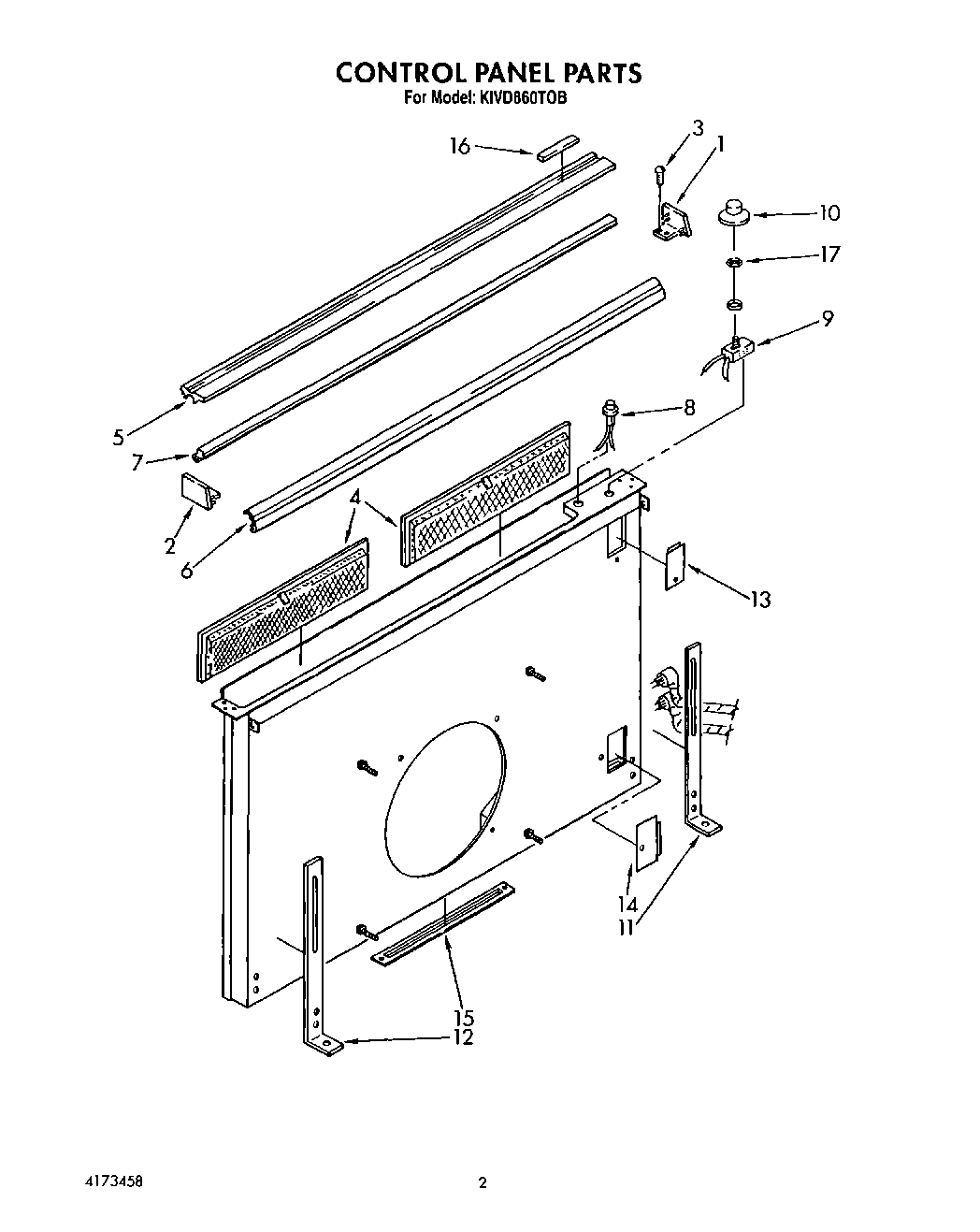

| List, Repair Parts |
| 1 | End Cap - RH |
| 2 | End Cap - LH |
| 3 | Screw, End Cap No.8-32 x 1/2 (4) (Black) |
| 4 | Filter, Grease (2 Required) |
| 5 | Cover, Vent (Top) (Incl. No.16) |
| 6 | Cover, Vent (Front) |
| 7 | Cover, Vent (Rear) |
| 8 | Light, Indicator |
| 9 | Switch, Control |
| 10 | Knob, Control |
| 11 | Leg - RH |
| 12 | Leg - LH |
| 13 | Plate, Cover (Control Switch) |
| 14 | Plate, Cover (Junction Box) |
| 15 | Trap, Grease |
| 16 | Nameplate |
| 17 | Nut (Control Switch) |
| 17 | Grease Filter Kit (Contains 2) |
