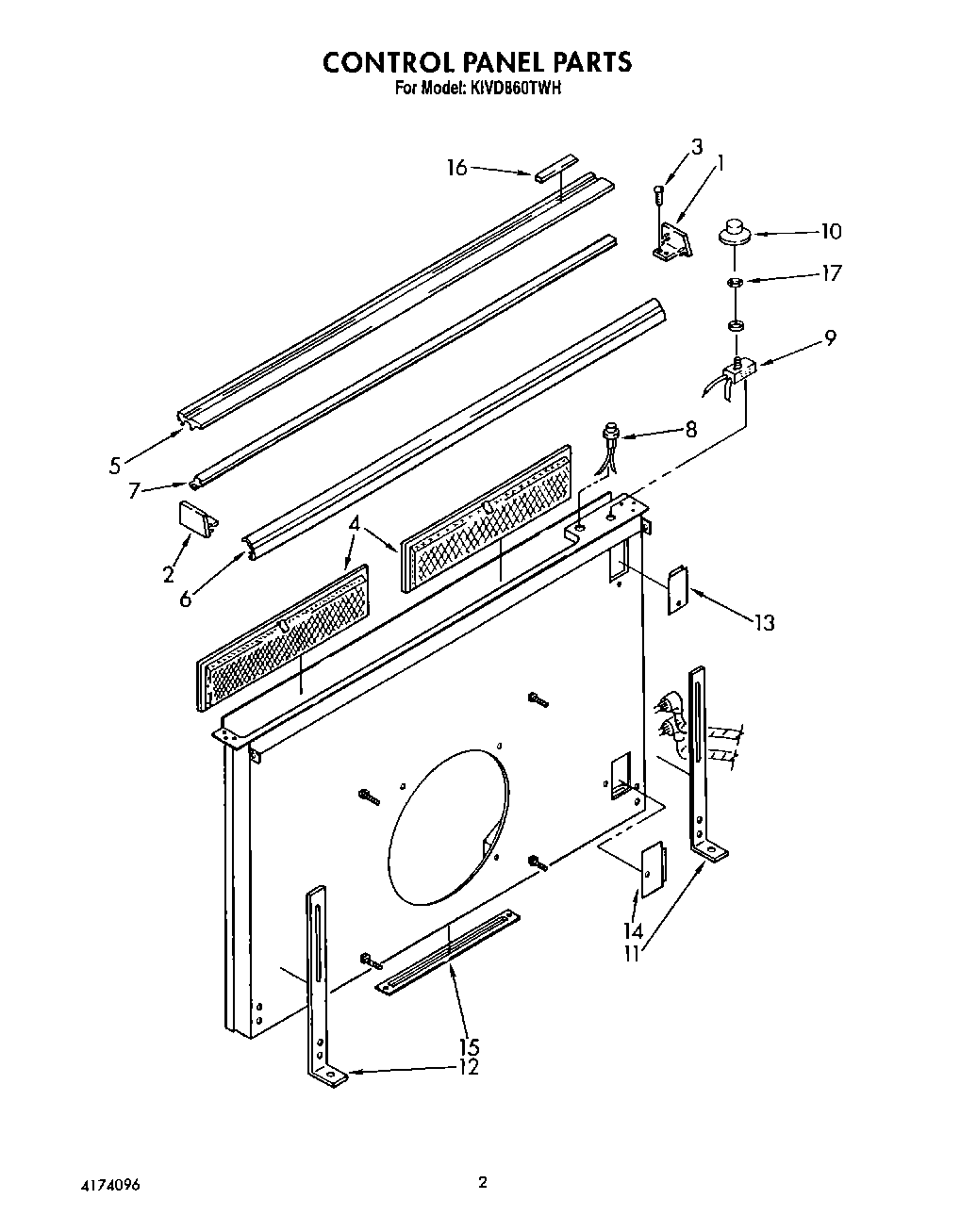

KIVD860TWH0 02 – SECTION

Products

Position	Product
	Instructions, Installation
	List, Repair Parts
1	End Cap – RH (White)
1	End Cap – RH (Almond)
2	End Cap – LH (White)
2	End Cap – LH (Almond)
3	Screw, End Cap No.8-32 x 1/2 (4)
4	Filter, Grease (2 Required)
5	Cover, Vent (Top) (Incl. No.16) (White)
5	Cover, Vent (Top) (Incl. No.16) (Almond)
6	Cover, Vent (Front) (White)
6	Cover, Vent (Front) (Almond)
7	Cover, Vent (Rear) (Almond)
7	Cover, Vent (Rear) (White)
8	Light, Indicator
9	Switch, Control
10	Knob, Control
11	Leg – RH
12	Leg – LH
13	Plate, Cover (Control Switch)
14	Plate, Cover (Junction Box)
15	Trap, Grease
16	Nameplate
17	Nut (Control Switch)
17	Grease Filter Kit (Contains 2)
