KJ408WCT1 1 – Aparts

KJ408WCT1 1

Products

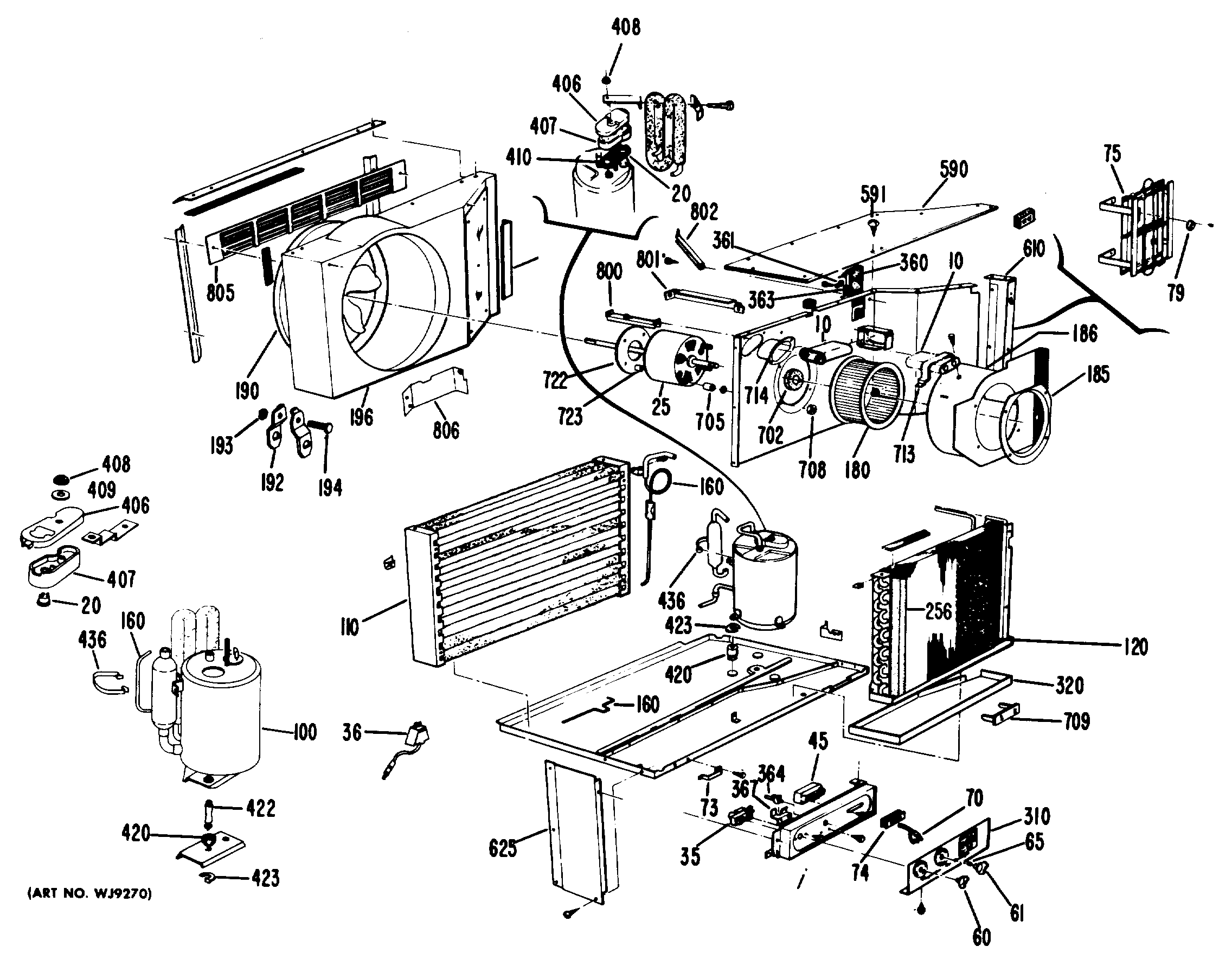

Position	Product
10	GEN WJ20X0353
20	GEN WP23X0014
25	FAN MOTOR
35	GEN WJ28X0507
45	GEN WJ26X0135
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0102
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	BEATER ASSEMBLY
100	GEN WJ98X0508
110	CONDENSER KIT
120	GEN WJ87X0195
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .042 CUT TO 15
180	GEN WJ74X0094
185	GEN WP76X0005
186	SCROLL ASSEMBLY INDOOR
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	SHROUD OUTDOOR
256	GASKET SEPARATE AIR
310	GEN WP07X0026
310	GEN WJ07X0575
320	DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	TERMINAL COVER
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
702	GEN WJ43X0240
705	GEN WJ01X0306
708	GEN WJ01X0445
713	GEN WJ03X0300
713	GEN WJ66X0373
800	BRACE
801	BRACE
802	BRACE
805	DEFLECTOR LOUVERED
806	DEFLECTOR
