KJ508ASQ1 2 – Aparts

KJ508ASQ1 2

Products

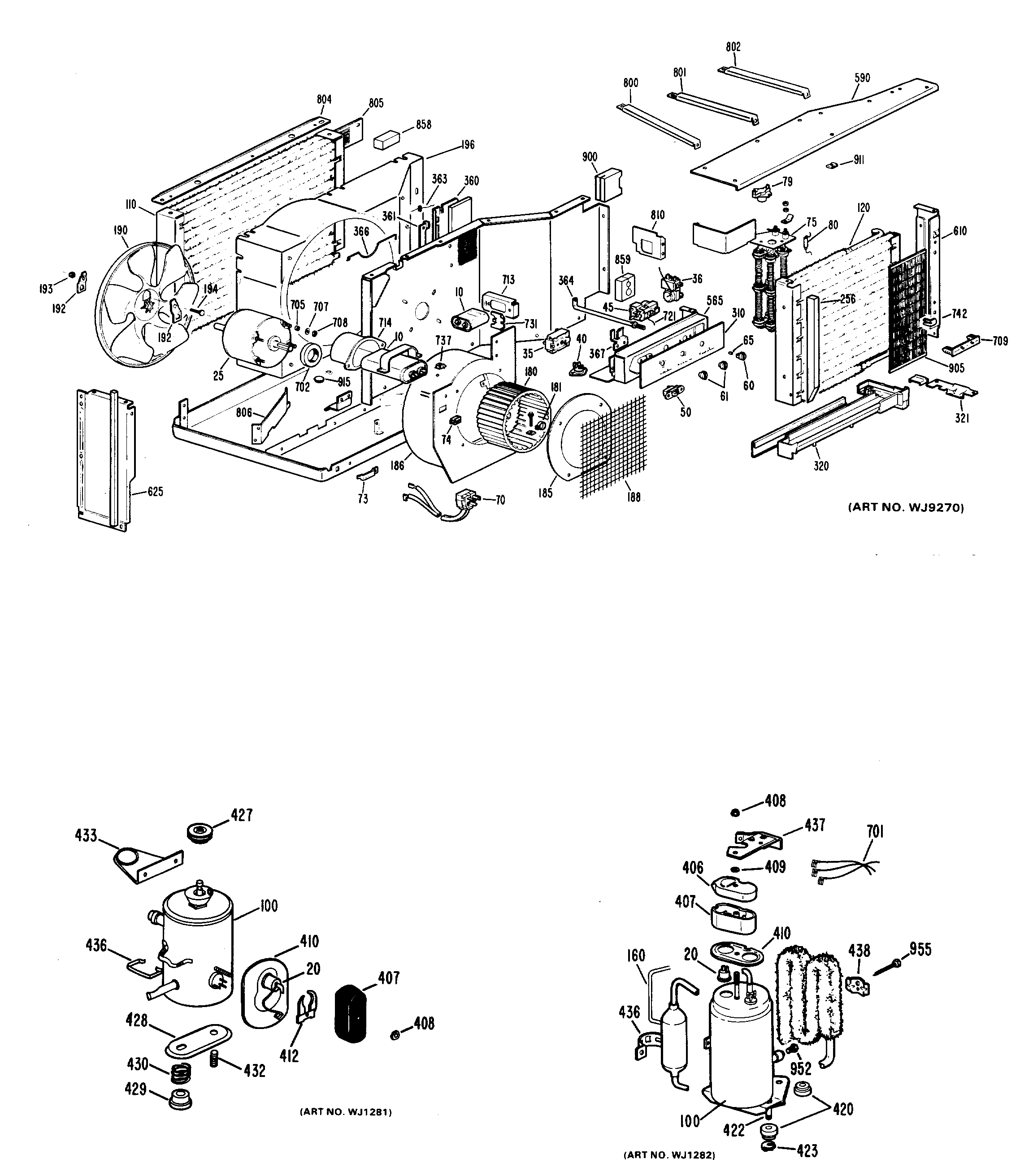

Position	Product
20	GEN WP23X0035
25	MOTOR FAN
35	GEN WJ28X0512
45	GEN WJ26X0219
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
160	CAPILLARY .036 CUT TO 14
160	CAPILLARY .042 CUT TO 15
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
185	GEN WP76X0005
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0251
256	GASKET SEPARATE AIR
310	GEN WJ07X0810
320	GEN WJ70X0298
321	COVER DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
701	GEN WJ36X0016
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
709	SINK HEAT
713	GEN WJ03X0300
713	GEN WJ66X0418
714	CUP CAPACITOR COVER
721	SLEEVE CAPILLARY THERM
737	GEN WJ02X0422
742	GEN WJ02X0443
800	BRACE
801	BRACE
802	BRACE
804	DEFLECTOR
805	DEFLECTOR LOUVERED
806	GEN WJ65X0325
858	GEN WJ60X0024
859	GEN WJ60X0025
900	GEN WJ43X0296
900	GEN WP60X0001
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
