KJ508WVT1 1 – Aparts

KJ508WVT1 1

Products

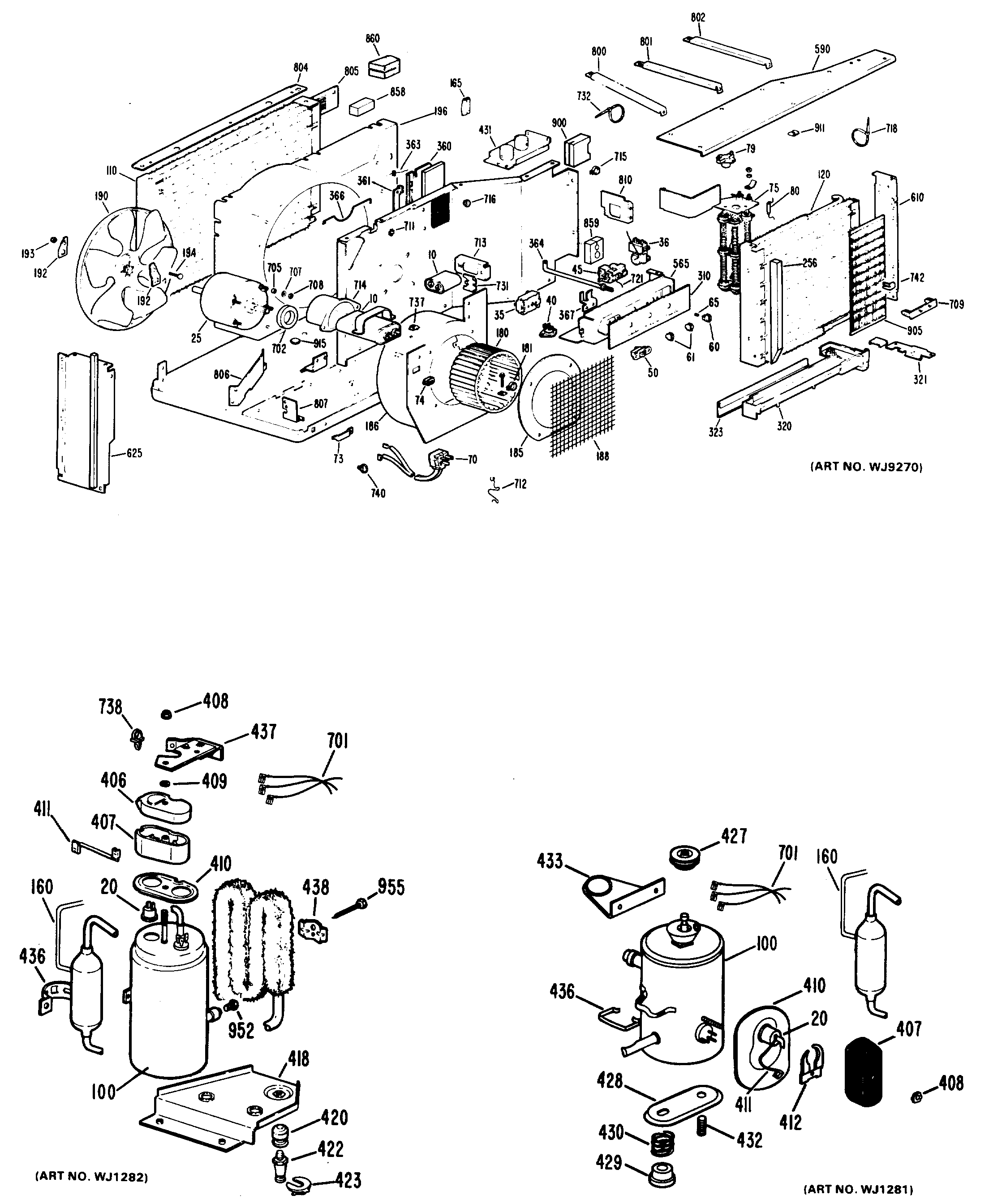

Position	Product
10	GEN WJ20X0546
10	GEN WJ20X0578
20	GEN WP23X0014
25	FAN MOTOR
35	GEN WJ28X0512
45	GEN WJ26X0219
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	GEN WJ35X0102
73	CLAMP POWER CORD
160	CAPILLARY .042 CUT TO 15
160	CAPILLARY .036 CUT TO 14
165	GEN WJ56X0073
165	GEN WJ56X0037
180	GEN WJ74X0094
181	BLOWER CLAMP ASSEMBLY
188	GEN WJ85X0109
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0259
256	GASKET SEPARATE AIR
310	GEN WJ07X0810
320	GEN WJ70X0298
321	COVER DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
366	LINK DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	GEN WJ79X0409
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
411	CONDUCTOR TERMINAL CAP
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
437	GEN WJ66X0426
438	GEN WJ03X0143
565	GEN WJ79X0389
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
701	GEN WJ36X0016
702	GEN WJ43X0240
705	GEN WJ01X0306
707	GEN WZ10X0152
708	GEN WJ01X0445
709	SINK HEAT
711	GEN WJ01X0662
713	GEN WJ66X0418
713	GEN WP03X0002
714	CUP CAPACITOR COVER
715	GEN WJ02X0411
715	GEN WJ02X0392
718	GEN WJ02X0416
721	SLEEVE CAPILLARY THERM
732	WIRE STRAP
737	GEN WJ02X0422
740	WIRE CLIP SNAP-IN
742	GEN WJ02X0443
800	BRACE
801	BRACE
802	BRACE
804	DEFLECTOR
805	DEFLECTOR LOUVERED
806	GEN WJ65X0325
807	BRACKET EVAPORATOR
858	GEN WJ60X0024
859	GEN WJ60X0025
860	GEN WJ43X0358
900	GEN WP60X0001
900	GEN WJ43X0296
952	SCREW 10-16 X 5/8" HEX
955	GEN WZ04X0268
