KJ807FNP1 1 – Aparts

KJ807FNP1 1

Products

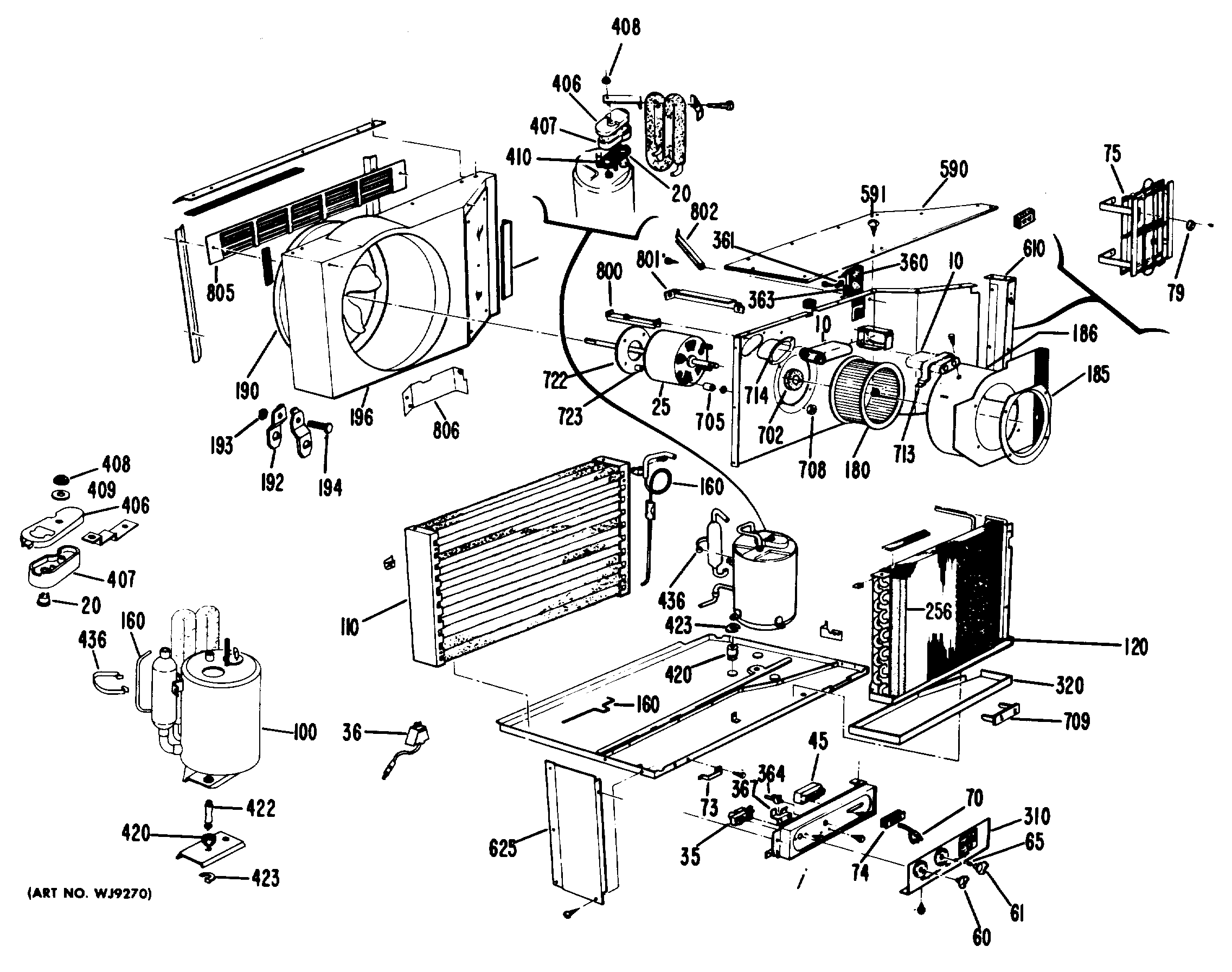

Position	Product
10	GEN WJ20X0317
10	CAPACITOR, FAN
20	GEN WJ23X0195
25	ADD CAPACITOR IF REQD
25	MOTOR FAN
35	GEN WJ28X0500
45	GEN WJ26X0135
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	BEATER ASSEMBLY
100	GEN WJ98X0516
110	GEN WJ88X0160
120	GEN WJ87X0195
160	CAPILLARY .034 CUT TO 16
160	CAPILLARY .039 CUT TO 15
180	GEN WJ74X0094
185	GEN WP76X0005
186	SCROLL ASSEMBLY INDOOR
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0224
256	GASKET SEPARATE AIR
310	GEN WJ07X0575
310	GEN WP07X0026
320	DRIP TRAY
360	GEN WJ70X0166
360	GEN WJ70X0283
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	TERMINAL COVER
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
590	TOP COVER ASSEMBLY
610	PANEL RIGHT SIDE FRONT
625	PANEL LEFT SIDE FRONT
702	GEN WJ43X0240
705	GEN WJ01X0306
708	GEN WJ01X0445
713	GEN WJ03X0300
713	GEN WJ66X0373
714	CUP CAPACITOR COVER
800	BRACE
801	BRACE
802	BRACE
805	DEFLECTOR LOUVERED
806	DEFLECTOR
