KJ906LTL1 ROOM AIR CONDITIONER

Products

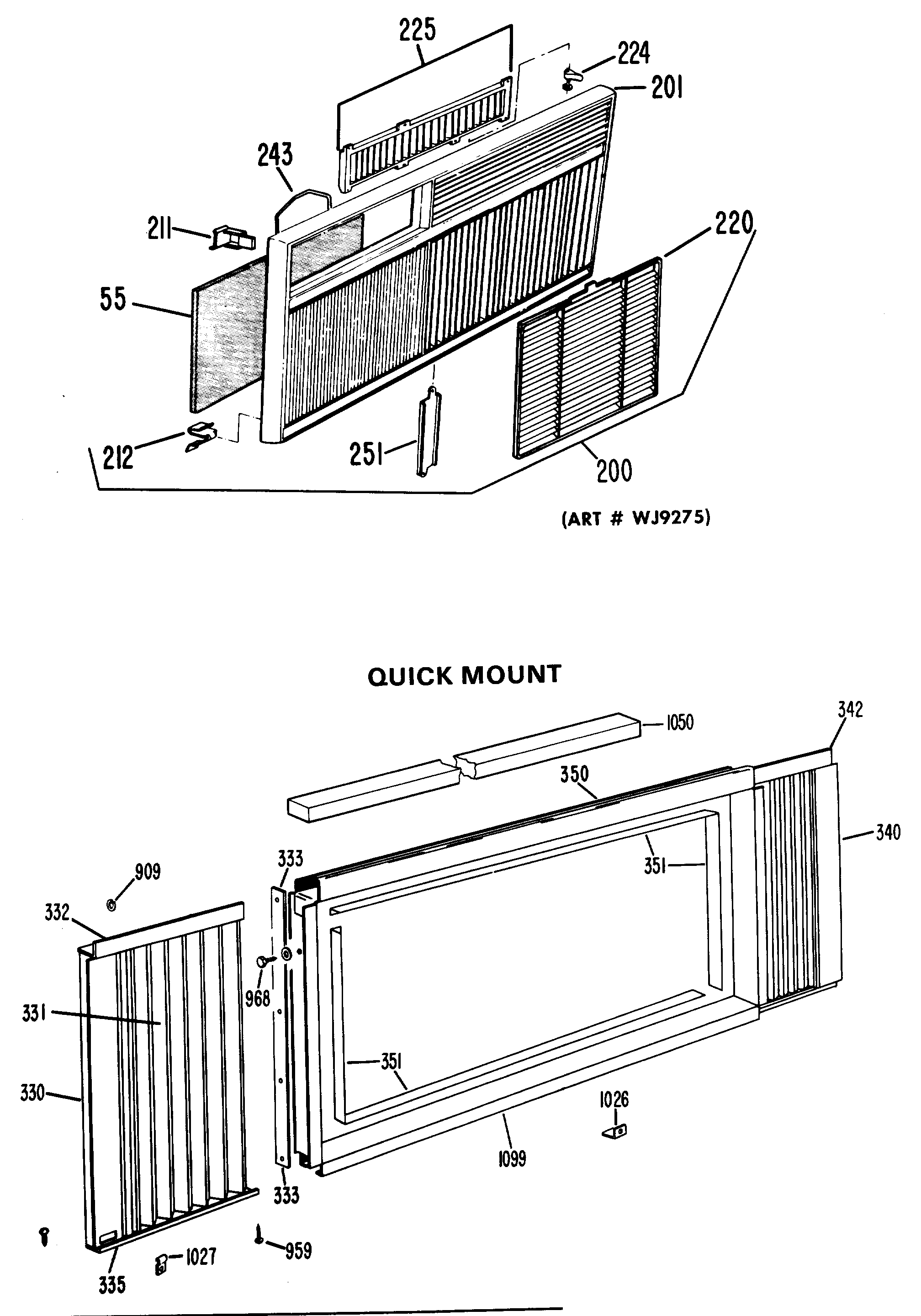

Position	Product
55	GEN WJ85X0110
200	GRILLE ASSEMBLY COMPLETE
201	GEN WJ71X0718
211	CLIP GRILLE TOP
212	CLIP GRILLE BOTTOM
216	GEN WJ07X0633
220	GEN WJ71X0200
224	GEN WJ04X0079
243	RETAINER FILTER
244	GEN WZ05X0145
251	GEN WJ71X0979
256	GASKET SEPARATE AIR
300	RAG13A GE Aluminum Exterior Grille
304	GEN WJ02X0203
305	GEN WJ41X0100
330	CHANNEL & CURTAIN ASM LH
331	GEN WJ69X0071
332	GEN WJ68X0067
333	CLOSURE CURTAIN
340	CHANNEL & CURTAIN ASM RH
342	GEN WJ68X0068
350	GEN WJ66X0352
351	SEAL FRAME TO CABINET
590	TOP COVER ASSEMBLY
600	GEN WJ90X0050
610	PANEL RIGHT SIDE FRONT
635	GEN WJ66X0391
724	GEN WJ02X0405
851	GEN WJ43X0369
852	GEN WJ43X0371
853	GEN WJ43X0370
909	GEN WJ02X0281
909	GEN WJ02X0359
931	NUT & LOCKWASHER 10-32
944	GEN WZ05X0242
953	SCREW 6-32 X 1/4" HEX
956	GEN WZ06X0108
957	SCREW 10-16 X 1/2" HEX
958	GEN WZ04X0264
959	SCREW 10-16 X 1/2" HEX
963	SCREW 8-18 X 3/4" HEX
965	GEN WZ04X0069
967	GEN WZ04X0275
968	SCREW 8-18 X 1/2 HEX
971	SCREW 10-16 X 3/4" TRUSS
983	GEN WZ05X0153
994	GEN WZ04X0362
1000	GEN WJ41X0101
1020	GEN WJ01X0449
1025	GEN WJ66X0221
1026	GEN WJ66X0228
1027	CLAMP CLOSURE PANEL
1050	GEN WJ43X0162
1099	GEN WJ86X0175
5000	PUSHON TERMINAL 1/4" TAB
5000	GEN WJ02X0406
32767	GEN 31-7046
32767	GEN 39-7073
32767	GEN 30-7822
32767	GEN 30-7507
32767	GEN WJ71X0971
32767	GEN WJ00X0329
32767	GEN WJ00X0328
32767	GEN WJ00X0315
32767	GEN WJ00X0103
32767	GEN 30-7649
32767	GEN WJ98X0718
