KJ906LTL2 ROOM AIR CONDITIONER

KJ906LTL2 ROOM AIR CONDITIONER

Written by

in

KJ906LTL2 ROOM AIR CONDITIONER

Products

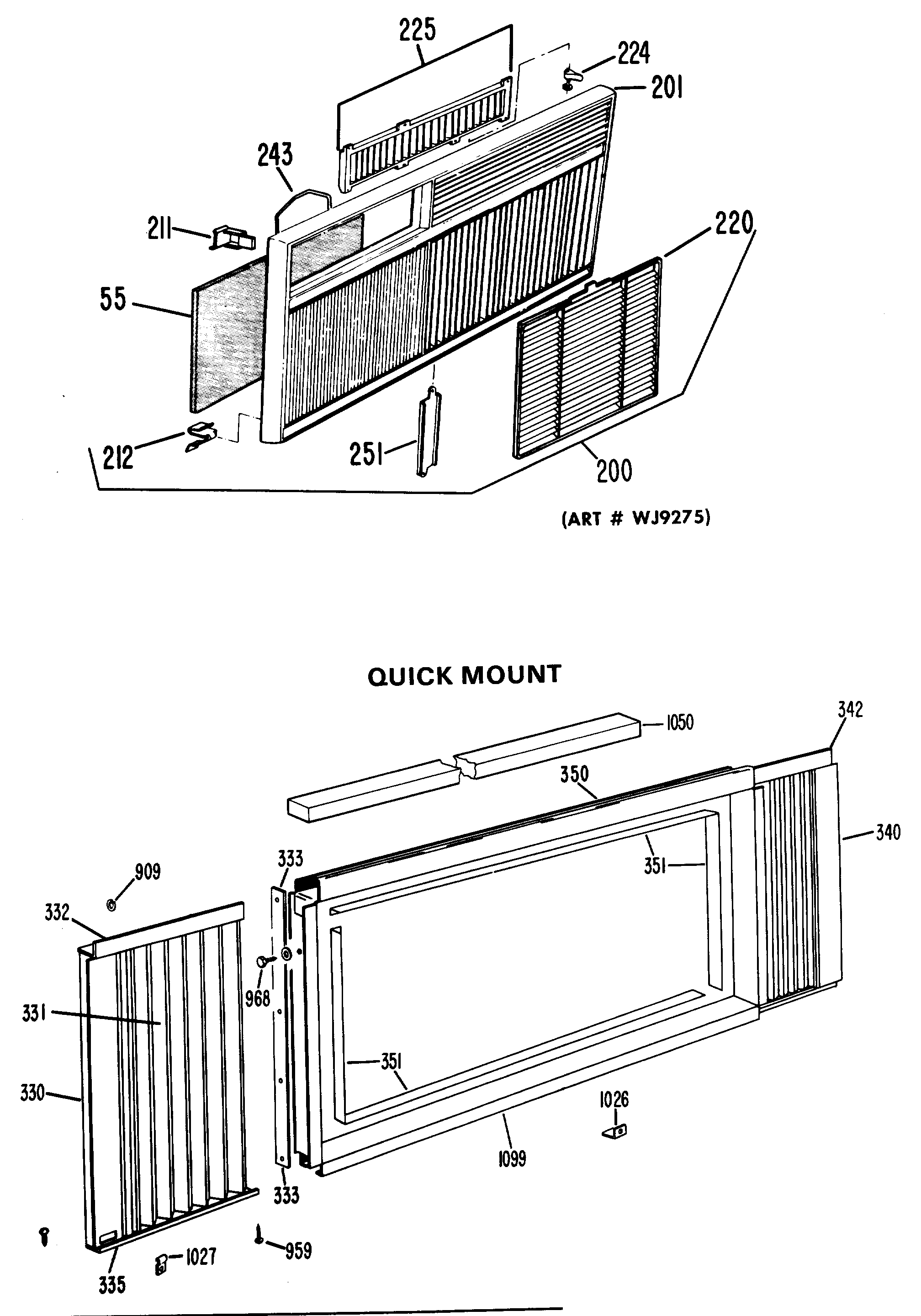

PositionProduct
55GEN WJ85X0110
200GRILLE ASSEMBLY COMPLETE
201GEN WJ71X0718
211CLIP GRILLE TOP
212CLIP GRILLE BOTTOM
216GEN WJ07X0633
220GEN WJ71X0200
224GEN WJ04X0079
243RETAINER FILTER
244GEN WZ05X0145
251GEN WJ71X0979
256GASKET SEPARATE AIR
300RAG13A GE Aluminum Exterior Grille
304GEN WJ02X0203
305GEN WJ41X0100
330CHANNEL & CURTAIN ASM LH
331GEN WJ69X0071
332GEN WJ68X0067
333CLOSURE CURTAIN
340CHANNEL & CURTAIN ASM RH
342GEN WJ68X0068
350GEN WJ66X0352
351SEAL FRAME TO CABINET
590TOP COVER ASSEMBLY
600GEN WJ90X0050
610PANEL RIGHT SIDE FRONT
635GEN WJ66X0391
724GEN WJ02X0405
851GEN WJ43X0369
852GEN WJ43X0371
853GEN WJ43X0370
909GEN WJ02X0281
909GEN WJ02X0359
931NUT & LOCKWASHER 10-32
944GEN WZ05X0242
953SCREW 6-32 X 1/4" HEX
956GEN WZ06X0108
957SCREW 10-16 X 1/2" HEX
958GEN WZ04X0264
959SCREW 10-16 X 1/2" HEX
963SCREW 8-18 X 3/4" HEX
965GEN WZ04X0069
967GEN WZ04X0275
968SCREW 8-18 X 1/2 HEX
971SCREW 10-16 X 3/4" TRUSS
983GEN WZ05X0153
994GEN WZ04X0362
1000GEN WJ41X0101
1020GEN WJ01X0449
1025GEN WJ66X0221
1026GEN WJ66X0228
1027CLAMP CLOSURE PANEL
1050GEN WJ43X0162
1099GEN WJ86X0175
5000PUSHON TERMINAL 1/4" TAB
5000GEN WJ02X0406
32767GEN 31-7046
32767GEN 30-7822
32767GEN 30-7507
32767GEN WJ71X0971
32767GEN WJ00X0329
32767GEN WJ00X0328
32767GEN WJ00X0315
32767GEN WJ00X0103
32767GEN 30-7649
32767GEN 39-7073
