KJ910AMT1 1 – Aparts

KJ910AMT1 1

Products

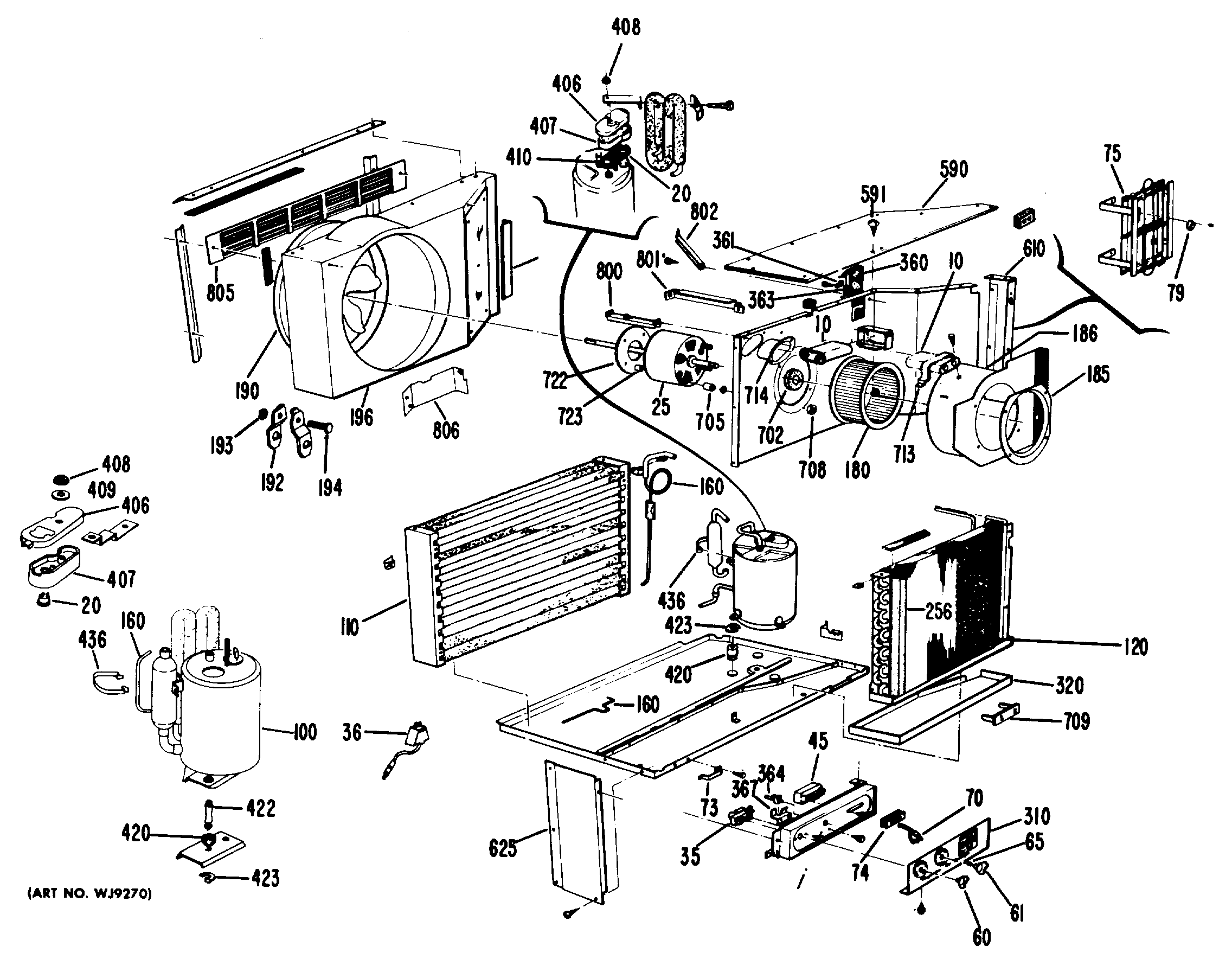

Position	Product
10	GEN WJ20X0388
10	GEN WJ20X0321
20	GEN WP23X0043
25	MOTOR FAN
25	ADD CAPACITOR IF REQD
35	GEN WJ28X0500
45	GEN WJ26X0135
60	GEN WJ12X0128
61	GEN WJ12X0129
65	KNOB SPRING
70	POWER CORD
73	CLAMP POWER CORD
74	GROMMET CORD POWER
75	BEATER ASSEMBLY
100	GEN WJ98X0545
110	GEN WJ88X0160
120	GEN WJ87X0210
160	GEN WJ53X0138
180	GEN WJ74X0094
185	GEN WP76X0005
186	SCROLL ASSEMBLY INDOOR
190	OUTDOOR FAN WITH SLINGER
192	GEN WJ03X0215
193	FAN NUT
194	FAN SCREW
196	GEN WJ76X0224
310	GEN WJ07X0700
320	DRIP TRAY
360	GEN WJ70X0283
360	GEN WJ70X0166
361	DAMPER DOOR HINGE CLAMP
363	GEN WJ02X0397
364	SHAFT DAMPER DOOR
367	GEN WJ03X0211
406	TERMINAL CAP
407	TERMINAL COVER
408	GEN WJ01X0292
409	GEN WP01X0005
410	GEN WJ43X0333
420	GEN WJ01X0609
422	GEN WJ01X0608
423	GEN WJ02X0360
436	ACCUMULATOR CLAMP
590	TOP COVER ASSEMBLY
625	PANEL LEFT SIDE FRONT
702	GEN WJ43X0240
705	GEN WJ01X0306
708	GEN WJ01X0445
713	GEN WJ03X0300
713	GEN WJ66X0373
713	GEN WJ03X0279
714	CUP CAPACITOR COVER
800	BRACE
801	BRACE
802	BRACE
805	DEFLECTOR LOUVERED
806	GEN WJ65X0325
