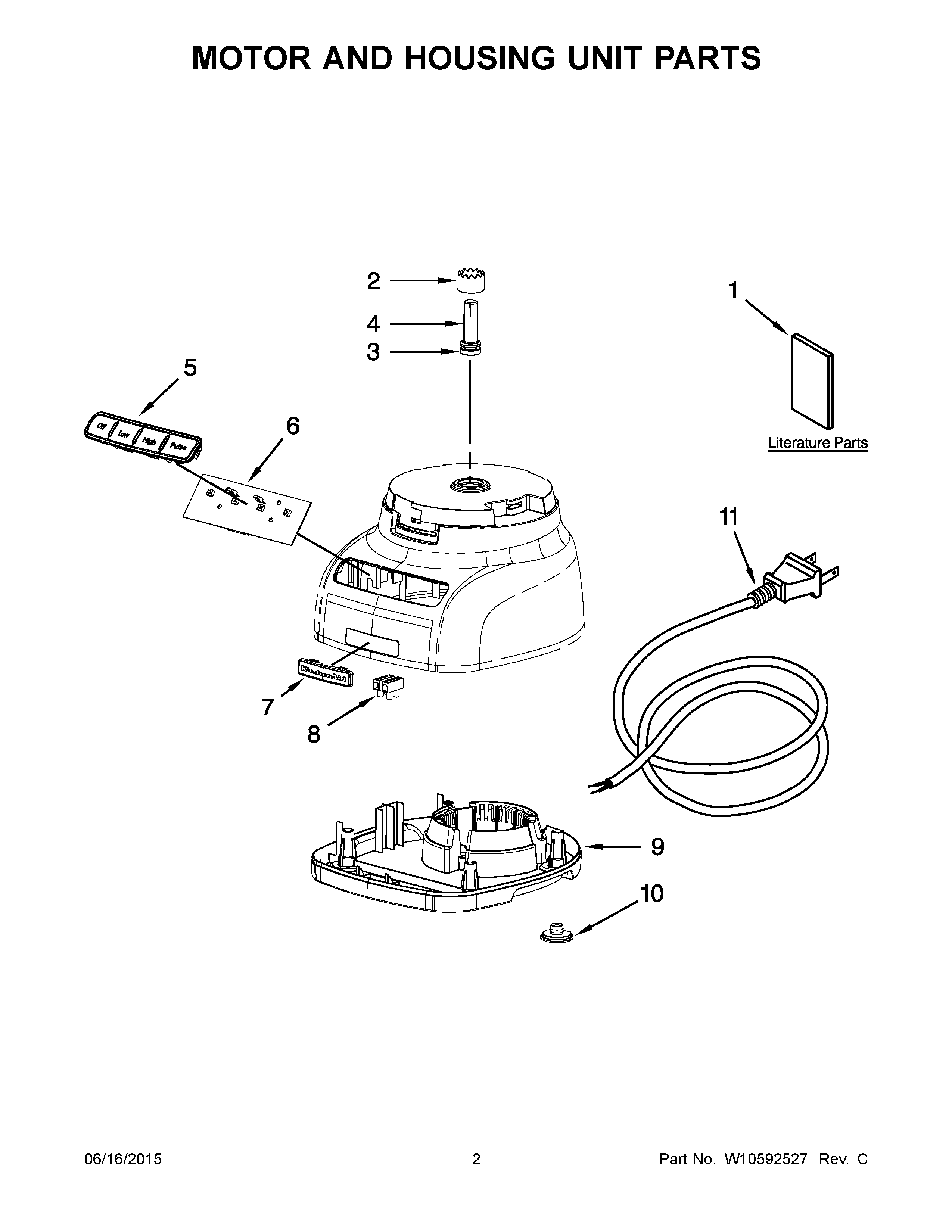

KJA13AVANA0 02 – MOTOR AND HOUSING UNIT PARTS

KJA13AVANA0 02 – MOTOR AND HOUSING UNIT PARTS

Written by

in

KJA13AVANA0 02 – MOTOR AND HOUSING UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	WPW10451327 Whirlpool Support
3	WPW10451328 Whirlpool Bearing
4	WPW10451326 Whirlpool Adapter
5	W10592795 Whirlpool Overlay
6	WPW10592812 Whirlpool Panel Switch
6A	WPW10592796 Whirlpool Panel Switch
7	NAMEPLATE
8	BLOCK, TERMINAL
9	WPW10451321 Whirlpool Base
9A	BASE, HOUSING (220V)
10	W10451320 Whirlpool Foot Assembly
11	POWER CORD (120V/127V (BRAZIL))
