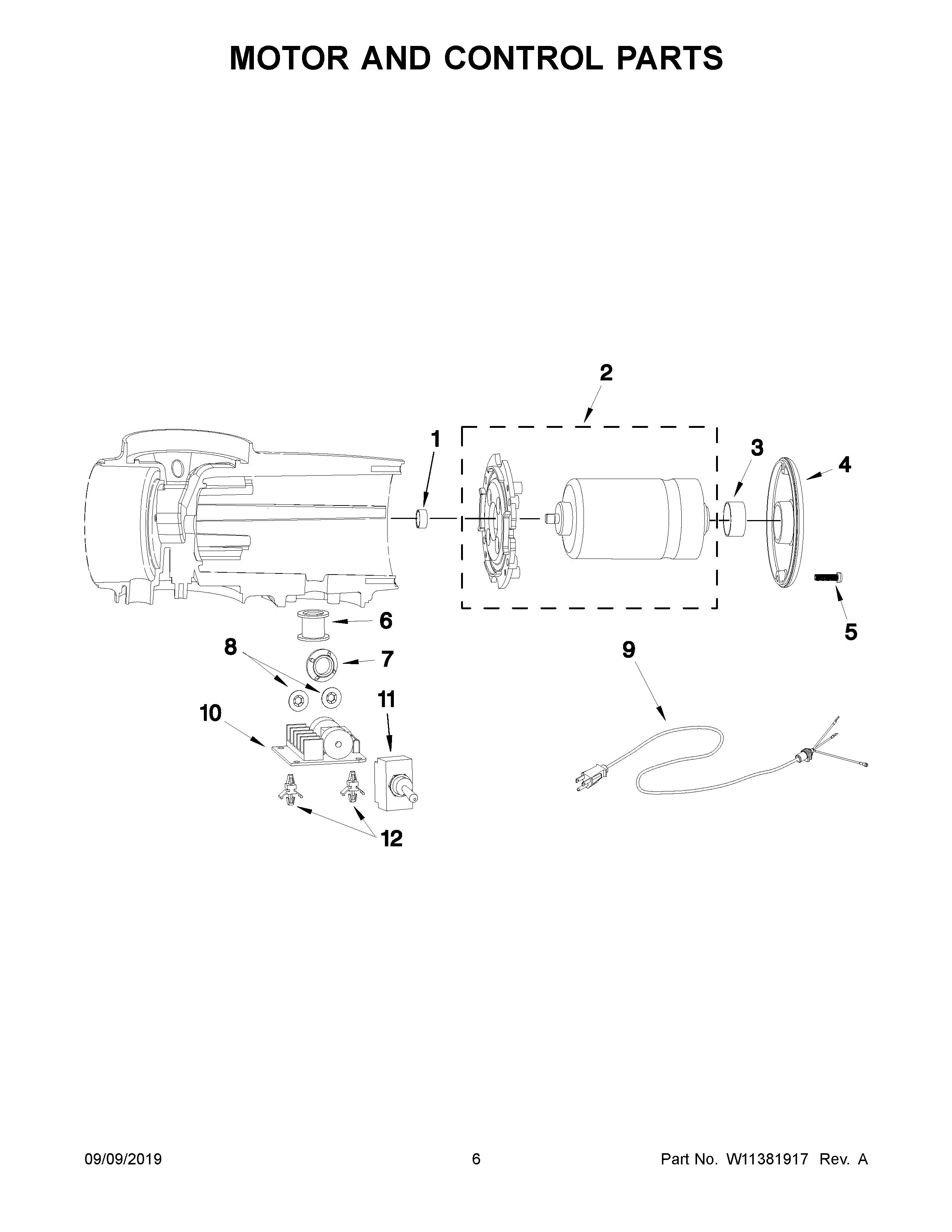

KJE22AEANA0 04 – MOTOR AND CONTROL PARTS

Written by

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	BRUSH, CLEANING
NI	SCOOP, COFFEE
1	BUSHING, COPPER
2	W10845881 Whirlpool Motor Assembly
3	SEAL, VIBRATION
4	CAP, MOTOR (ONYX BLACK)
5	SCREW, MOTOR CAP
6	TUBE, HOUSING
7	NUT, SWITCH
8	4176713 Whirlpool Washer
9	POWER CORD
10	CONTROL BOARD
11	4176758 Whirlpool Switch
12	SPACER
