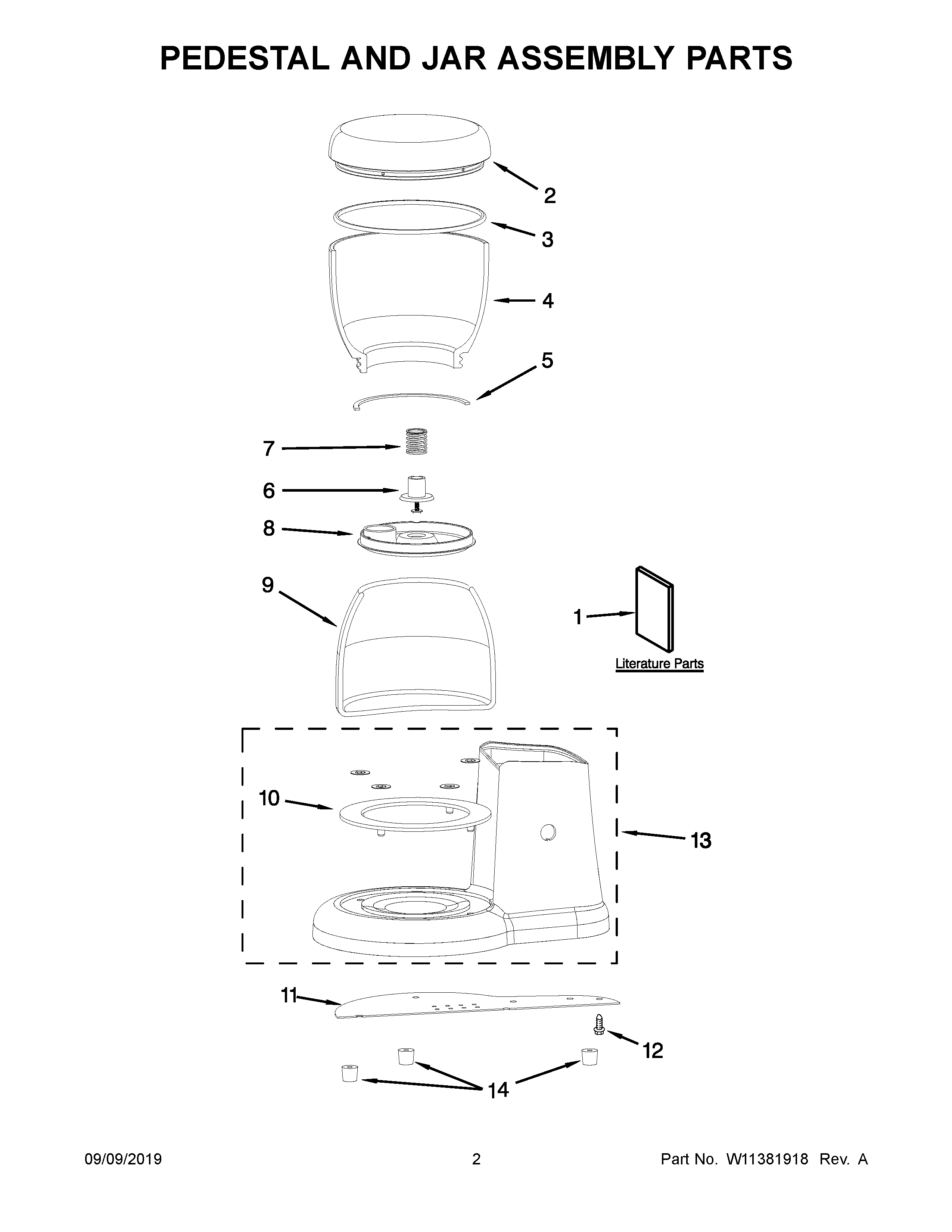

KJE22AEBNA0 02 – PEDESTAL AND JAR ASSEMBLY PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11399438 Whirlpool Lid
34176731 Whirlpool Seal
4JAR, BEAN (INCLUDES ITEM 5)
54176729 Whirlpool Seal Assembly
6NOZZLE, HOLDER
7SPRING, HOUSING
84176721 Whirlpool Cover
9WP4176728 Whirlpool Jar
104176722 Whirlpool Ring Assembly
11COVER, BASEPLATE
12SCREW
13BASE ASSEMBLY (INCLUDES TOGGLE SWITCH) (ONYX BLACK)
14FOOT, BASE
