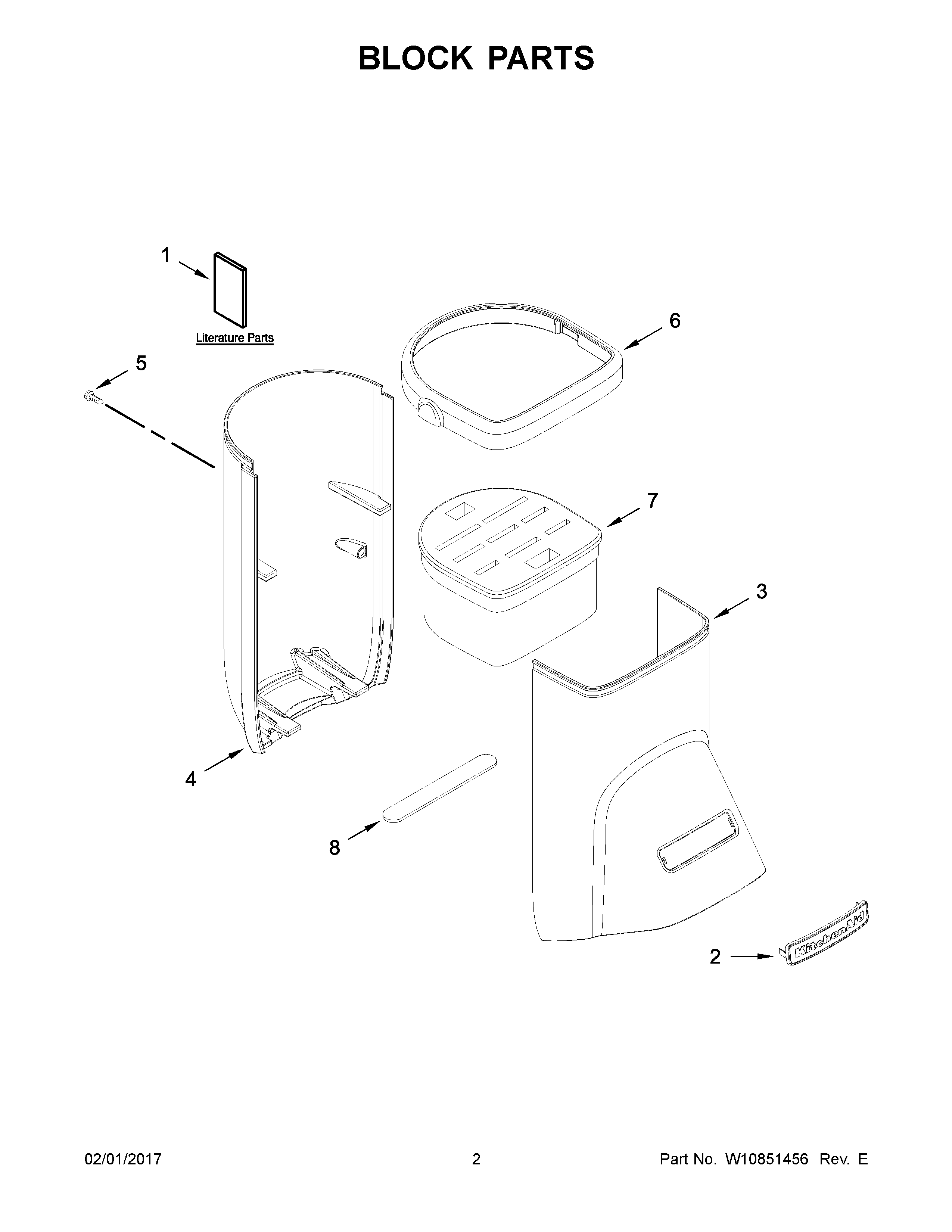

KKFMA01SR0 02 – BLOCK PARTSadmin2025-04-26T11:57:47+00:00KKFMA01SR0 02 – BLOCK PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE (7 PIECE SET) |
| 1A | USE & CARE GUIDE (BLOCK) |
| 2 | BADGE |
| 3G | HOUSING, LOWER (SUGAR PEARL SILVER) |
| 3F | HOUSING, LOWER (RASPBERRY ICE) |
| 3E | HOUSING, LOWER (ONYX BLACK) |
| 3D | HOUSING, LOWER (FROSTED PEARL) |
| 3C | HOUSING, LOWER (EMPIRE RED) |
| 3B | HOUSING, LOWER (CANDY APPLE) |
| 3A | HOUSING, LOWER (AQUA SKY) |
| 3 | HOUSING, LOWER (ALMOND CREME) |
| 4E | HOUSING, UPPER (ONYX BLACK) |
| 4D | HOUSING, UPPER (FROSTED PEARL) |
| 4C | HOUSING, UPPER (EMPIRE RED) |
| 4B | HOUSING, UPPER (CANDY APPLE) |
| 4A | HOUSING, UPPER (AQUA SKY) |
| 4 | HOUSING, UPPER (ALMOND CREME) |
| 4G | HOUSING, UPPER (SUGAR PEARL SILVER) |
| 4F | HOUSING, UPPER (RASPBERRY ICE) |
| 5 | WPW10001160 Whirlpool Refrigerator Screw |
| 6 | TRIM RING |
| 7 | WOODEN BLOCK |
| 8 | FOOT |
