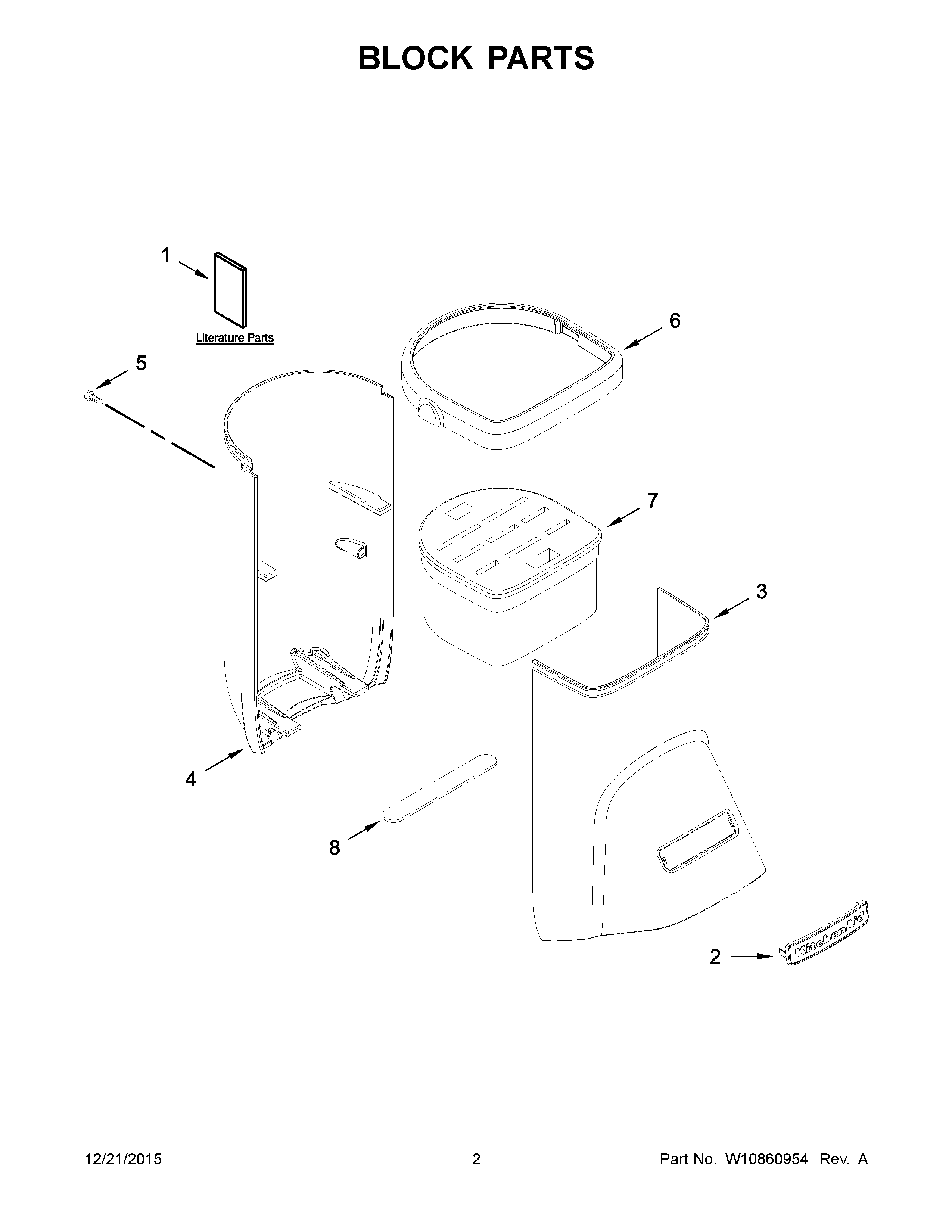

KKFMA11FP0 02 – BLOCK PARTS

Products

PositionProduct
1USE & CARE GUIDE (7 PIECE SET)
2BADGE
3BHOUSING, LOWER (ONYX BLACK)
3HOUSING, LOWER (CANDY APPLE)
3AHOUSING, LOWER (FROSTED PEARL)
3CHOUSING, LOWER (SUGAR PEARL SILVER)
4AHOUSING, UPPER (FROSTED PEARL)
4CHOUSING, UPPER (SUGAR PEARL SILVER)
4HOUSING, UPPER (CANDY APPLE)
4BHOUSING, UPPER (ONYX BLACK)
5WPW10001160 Whirlpool Refrigerator Screw
6TRIM RING
7WOODEN BLOCK
8FOOT
