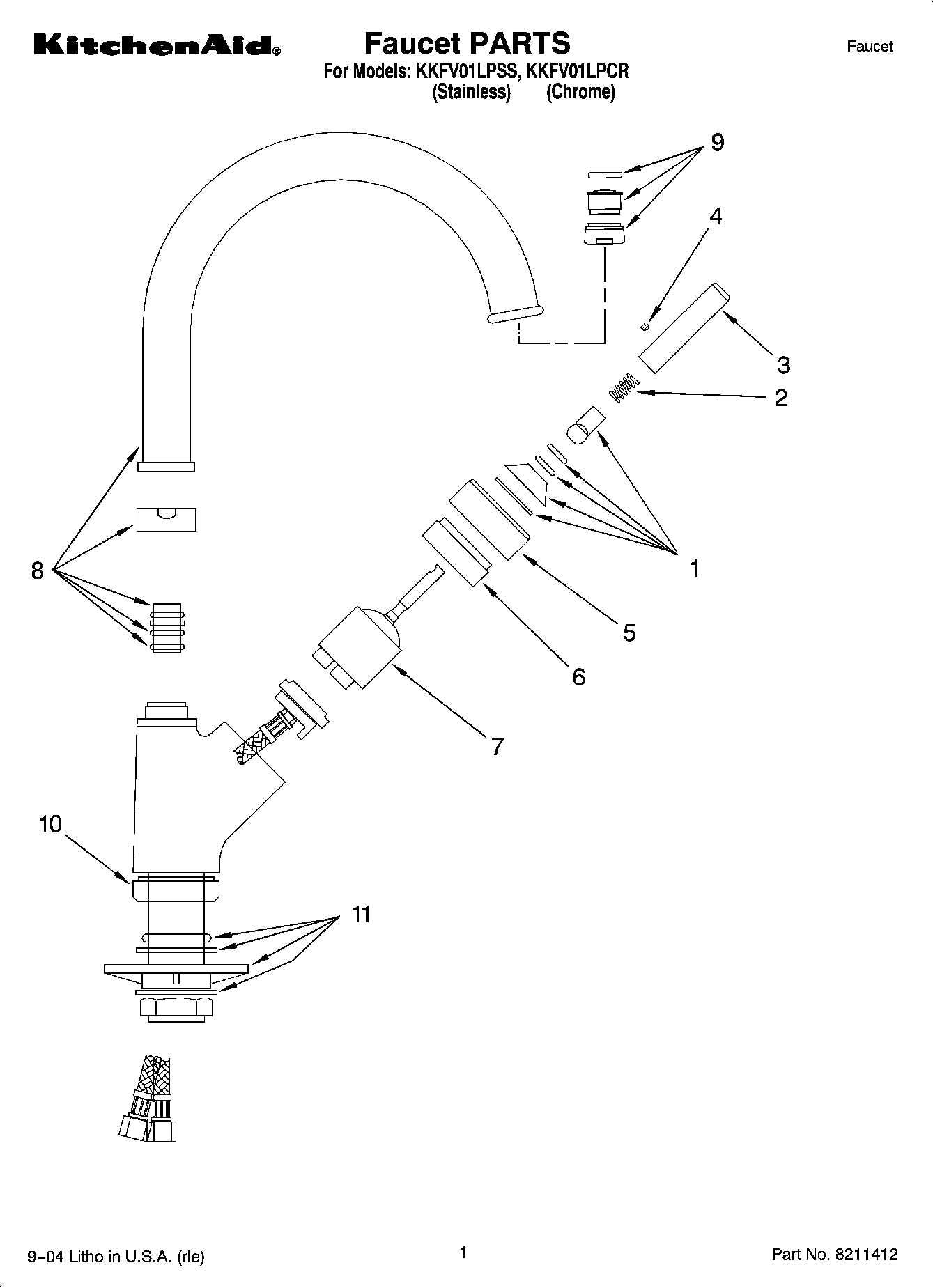

KKFV01LPCR 01 – Faucet PARTS

Written by

Products

Position	Product
1	Lever, Base Assembly (Not Serviced)
2	Spring (Not Serviced)
3	Lever (Not Serviced)
4	Screw (Not Serviced)
5	Cap (Not Serviced)
6	Nut (Not Serviced)
7	Cartridge
8	Spout Assembly (Not Serviced)
9	Aerator
10	Base (Not Serviced)
11	Mounting Assembly
