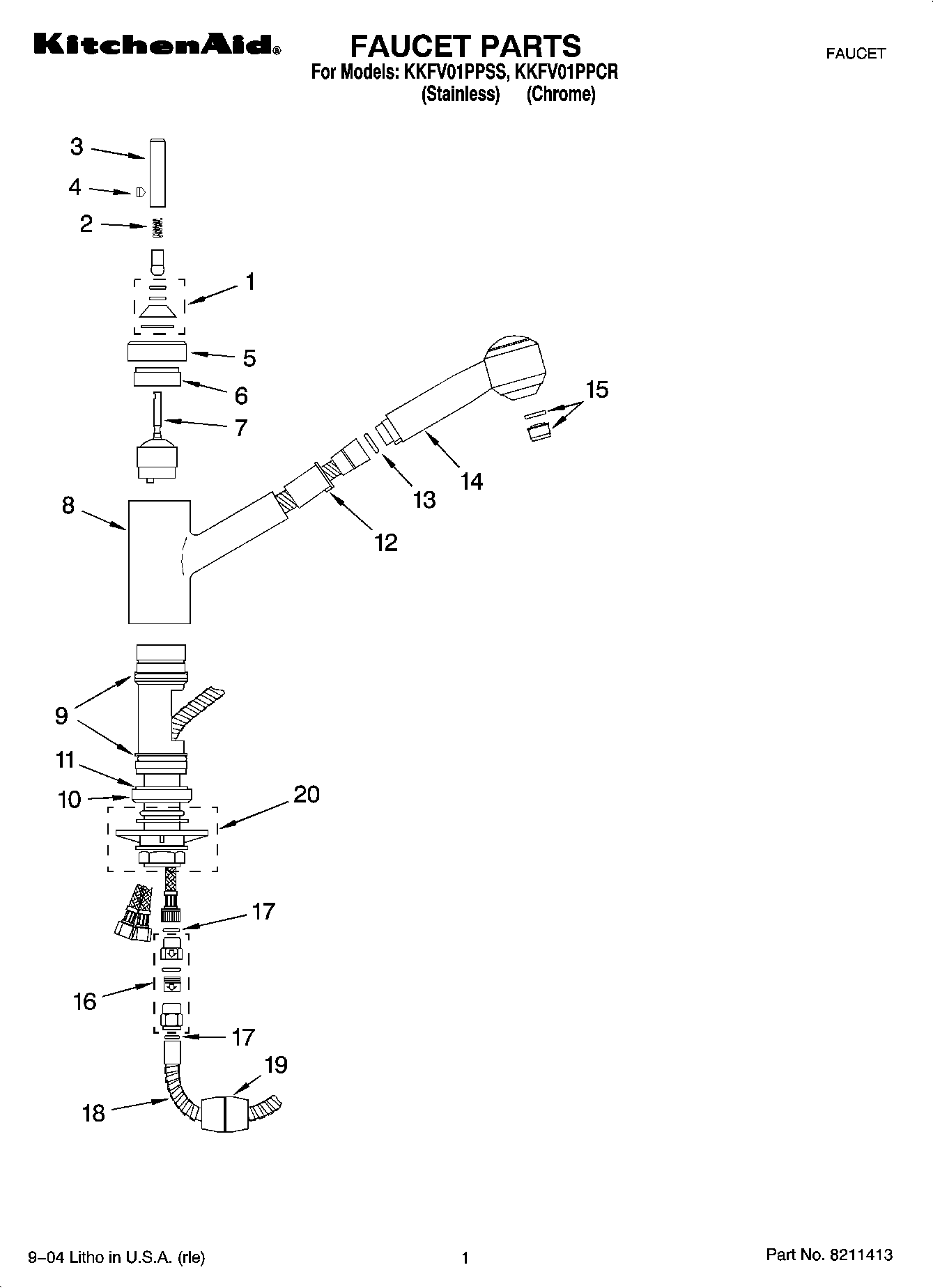

KKFV01PPCR 01 – FAUCET PARTS

Products

Position	Product
1	Lever, Base Assembly (Not Serviced)
2	Spring (Not Serviced)
3	Lever (Not Serviced)
4	Screw (Not Serviced)
5	Cap (Not Serviced)
6	Nut (Not Serviced)
7	Cartridge
8	Body (Not Serviced)
9	O-Ring (Not Serviced)
10	Base (Not Serviced)
11	Ring, Teflon (Not Serviced)
12	Insert (Not Serviced)
13	Screen
14	Spray Head Assembly (Chrome)
14	Spray Head Assembly (Stainless)
15	Aerator
16	Check Valve Assembly
17	Fiber
18	Hose
19	Weight
20	Mounting Assembly
