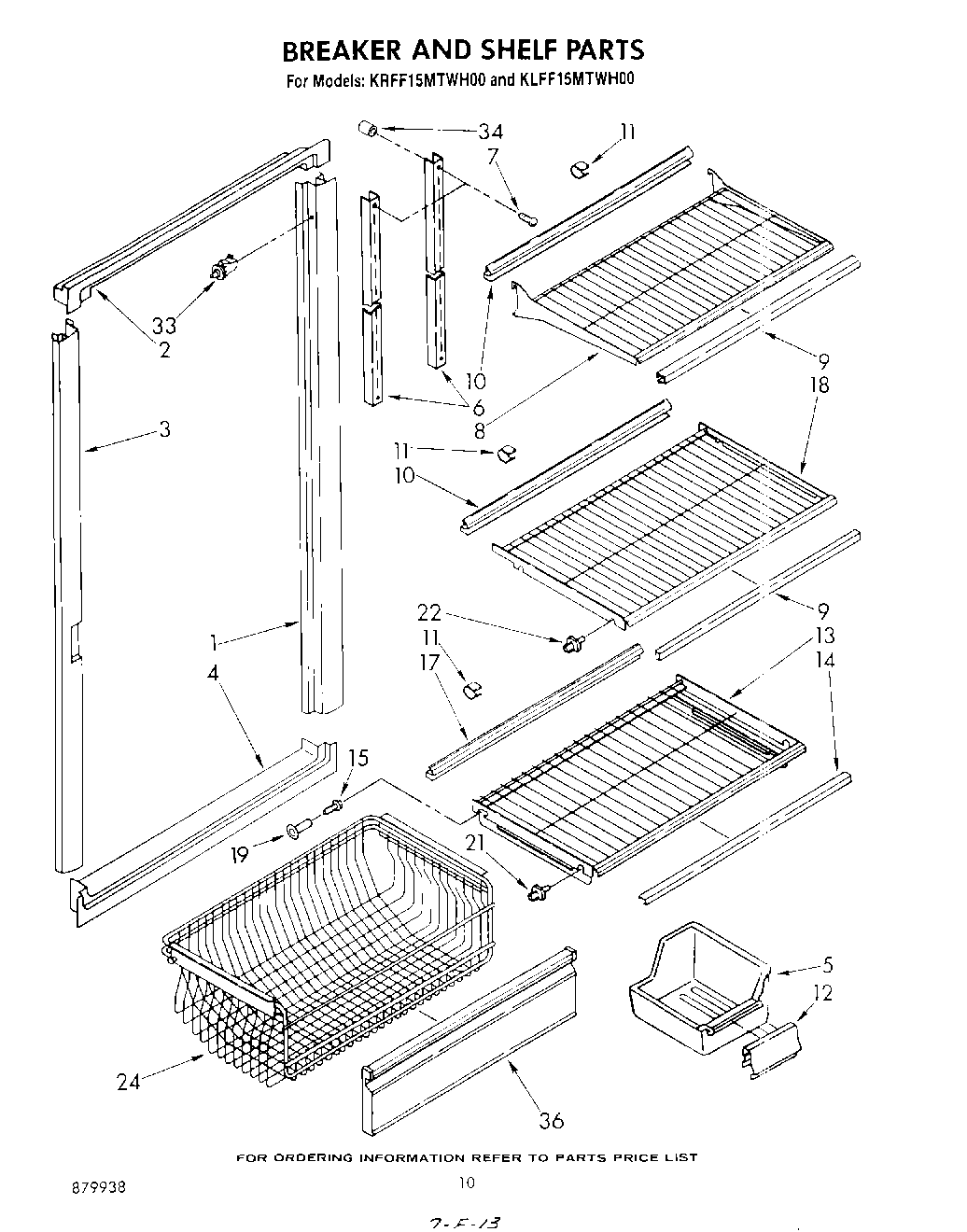

KLFF15MTAL00 06 – BREAKER AND SHELF

Products

Position	Product
1	Breaker, R.S.
1	Breaker, R.S.
2	Breaker, Top
3	Breaker, L.S.
3	Breaker Trim (L.S) (With Switch Hole)
4	Breaker, Refrigerator (Bottom)
5	Ice Cube Pan
6	Shelf Ladder (2)
7	Screw, 8 x 1-1/4 (3)
8	Shelf, Cantilever
9	Trim, Shelf Front
10	Reflector
11	Clip, Reflector
12	Trim, Ice Cube Pan
13	Shelf, Basket
14	Trim, Frame (2)
15	Screw, 8-15 x 1
17	Reflector, Shelf
18	Shelf, Fixed
19	Stud, Shelf
21	Stud, Shelf (3)
22	Stud, Fixed Shelf
24	Freezer, Basket
33	Switch, Light
34	Spacer Ground
36	Basket, Trim
