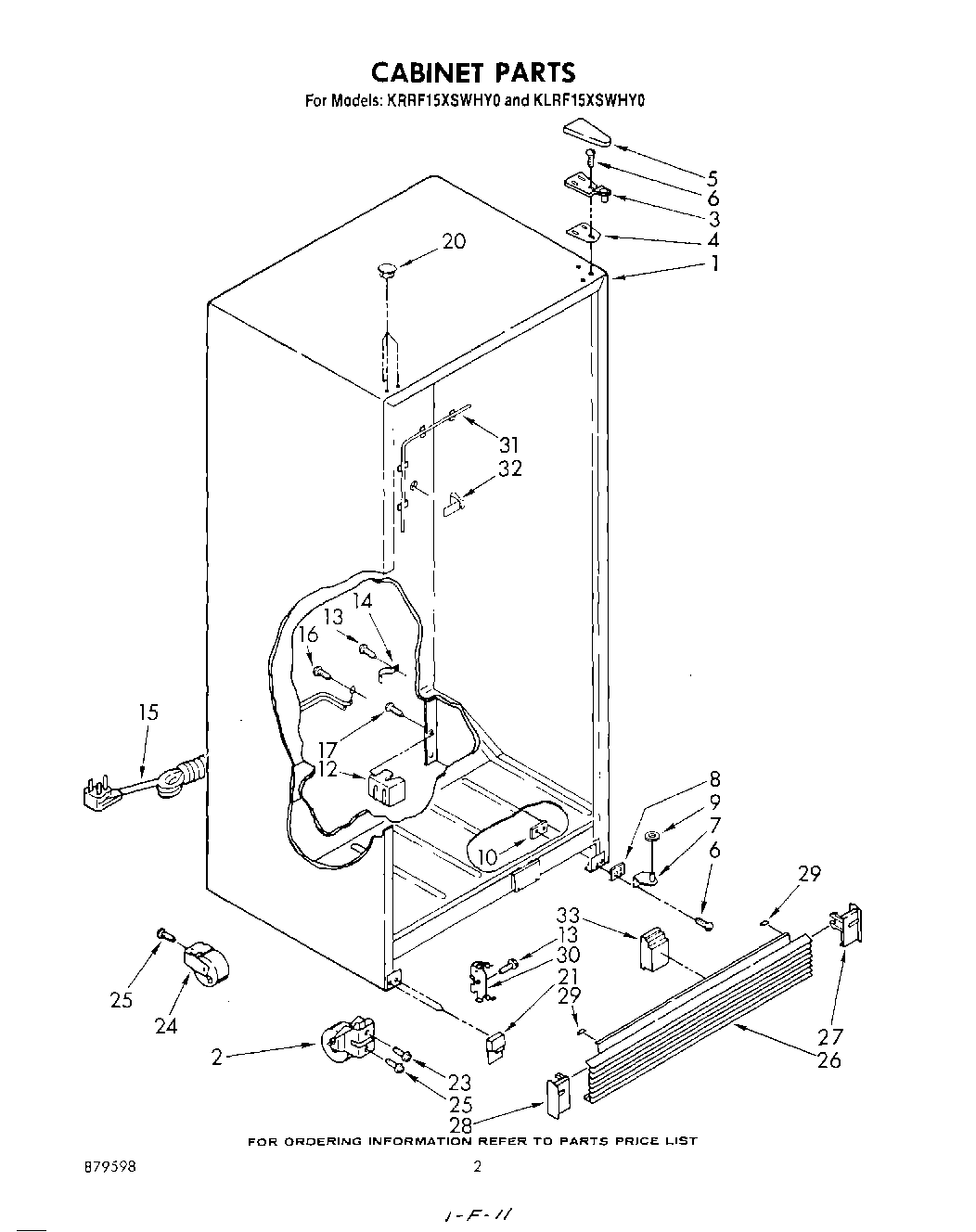

KLRF15XSWHY0 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (R.H)
2Roller, Front
3Hinge, Top
4WPL 836151
51119787 Whirlpool Refrigerator Hinge Cover
6Screw (Repair)
6WP999367 Whirlpool Refrigerator Screw
7Hinge (Bottom)
7WPL 836687
8WP487802 Whirlpool Refrigerator Washer
9WP487576 Whirlpool Washer
10Tap Plate
12WPL 549947
13W11624204 Whirlpool Screw
14549193 Whirlpool Refrigerator Power Clamp
15Cord, Service
16Screw, 8-32 x 3/8
17WP488729 Whirlpool Refrigerator Door Screw
20Hole Plug (2) (Almond)
20Hole Plug (2) (White)
21Filler, Grille
23Screw, 5/16-24 x 1
24WPW10250570 Whirlpool Refrigerator Cabinet Roller
25Screw, 1/4-28 x 1/2 (2)
26Grille
27Grille, End Cap (R.S)
28Grille, End Cap (L.S.)
29Bumper, Grille (2)
30WPL 989068
31Stile Heater
32WPL 935663
33Insert, Air Baffle Grille
