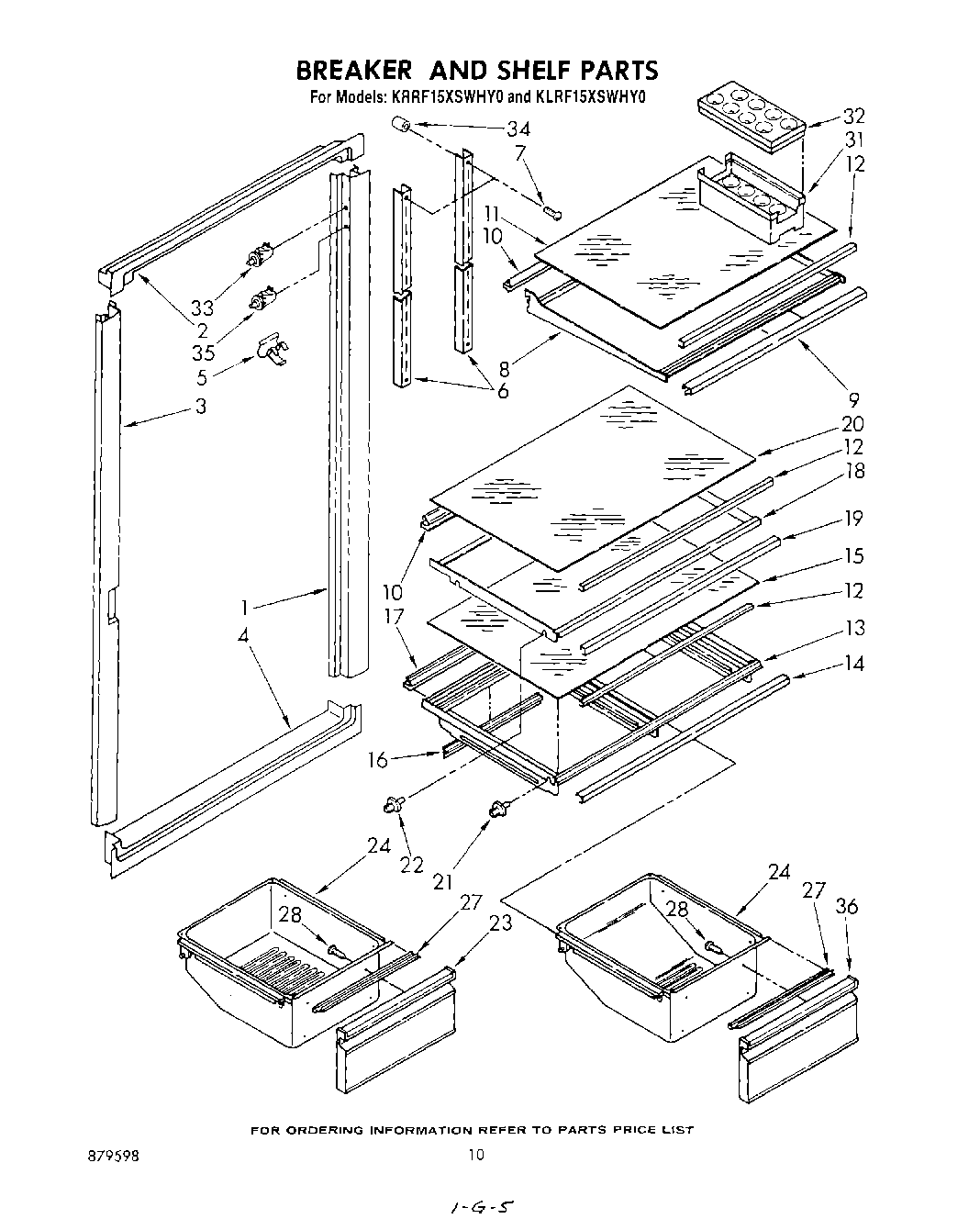

KLRF15XSWHY0 06 – BREAKER AND SHELF

Products

Position	Product
1	Breaker Trim (R.S)
1	Breaker, R.S.
2	Breaker, Top
3	Breaker Trim (L.S) (With Switch Holes)
3	Breaker, L.S.
4	Breaker, Refrigerator (Bottom)
5	Breaker, Trim Clip
6	Shelf Ladder (2)
7	Screw, 8 x 1-1/4 (3)
8	Shelf, Cantilever
10	Reflector, Glass Shelf
12	Shelf Gasket, Glass
13	Cover Frame (2)
14	Trim, Frame (2)
15	Glass, Cover (2)
16	Gasket, Rear (2)
17	Reflector, Glass Shelf (2)
18	Shelf, Fixed
19	Trim, Shelf Front
20	Glass, Cantilever Shelf
21	Stud, Shelf (3)
22	Stud, Fixed Shelf
23	Front Pan, Crisper
24	Pan (4)
27	Front Pan, Gasket (4)
28	WP488729 Whirlpool Refrigerator Door Screw
28	Screw (Repair)
31	Egg Container, Bottom
32	Egg Container, Top
33	Switch, Light
34	Spacer Ground
35	Fan Motor, Switch
36	Front, Meat Pan
